WDR-100

Cod EAN: 4007754429725

PA ceiling speaker 100 V transmission technology 6.6 cm full-range speaker Design similar to established flush-mount halogen lamps Quick-mounting device Metal housing with metal protective grille 3 power taps via pressure clamps Manufacturer info...

Citeste mai mult

Intreaba despre produs
Cumpara acum

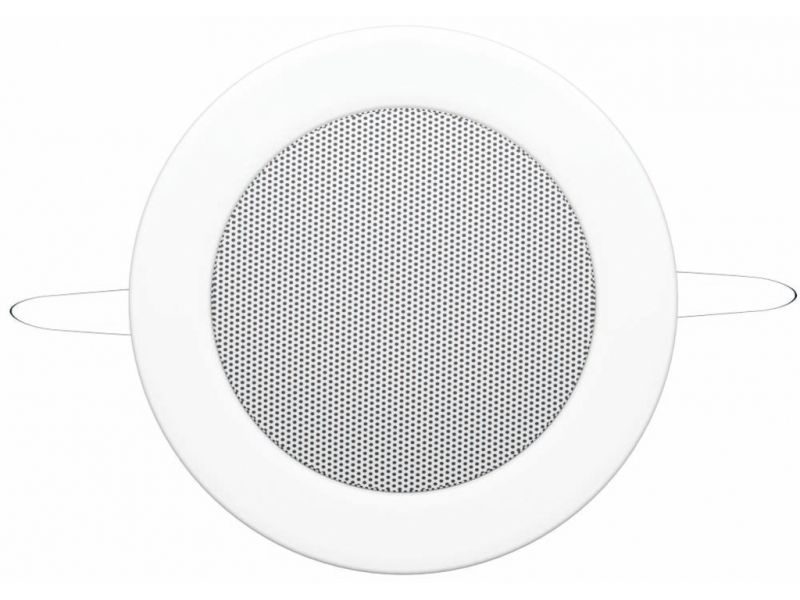

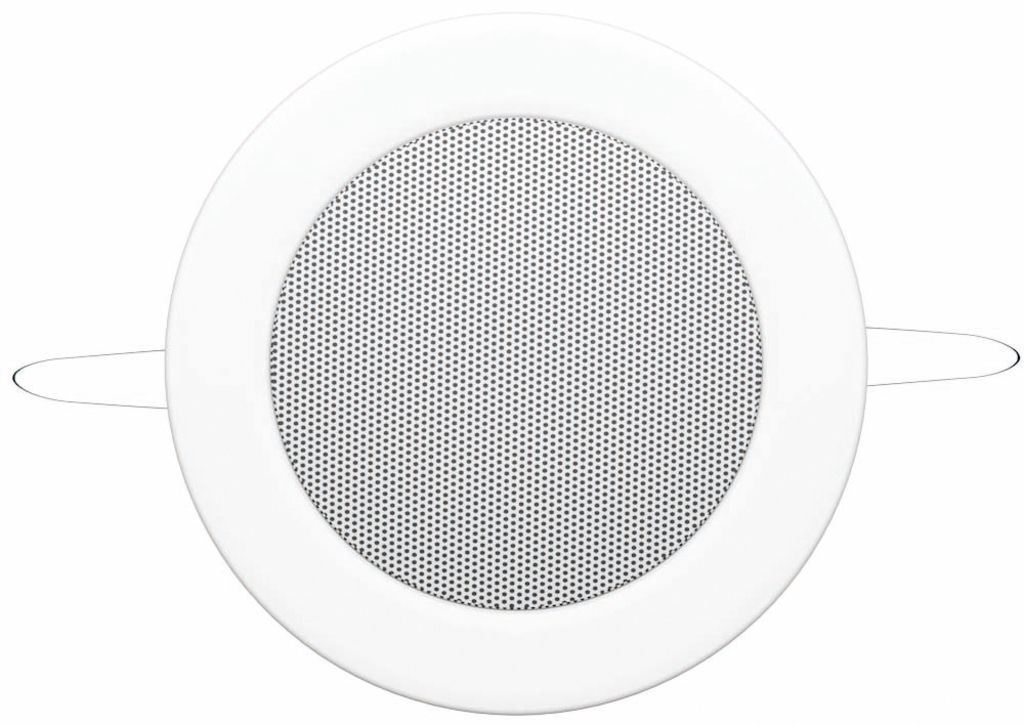

WDR-100

PA ceiling speaker
  • 100 V transmission technology
  • 6.6 cm full-range speaker
  • Design similar to established flush-mount halogen lamps
  • Quick-mounting device
  • Metal housing with metal protective grille
  • 3 power taps via pressure clamps
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Transmission technology 100 V
Frequency range 80-18,500 Hz
Power rating (RMS) 6/3/1.5 W
SPL 90 dB/W/m
Max. rated SPL 98 dB
Radiation angle, horizontal 180°
Radiation angle, vertical 180°
Mounting cutout Ø 74-85 mm
Dimensions Ø 101 mm x 70 mm
Outside diameter Ø 101 mm
Width Ø 101 mm
Height Ø 101 mm
Depth 70 mm
Colour white, RAL 9010
Weight 0.5 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.11 x 0.12 x 0.7 m
Gross weight 0.6 kg
Net weight 0.5 kg

Fisiere de descarcat

Fisa produsului WDR-100
