ZM-100
Cod EAN: 4007754183399
Impedance meter, for measuring the impedance (Z) of individual speakers or speaker lines. Measurement with pulsed 1 kHz signal Processor-controlled with independent selection of the most favourable measuring range Power received at the mains of the...

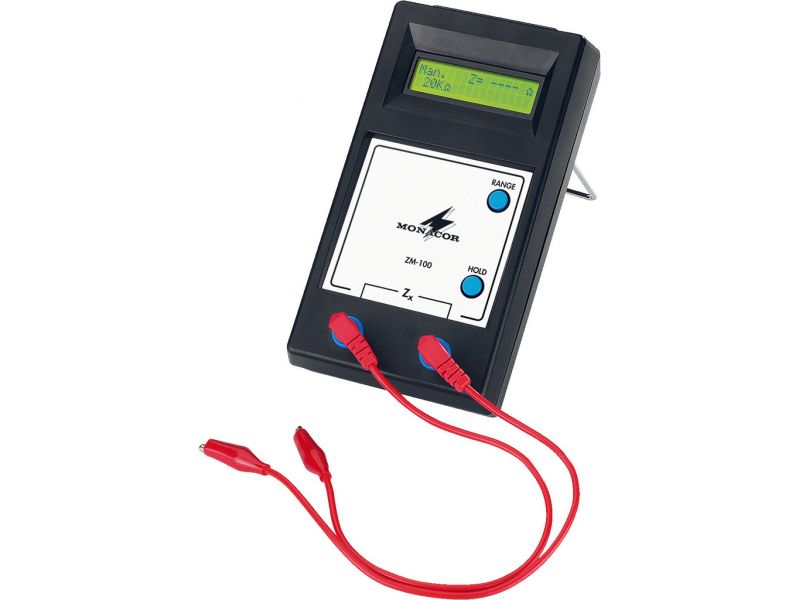

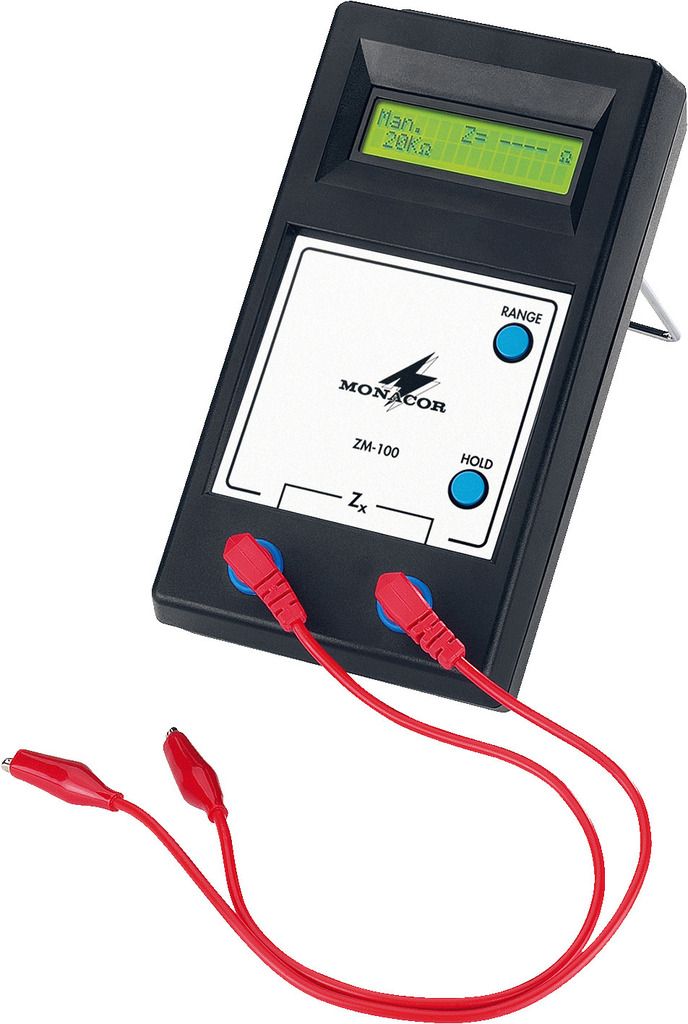

ZM-100
Impedance meter,
for measuring the impedance (Z) of individual speakers or speaker lines.
- Measurement with pulsed 1 kHz signal
- Processor-controlled with independent selection of the most favourable measuring range
- Power received at the mains of the 100 V speaker is calculated and displayed
- Range button and hold button
- Measuring ranges: 200 Ω/2 kΩ/20 kΩ/200 kΩ
- Power supply via 4 x 1.5 V battery AA size
- Dimensions: 100 x 177 x 50 mm
- Weight: 570 g
- Supplied with protective bag and pair of test leads
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Safety Notes and Warning Messages
During operation, there may be a hazard of contact with a dangerous voltage at the speaker terminals of an amplifier.
Only perform measurements on speakers or speaker lines which are disconnected from the amplifier. If an amplifier is connected, this will result in measurement errors and may damage the meter. Switch off the amplifier before disconnecting the speakers from the amplifier.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Only perform measurements on speakers or speaker lines which are disconnected from the amplifier. If an amplifier is connected, this will result in measurement errors and may damage the meter. Switch off the amplifier before disconnecting the speakers from the amplifier.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Description | impedance meter |
| Nominal value | impedance (Z) |
| Type | measuring ranges: 200 Ω/2k Ω/20 kΩ/200 kΩ |
| Colour | black |
| Suitable for | individual speakers, speaker lines |
| Power supply | 4 x 1.5 V batt. AA size |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 100 x 177 x 50 mm |
| Weight | 422 g |
| Other features | measurement with pulsed 1 kHz signal |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.15 x 0.085 x 0.225 m |
| Gross weight | 0.545 kg |
| Net weight | 0.422 kg |
