ATT-312PEU

Cod EAN: 4007754179842

Wall-mounted PA volume control with 24 V emergency priority relay Power rating: 12 W Attenuation in 10 steps, position 0 is OFF For 100 V transmission technology Snow-white plastic front panel and knob Flush mounting into standard 65 mm wall sockets...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ATT-312PEU

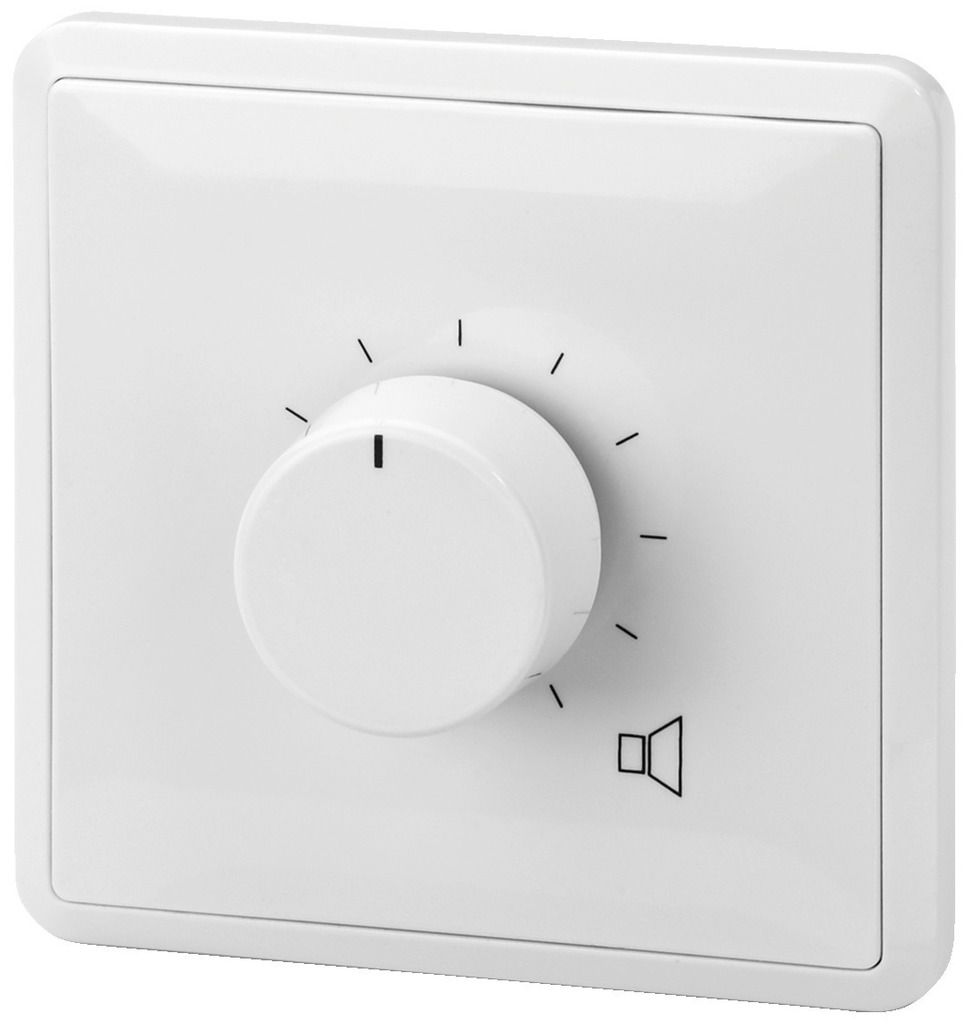

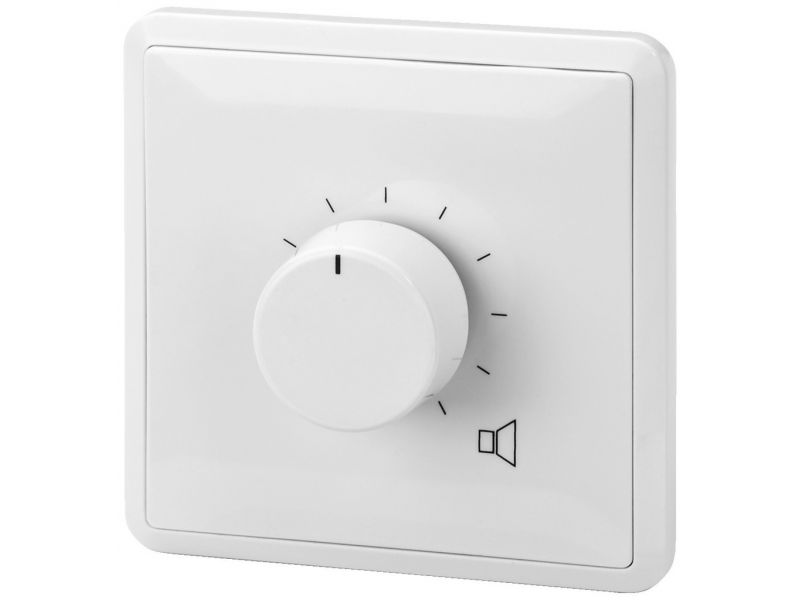

Wall-mounted PA volume control with 24 V emergency priority relay
  • Power rating: 12 W
  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V transmission technology
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65 mm wall sockets
  • Surface mounting with matching housing ATT-300, available at option

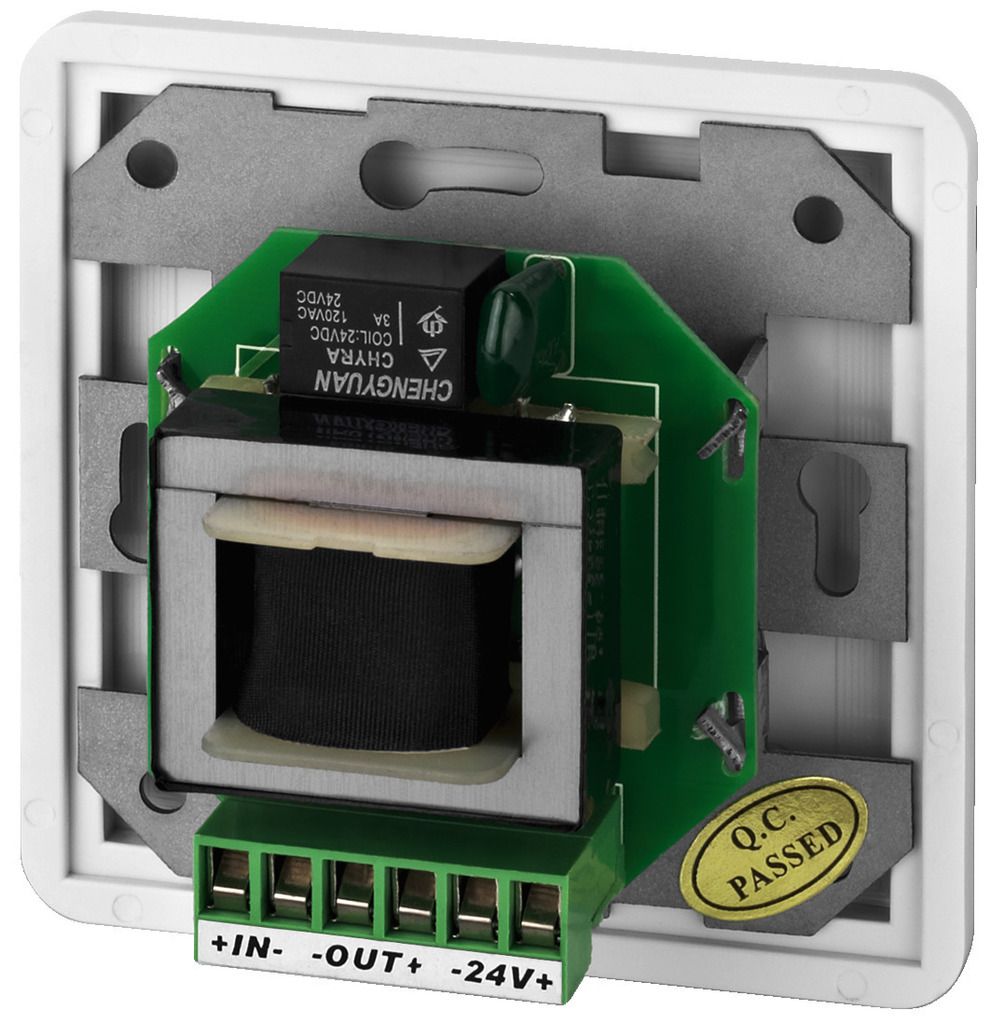

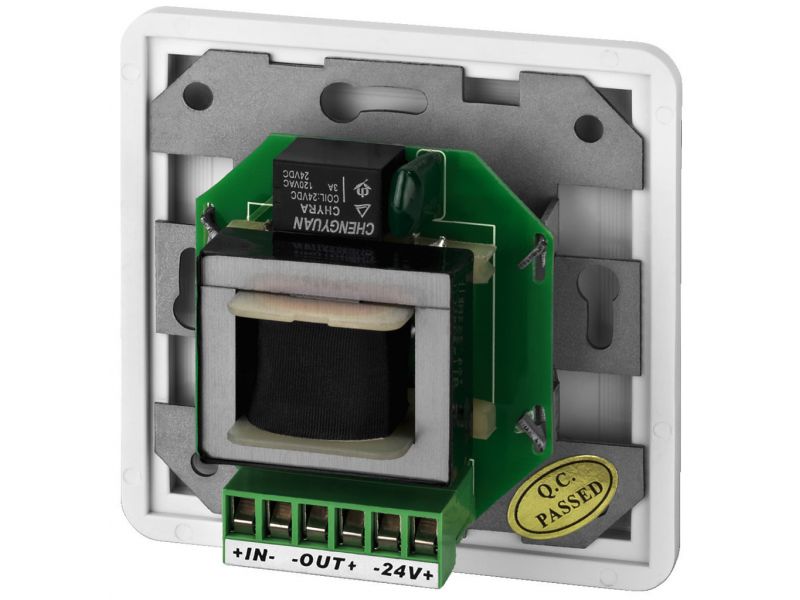

  • Plug-in screw terminal
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description wall-mounted PA volume control
Frequency range 50-18,000 Hz
Power rating 12 W
Priority facility yes
Dimensions 80 x 80 x 67 mm
Mounting depth 45 mm
Weight 168 g
Surface-mounted housing ATT-300

Fisiere de descarcat

Fisa produsului ATT-312PEU konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
