DT-284

Cod EAN: 4007754171068

The Tweeter for Perfect Car Hi-fi Applications: DT-284 “The Dome”. This tweeter provides everything expected from a top class tweeter: a sensationally linear frequency response, high level reserves, low crossover frequency, compact size and a distinc...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DT-284

The Tweeter for Perfect Car Hi-fi Applications:

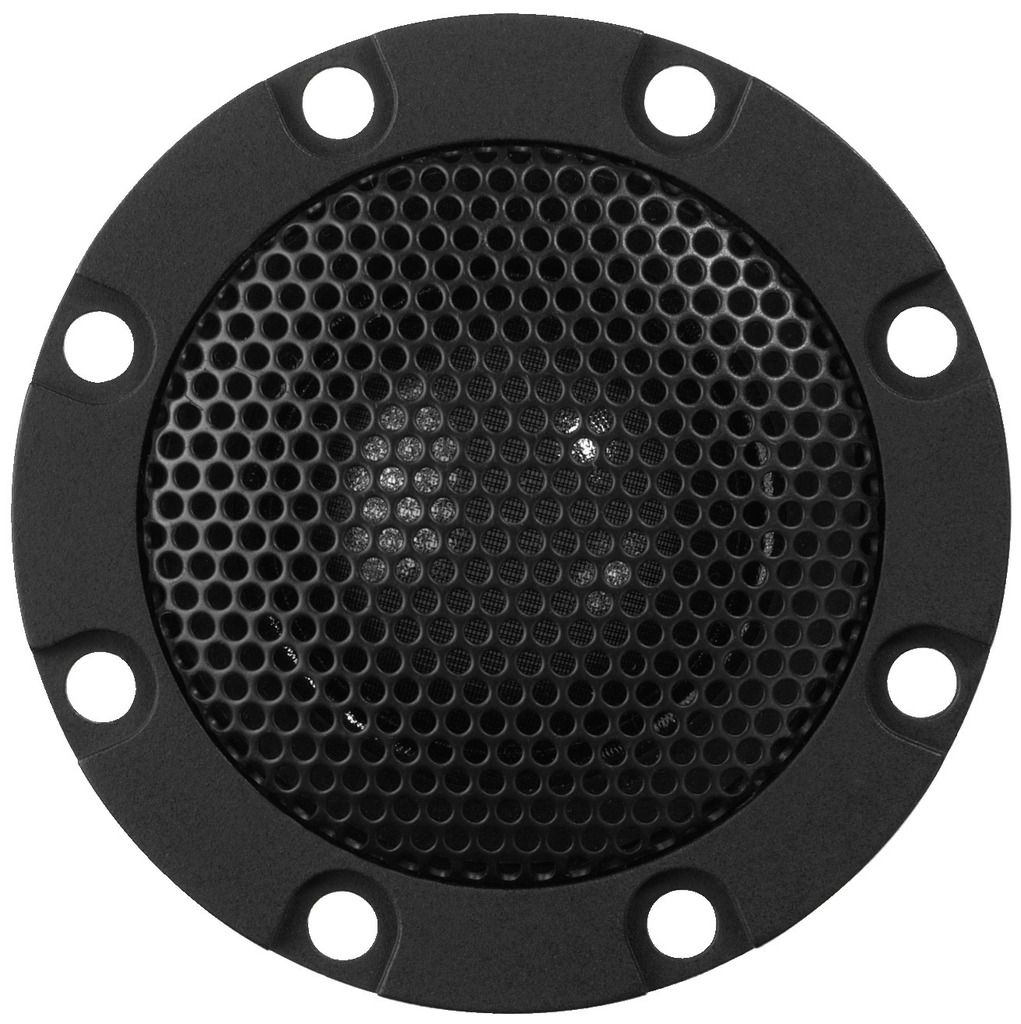

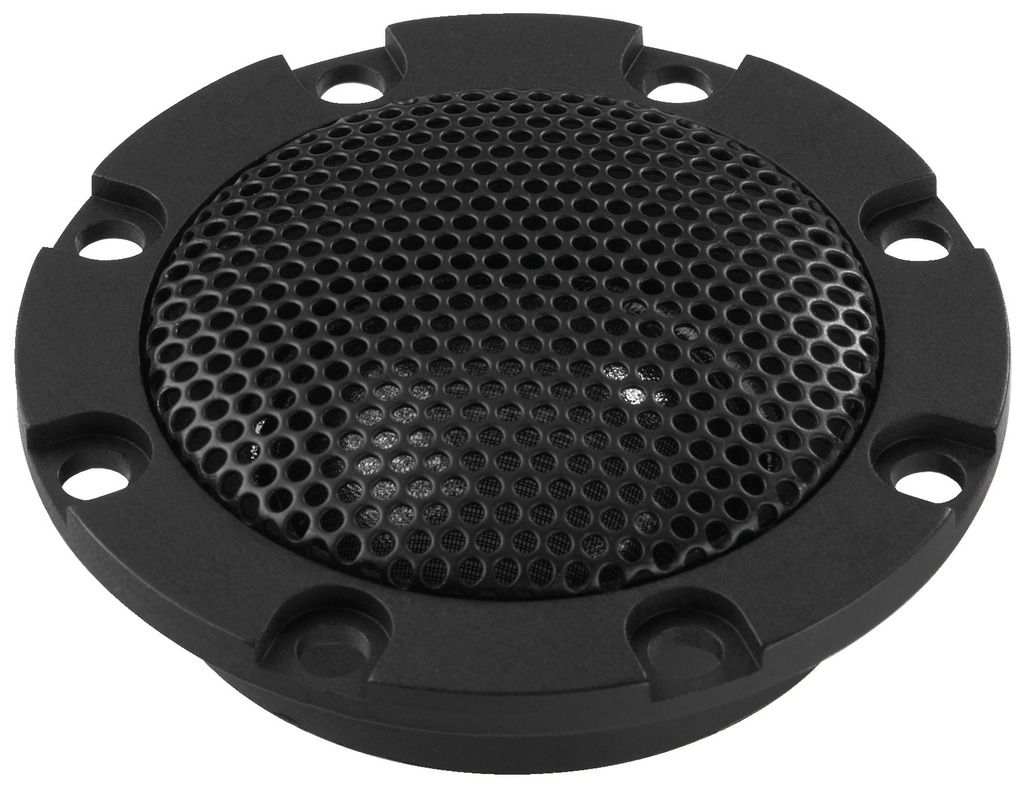

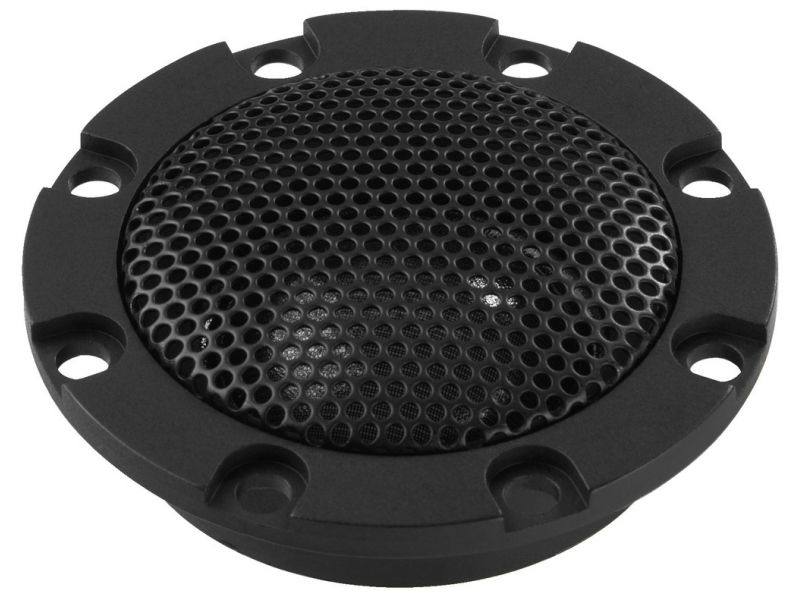

DT-284 “The Dome”. This tweeter provides everything expected from a top class tweeter: a sensationally linear frequency response, high level reserves, low crossover frequency, compact size and a distinct and appealing design!

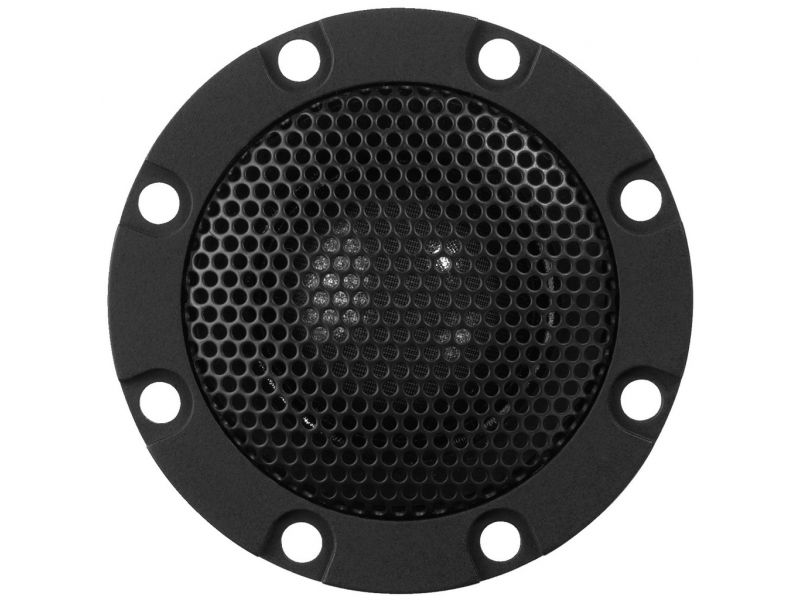

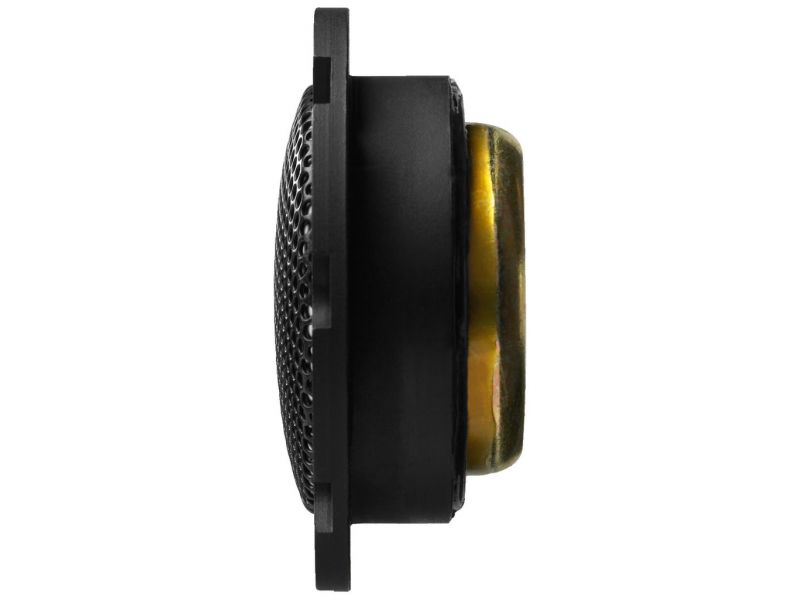

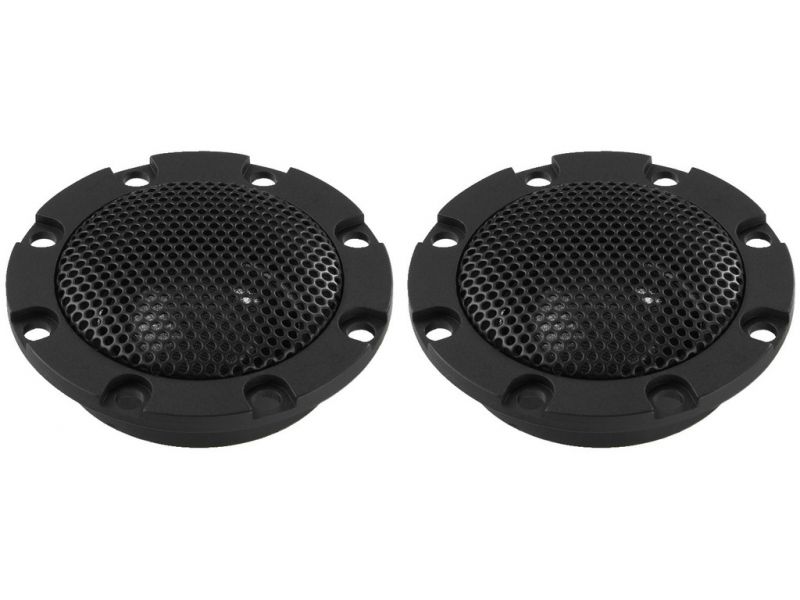

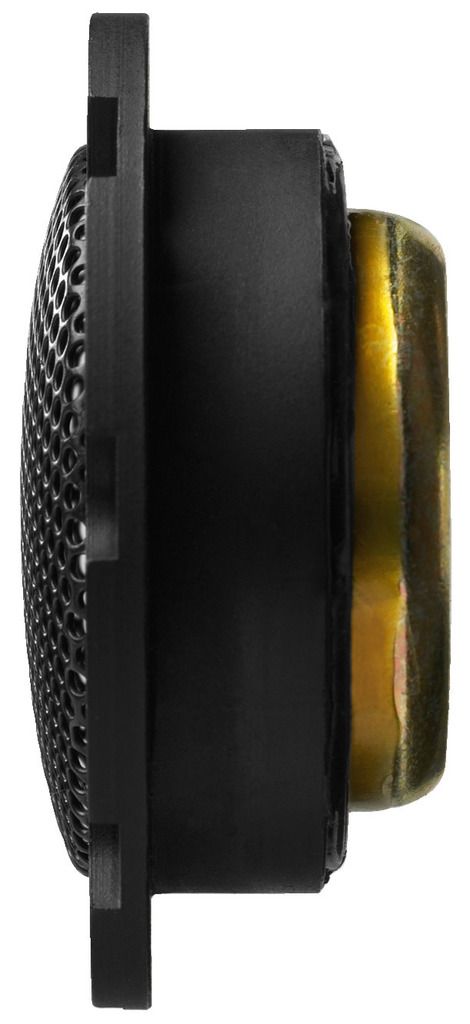

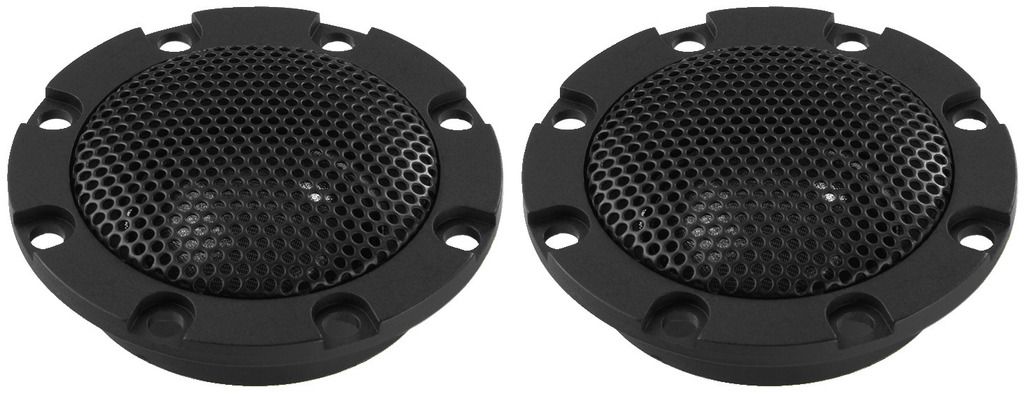

Pair of dome tweeters, 60 W, 4 Ω
  • 28 mm silk cone
  • Aluminium voice coil
  • Neodymium magnet

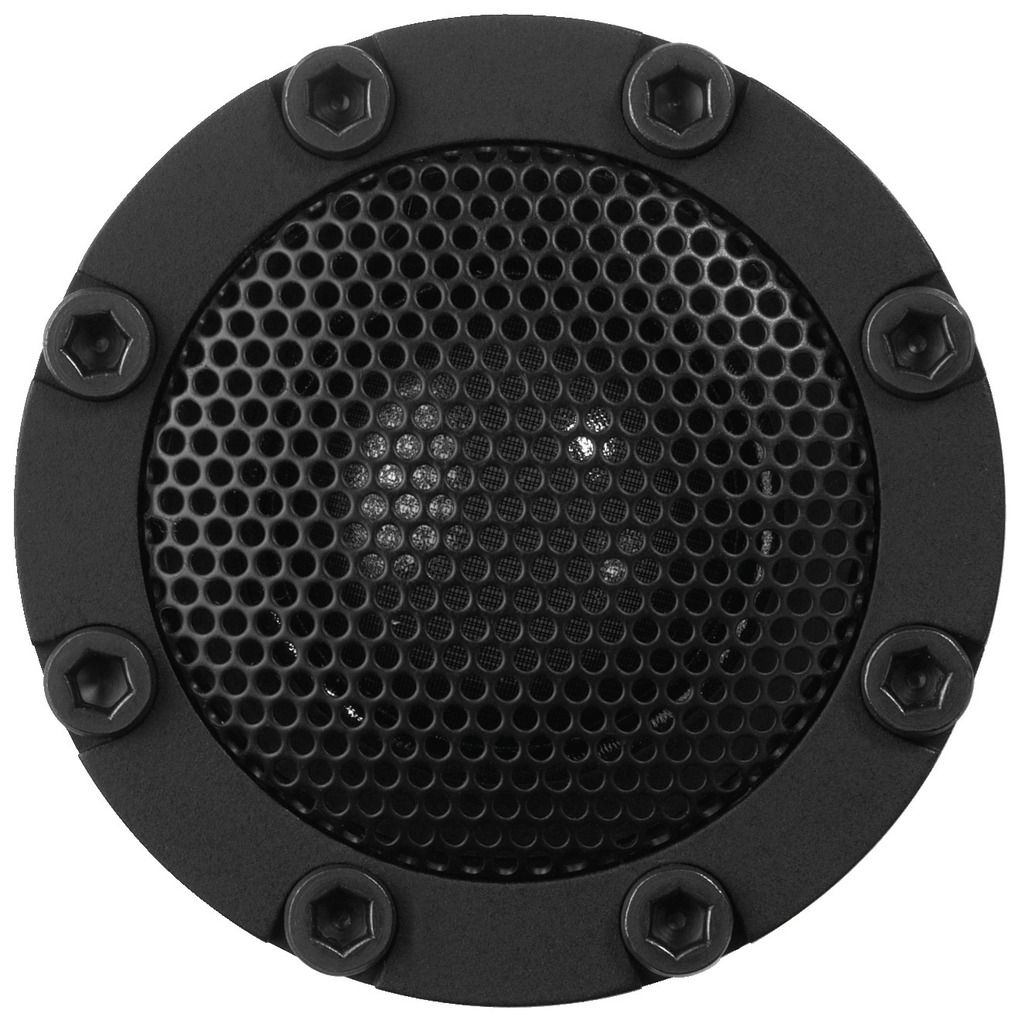

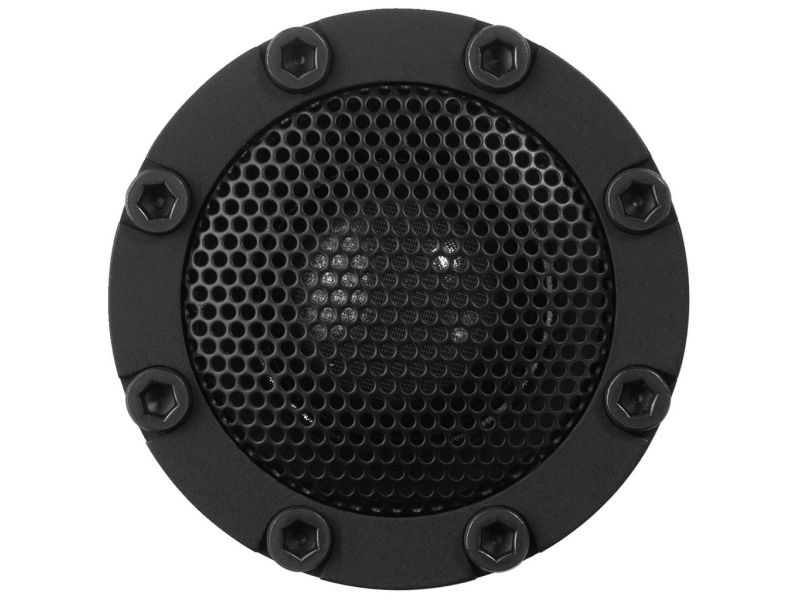

  • High-quality ABS housing with 8-hole screw connection
  • Perfect sound of extra low distortion
  • Highest level stability
  • Exceptionally long excursion

A crossover network is required for operation! Ideal: CDN-2X
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

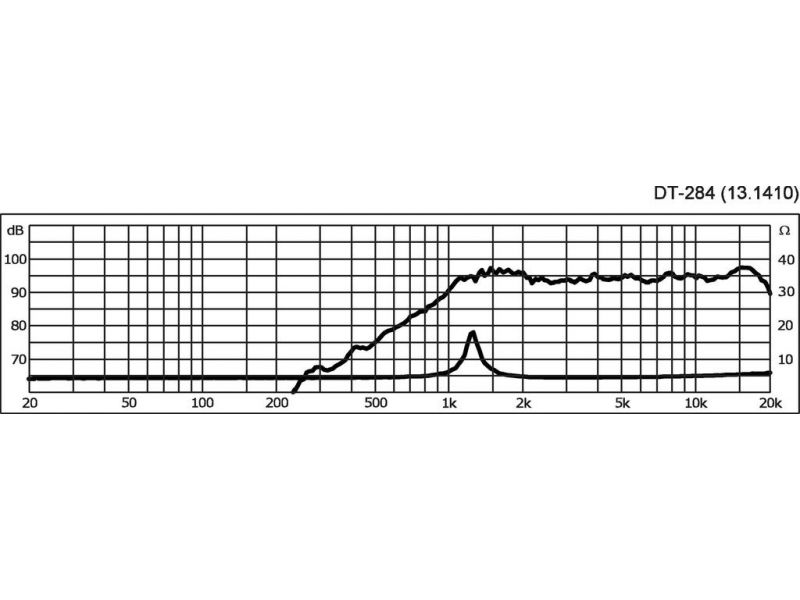

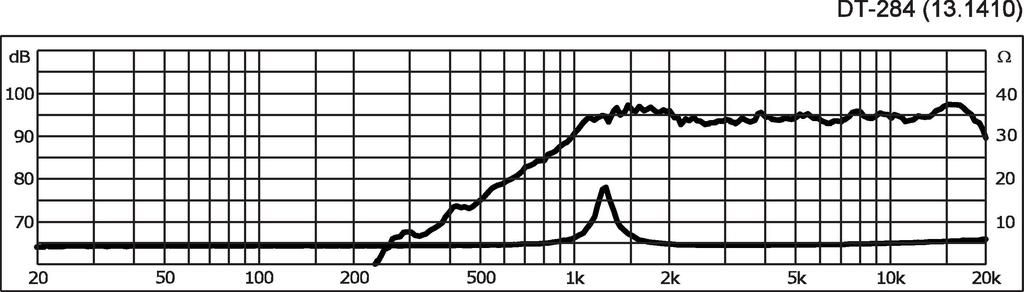

Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,300 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,000 Hz
Power rating (RMS) 60 W
Peak music power output (MAX) 100 W
SPL 91 dB/W/m

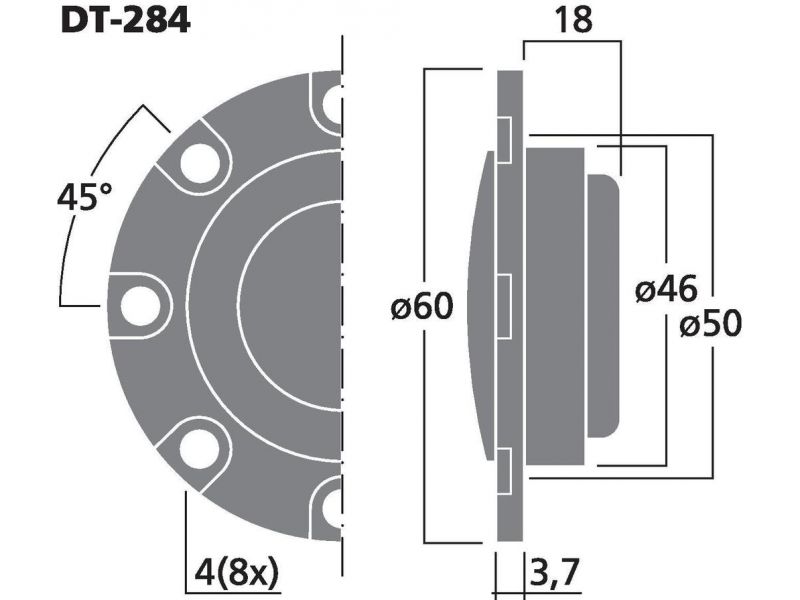

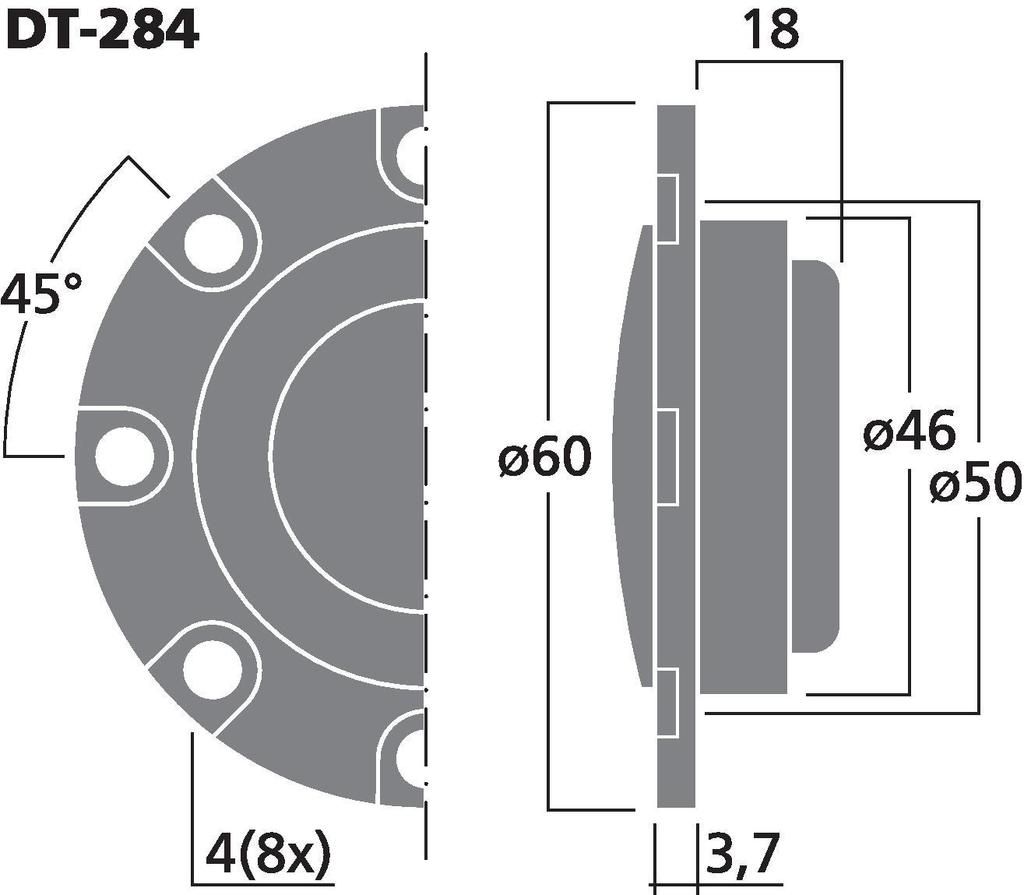

Voice coil diameter Ø 28 mm
Magnet diameter Ø 46 mm
Mounting cutout Ø 50 mm
Mounting depth 18 mm
Dimensions Ø 60 mm x 21.7 mm
Outside diameter Ø 60 mm
Width Ø 60 mm
Height Ø 60 mm
Depth 21.7 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.18 kg
Packing unit 2
Type of speaker 28 mm
Packaging dimensions (W x H x L) 0.085 x 0.045 x 0.155 m
Gross weight 0.225 kg
Net weight 0.18 kg

Fisiere de descarcat

Fisa produsului DT-284 konformitaetserklaerung-ce konformitaetserklaerung-ukca
