MSH-116/4
Cod EAN: 4007754073683
Hi-fi midrange speaker, 40 W, 4 Ω High-end technology Coated special cone Dust cap with high damping Extra flat basket (no need for recessed installation) Best possible linearity Perfect mass-drive ratio with a wide bandwidth For a sound of the extra...

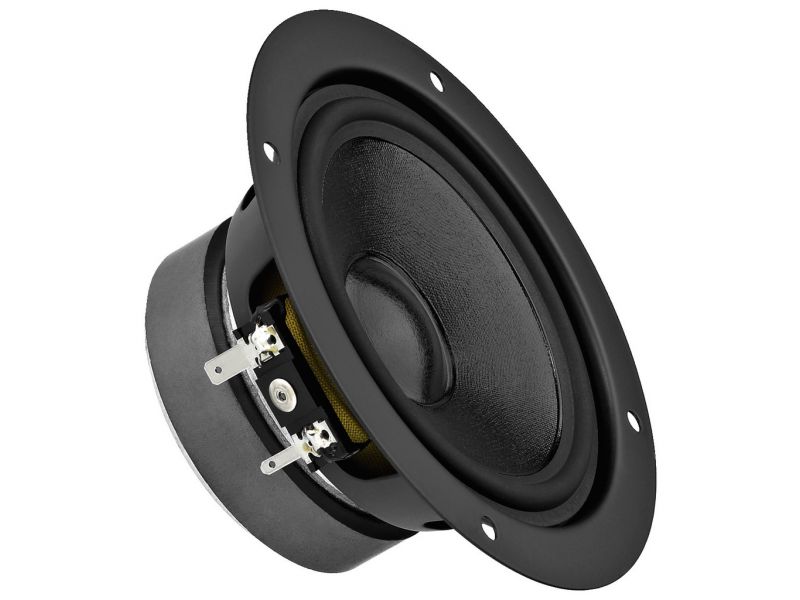

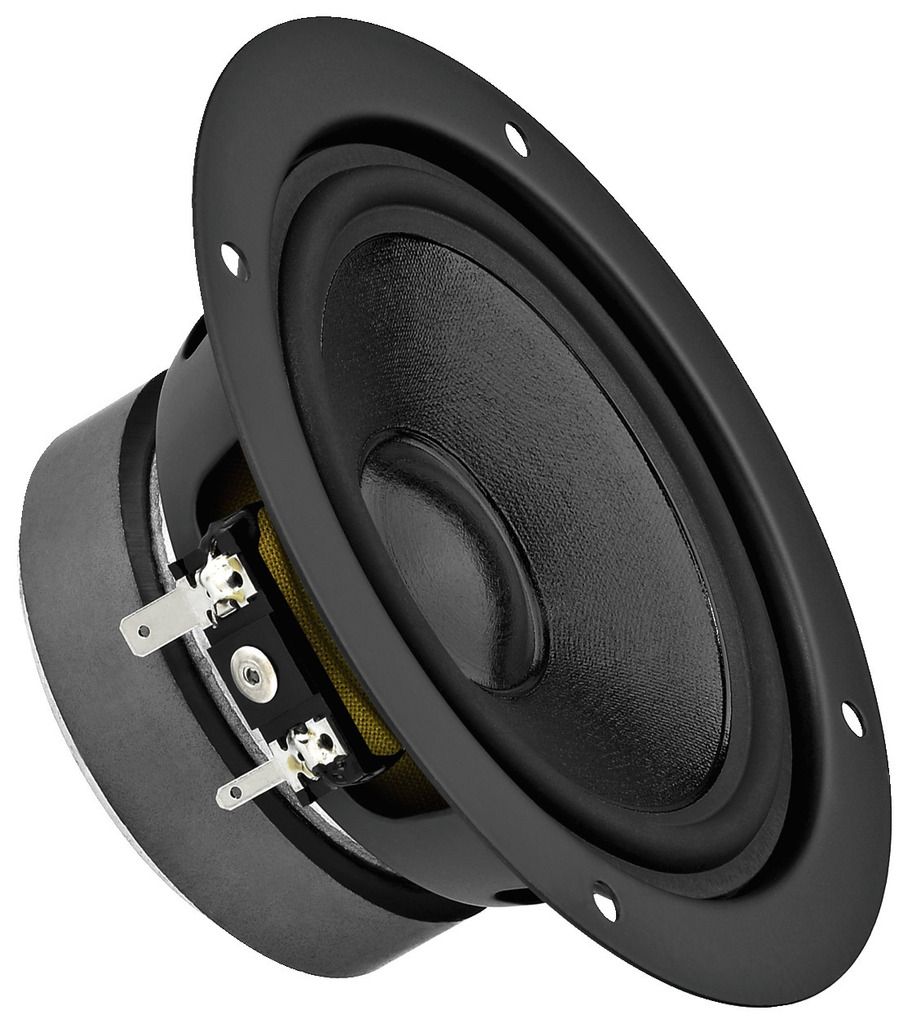

MSH-116/4
Hi-fi midrange speaker, 40 W, 4 Ω
- High-end technology
- Coated special cone
- Dust cap with high damping
- Extra flat basket (no need for recessed installation)
- Best possible linearity
- Perfect mass-drive ratio with a wide bandwidth
- For a sound of the extra class
HOBBY HiFi 03/2015
“The MSH-116/4 impresses with a perfect sound, a surprisingly wide bandwidth and a high efficiency - a really great midrange speaker.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 4 Ω |
| Transmission technology | cable |

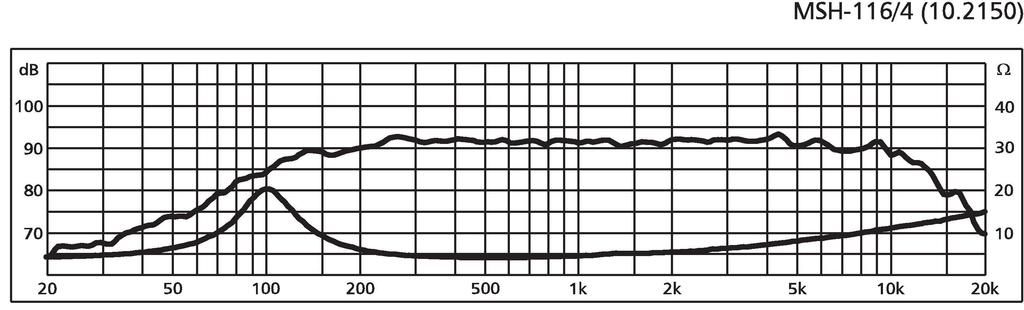

| Frequency range | fx-10,000 Hz |
| Resonant frequency (fs) | 95 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 300/5,000 Hz |
| Power rating (RMS) | 40 W |
| Peak music power output (MAX) | 120 W |
| SPL | 91 dB/W/m |
| Suspension compl. (Cms) | 0.62 mm/N |
| Moving mass (Mms) | 4.6 g |
| Mech. Q factor (Qms) | 2.38 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.40 |
| Equivalent volume (Vas) | 2.7 l |
| DC resistance (Re) | 3.2 Ω |
| Force factor (BxL) | 4.30 Tm |
| Voice coil induct. (Le) | 0.18 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 1 mm |
| Eff. cone area (Sd) | 55 cm2 |
| Magnet weight | 240 g |
| Magnet diameter | Ø 72 mm |

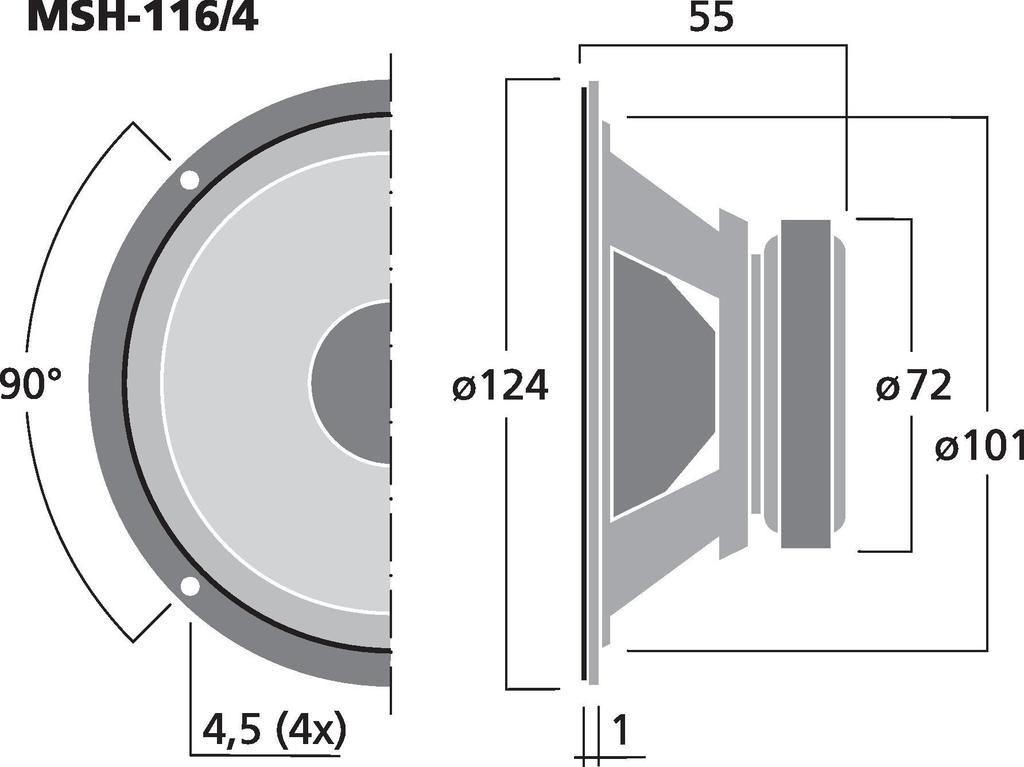

| Mounting cutout | Ø 101 mm |
| Mounting depth | 54 mm |
| Mounting hole diameter | Ø 112 mm |
| Hole spacing X-axis | 79 mm |
| Hole spacing Y-axis | 79 mm |
| Dimensions | Ø 124 mm x 55 mm |
| Outside diameter | Ø 124 mm |
| Width | Ø 124 mm |
| Height | Ø 124 mm |
| Depth | 55 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.56 kg |
| Packing unit | 1 |
| Type of speaker | 4" |
| Packaging dimensions (W x H x L) | 0.13 x 0.09 x 0.13 m |
| Gross weight | 0.66 kg |
| Net weight | 0.56 kg |
