DTM-104/8

Cod EAN: 4007754220957

Hi-fi dome tweeters, 45 W, 8 Ω (/8) and 4 Ω (/4) Textile dome tweeter with Kapton voice coil former Excellent radiation pattern due to waveguide Very well-suited as a replacement for high-quality hi-fi speakers Klang+Ton 01/2013 “What a great i...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DTM-104/8

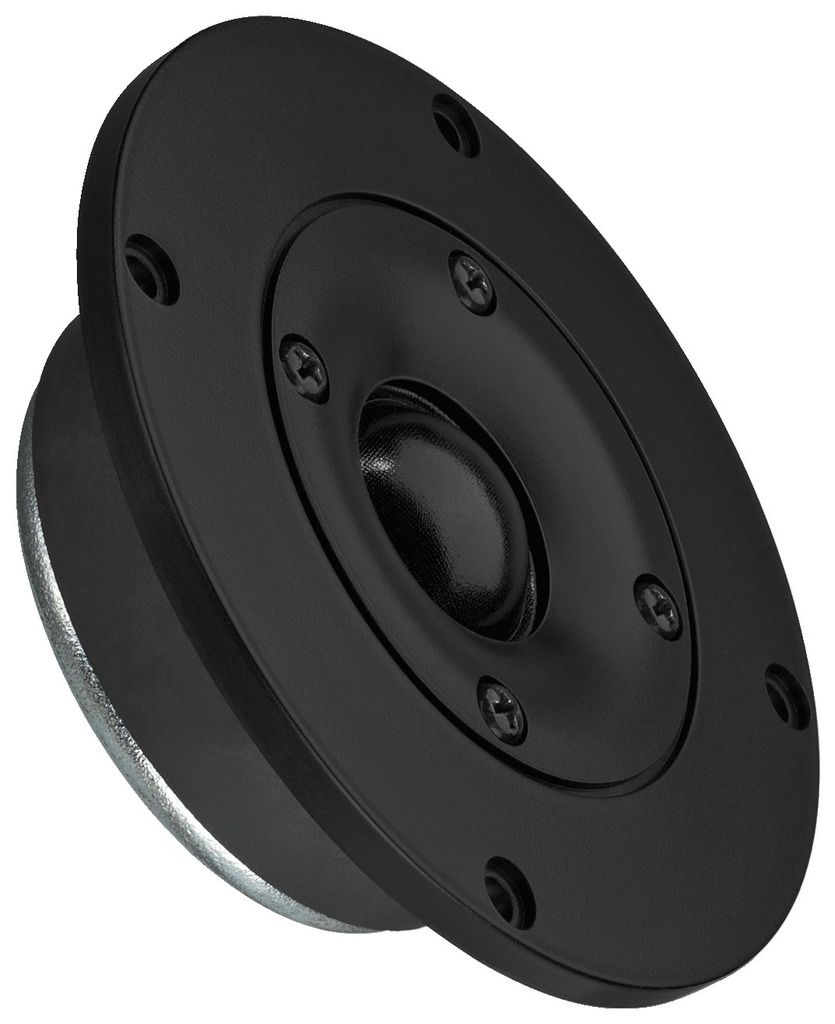

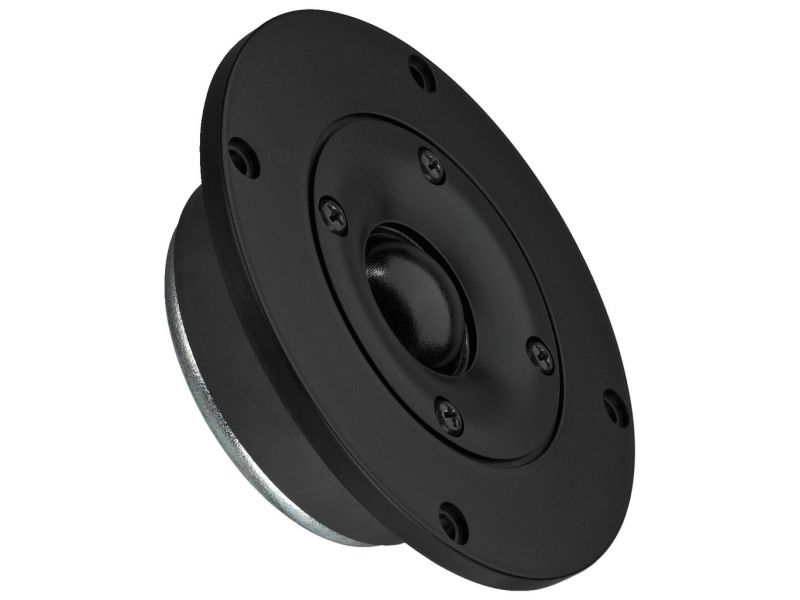

Hi-fi dome tweeters, 45 W, 8 Ω (/8) and 4 Ω (/4)
  • Textile dome tweeter with Kapton voice coil former
  • Excellent radiation pattern due to waveguide
  • Very well-suited as a replacement for high-quality hi-fi speakers
Klang+Ton 01/2013

“What a great idea. The Cheap Trick 264 (with SPM-165/8 & DTM-104/8) wants to show that it is possible to actually provide great music at an attractive price ... and with any kind of music programme. It provides a reproduction of a comprehensive musical spectrum which is always a pleasure to listen to. With reliable material and a little care during assembly, you already get an all-round speaker which is absolutely suitable for practical operation.”

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

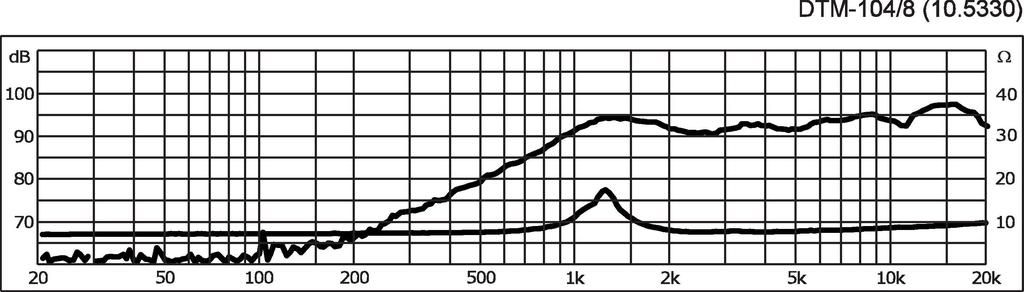

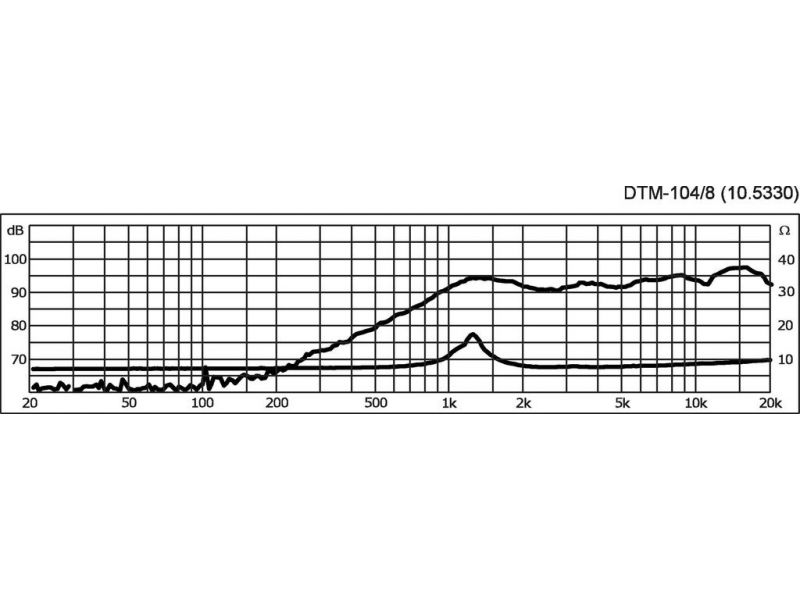

Frequency range fx-19,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 45 W
Peak music power output (MAX) 100 W
SPL 92 dB/W/m
Voice coil diameter Ø 25 mm

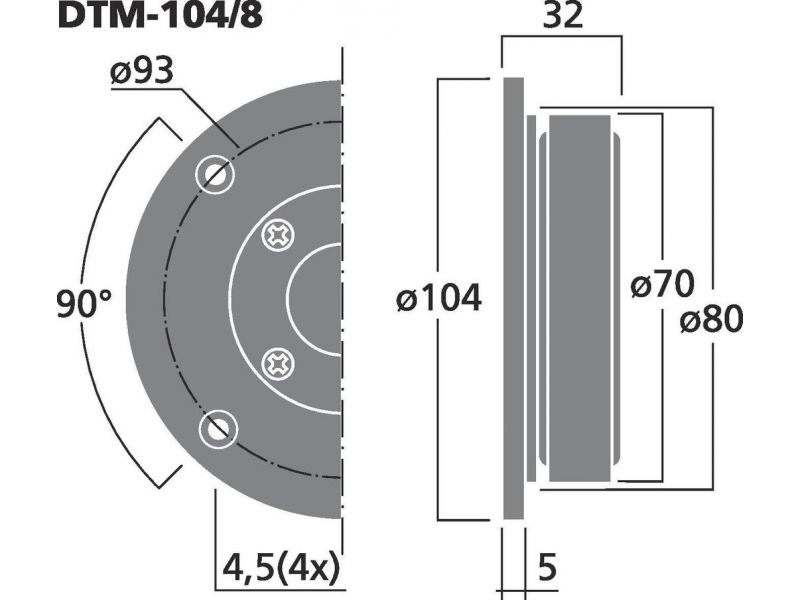

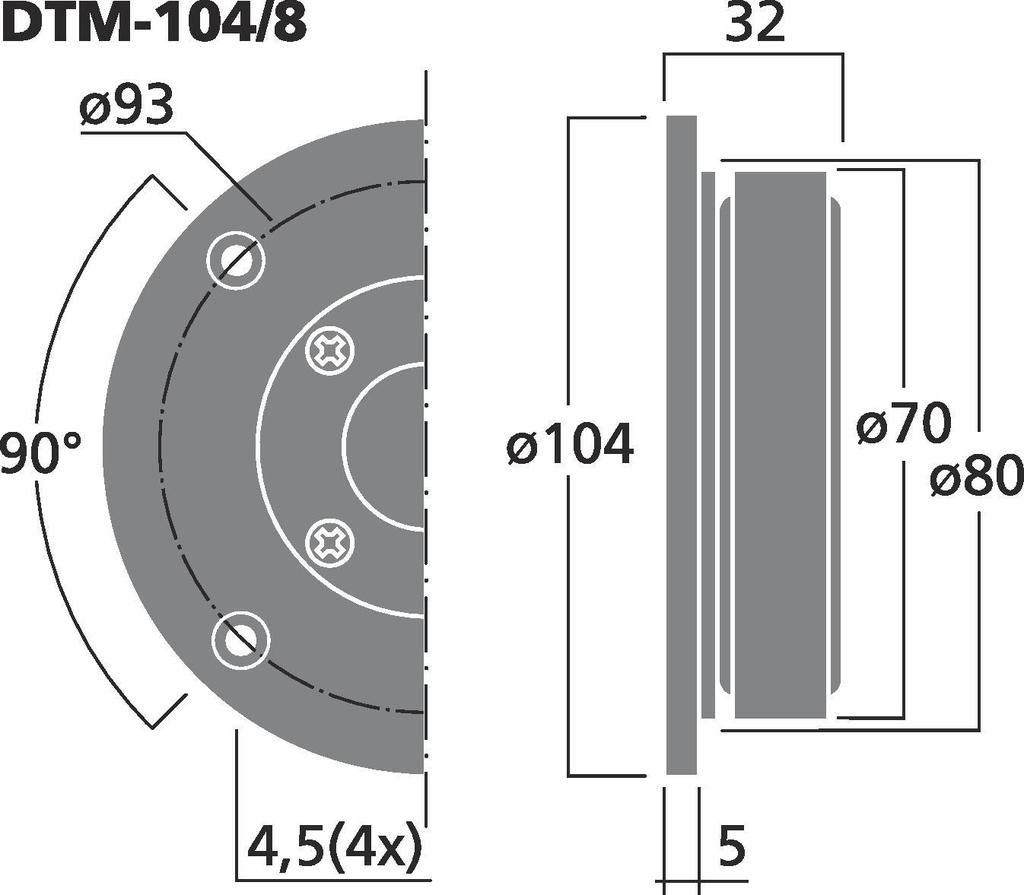

Magnet diameter Ø 70 mm
Mounting cutout Ø 80 mm
Mounting depth 29 mm
Dimensions Ø 104 x 32 mm
Outside diameter Ø 104 mm
Width Ø 104 mm
Height Ø 104 mm
Depth 32 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.54 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.11 x 0.043 x 0.11 m
Gross weight 0.56 kg
Net weight 0.535 kg

Fisiere de descarcat

Fisa produsului DTM-104/8 konformitaetserklaerung-ce konformitaetserklaerung-ukca
