EDL-118TW

Cod EAN: 4007754266443

PA ceiling speaker, with integrated tweeter. 100 V transmission technology 20 cm (8") 2-way coaxial speaker Metal housing with protective speaker grille Power taps: 15/10/6/3 W Quick-mounting facility with spring clips Connection via spring-loaded...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-118TW

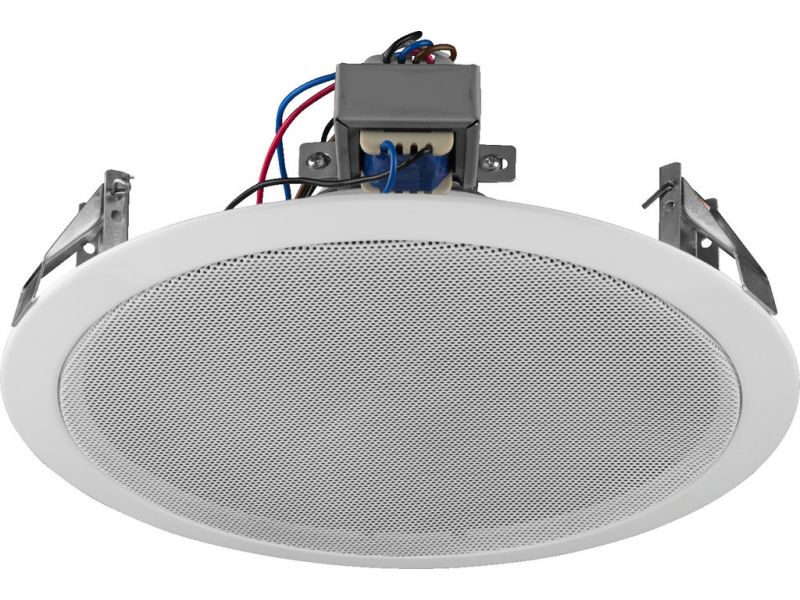

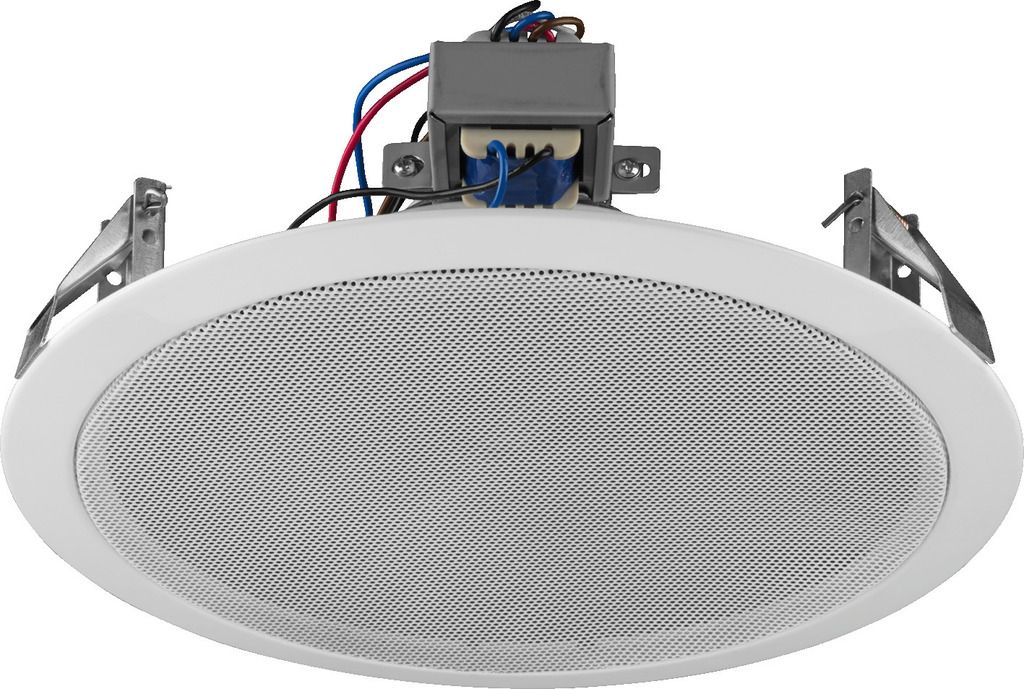

PA ceiling speaker,
with integrated tweeter.
  • 100 V transmission technology
  • 20 cm (8") 2-way coaxial speaker
  • Metal housing with protective speaker grille
  • Power taps: 15/10/6/3 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 90-20,000 Hz
Power rating (RMS) 15/10/6/3 W
SPL 94 dB/W/m
Max. rated SPL 106 dB

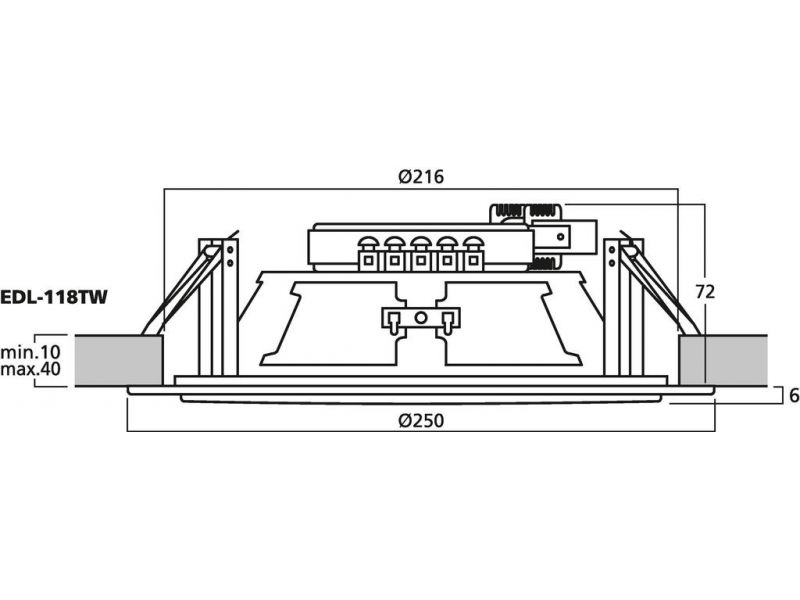

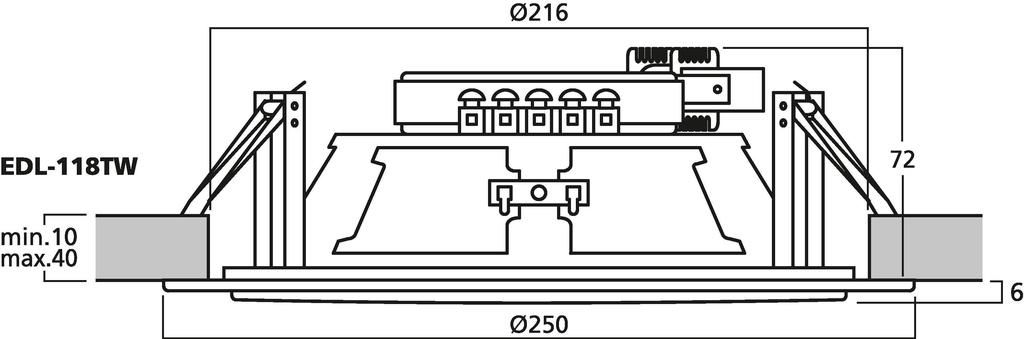

Mounting cutout Ø 216 mm
Mounting depth 85 mm
Dimensions Ø 252 mm x 85 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 85 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.21 kg
Packing unit 1
Type of speaker 200er
Packaging dimensions (W x H x L) 0.255 x 0.08 x 0.265 m
Gross weight 1.34 kg
Net weight 1.208 kg

Fisiere de descarcat

Fisa produsului EDL-118TW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
