EDL-165AB/WS

Cod EAN: 4007754263848

PA A/B ceiling speaker, with EN 54-24 certification for systems with A/B speaker distribution according to EN 60849. 100 V transmission technology 13 cm full range speaker with dual voice coil 2 separate transformers with power taps with 6/3/1.5 W...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-165AB/WS

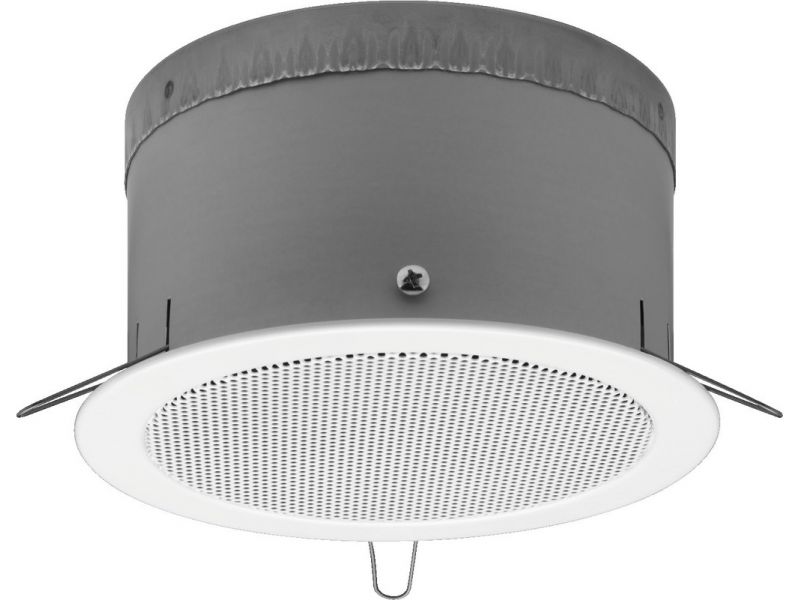

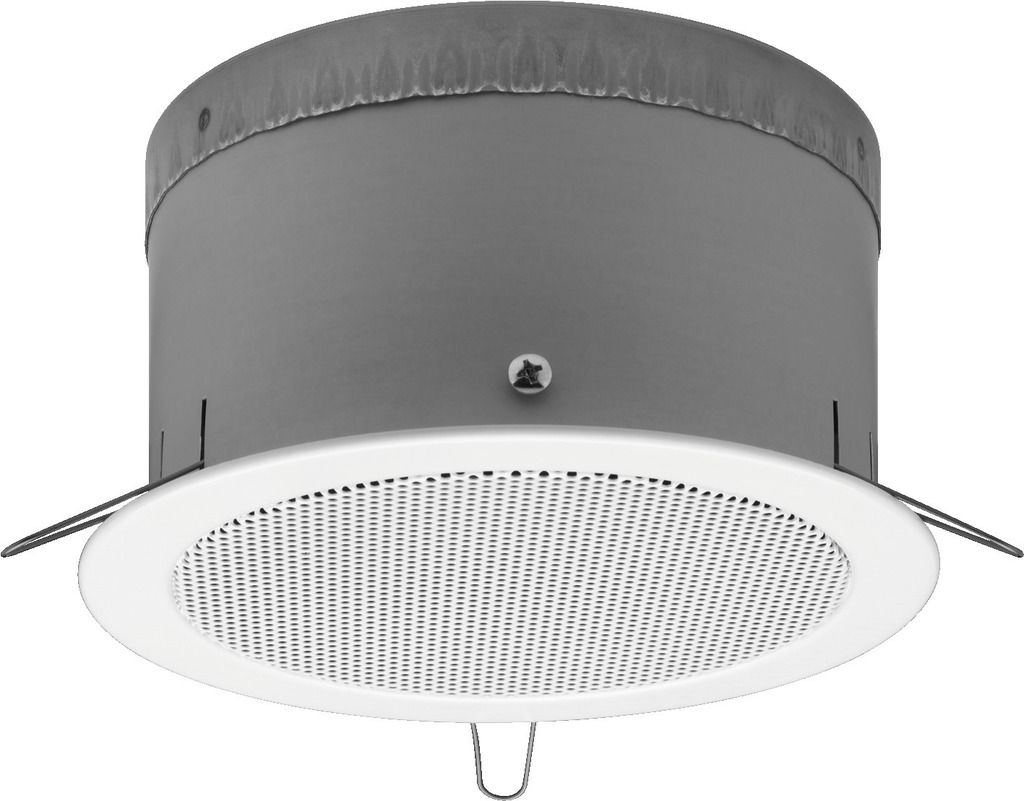

PA A/B ceiling speaker,
with EN 54-24 certification for systems with A/B speaker distribution according to EN 60849.
  • 100 V transmission technology
  • 13 cm full range speaker with dual voice coil
  • 2 separate transformers with power taps with 6/3/1.5 W each
  • Connection via 2 ceramic screw terminals inside the cabinet
  • Metal housing with fire protection cover and protective metal front grille
  • Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 80-19,000 Hz
Power rating (RMS) 2 x 6/3/1.5 W
SPL 93 dB (1 W/1 m) 78 dB (EN, 1 W/4 m)
Max. rated SPL 101 dB (1 m) 86 dB (EN, 4 m)
Radiation angle, horizontal 180° (500 Hz) 180° (1 kHz) 155° (2 kHz) 76° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 180° (1 kHz) 155° (2 kHz) 76° (4 kHz)
Mounting cutout Ø 140-150 mm
Mounting depth 90 mm
Dimensions Ø 170 mm x 95 mm
Outside diameter Ø 170 mm
Width Ø 170 mm
Height Ø 170 mm
Depth 95 mm
Colour white, RAL9010
Admiss. ambient temp. -10 °C to +55 °C
Weight 1.4 kg
Packing unit 1
Type of speaker 130
Packaging dimensions (W x H x L) 0.195 x 0.1 x 0.195 m
Gross weight 1.538 kg
Net weight 1.437 kg

Fisiere de descarcat

Fisa produsului EDL-165AB/WS Manual de utilizare
