EDL-220/WS

Cod EAN: 4007754190533

Weatherproof PA sound projector 100 V transmission technology 2 speakers with polypropylene cone for bilateral radiation Splashproof due to plastic housing with rubber seals Connection cable with 3 power taps Pivoting mounting bracket and screws made...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-220/WS

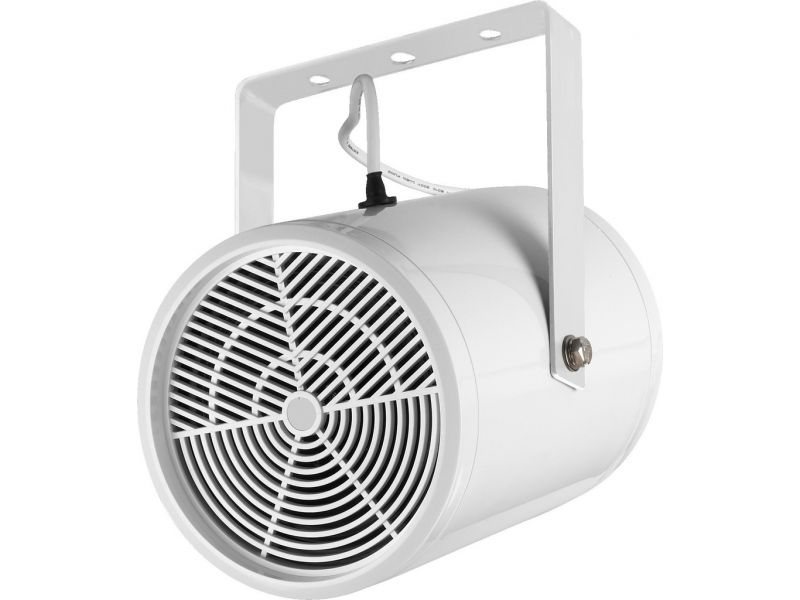

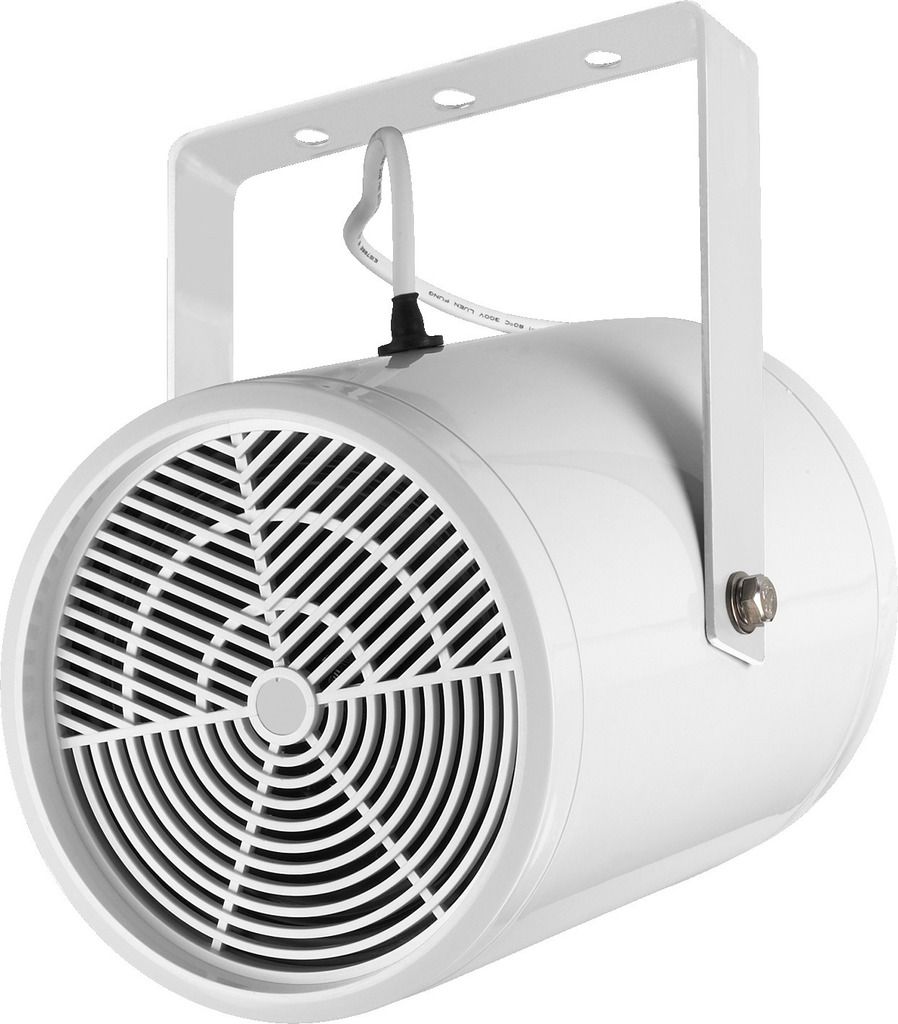

Weatherproof PA sound projector
  • 100 V transmission technology
  • 2 speakers with polypropylene cone for bilateral radiation
  • Splashproof due to plastic housing with rubber seals
  • Connection cable with 3 power taps
  • Pivoting mounting bracket and screws made of stainless steel

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 20 W
Power rating (RMS) 20/10/5 W
Frequency range 120-20,000 Hz
Number of speakers 2
Speaker size 16 cm (6.5")
SPL 94 dB/W/m
Radiation angle/beam angle 110°
Radiation angle, horizontal 110°
Radiation angle, vertical 110°
Housing material plastic
Colour white
Mounting device mounting bracket
Protection class IP44
Admiss. ambient temp. -30 °C to +40 °C
Dimensions Ø 180 mm x 251 mm
Width Ø 180 mm
Height Ø 180 mm
Depth 251 mm
Weight 2.76 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.24 x 0.305 x 0.275 m
Gross weight 3.18 kg
Net weight 2.76 kg

Fisiere de descarcat

Fisa produsului EDL-220/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
