EDL-420/WS

Cod EAN: 4007754189148

Weatherproof PA ball speaker 100 V transmission technology or 8 Ω operation White ABS housing (self-extinguishing, complies with standard UL 94V-0) Supplied with 480 cm connection cable and canopy

Intreaba despre produs
Cumpara acum

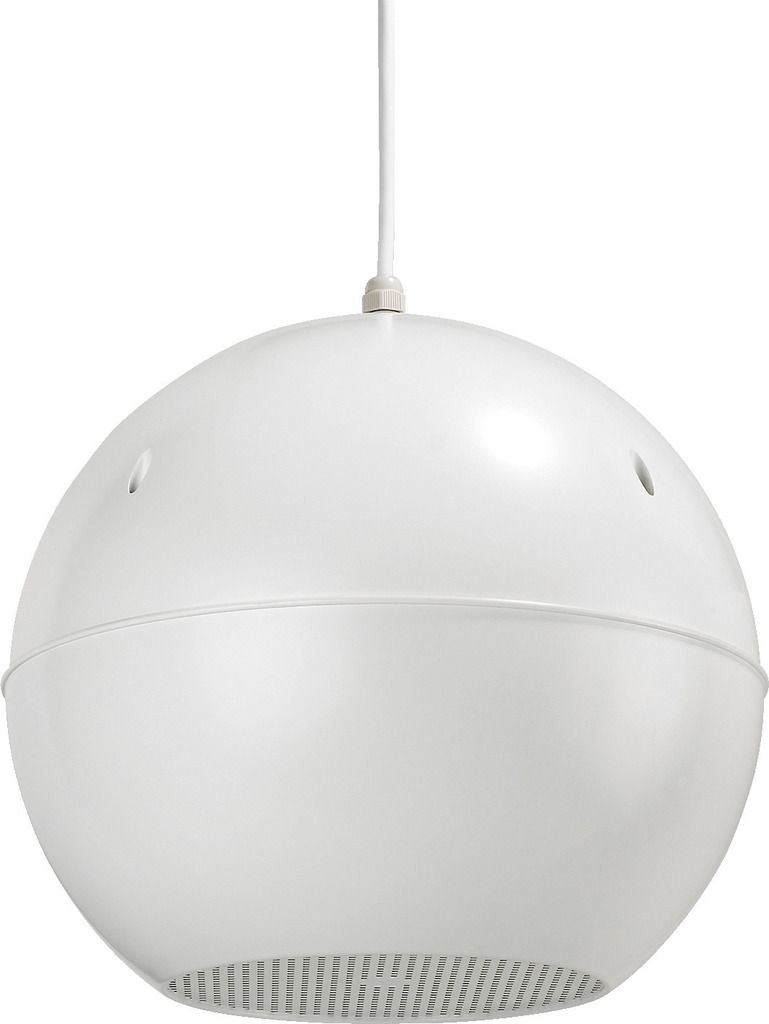

EDL-420/WS

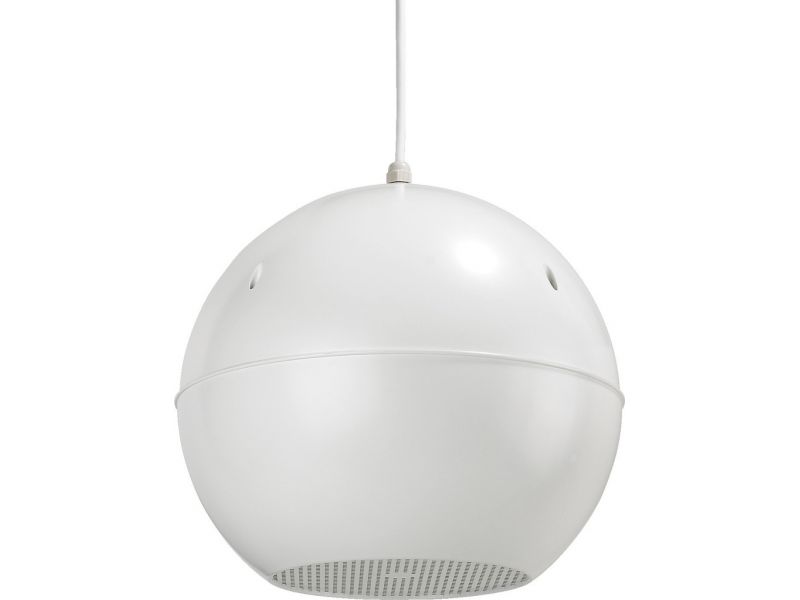

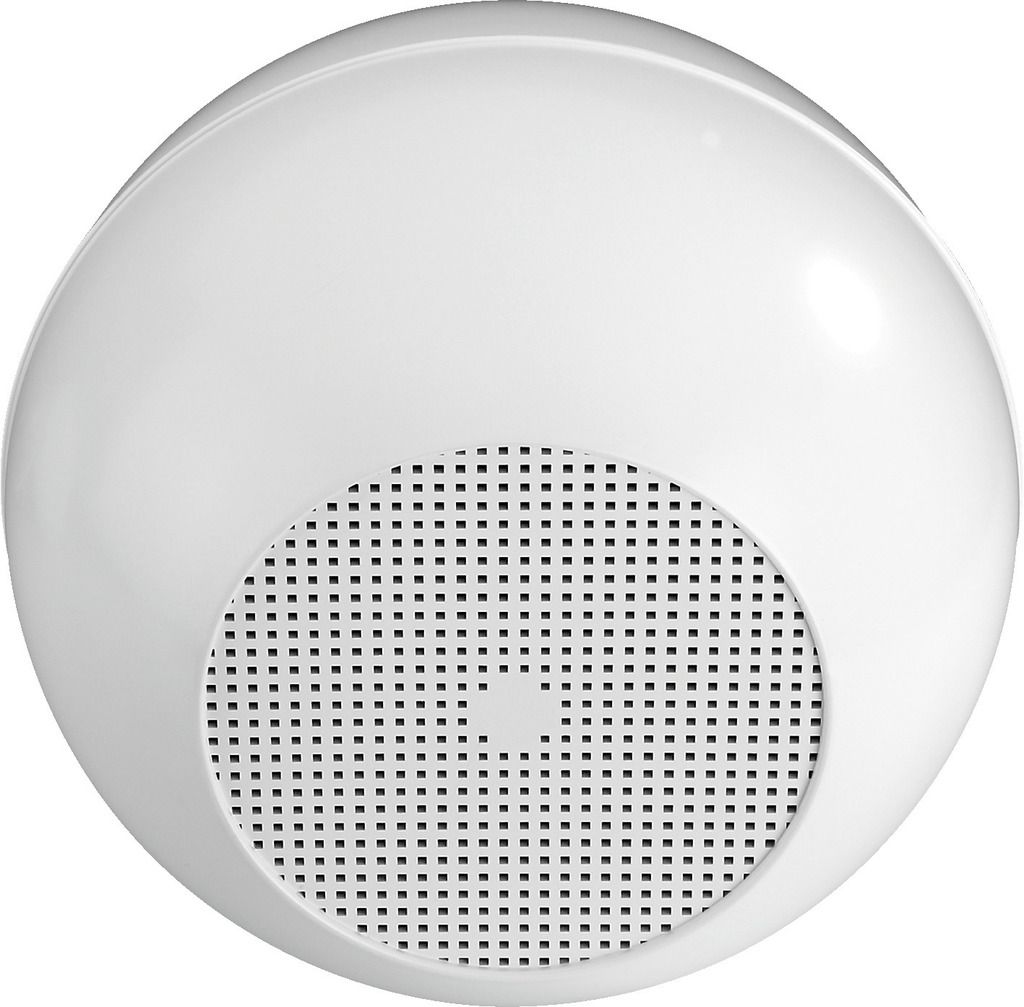

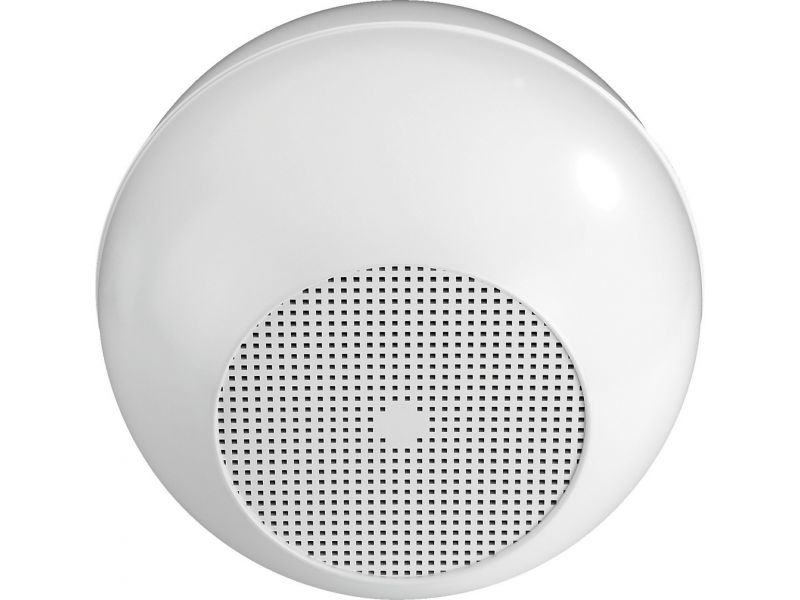

Weatherproof PA ball speaker
  • 100 V transmission technology or 8 Ω operation
  • White ABS housing (self-extinguishing, complies with standard UL 94V-0)
  • Supplied with 480 cm connection cable and canopy

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 20 W
Power rating (RMS) 20/10/5 W
Impedance 8 Ω

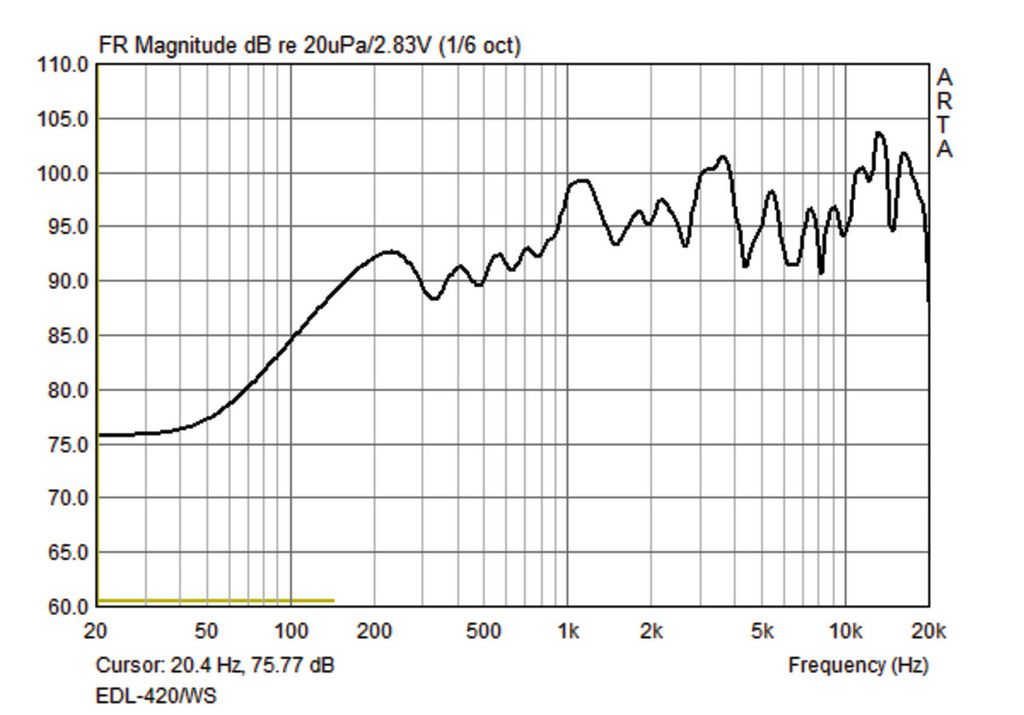

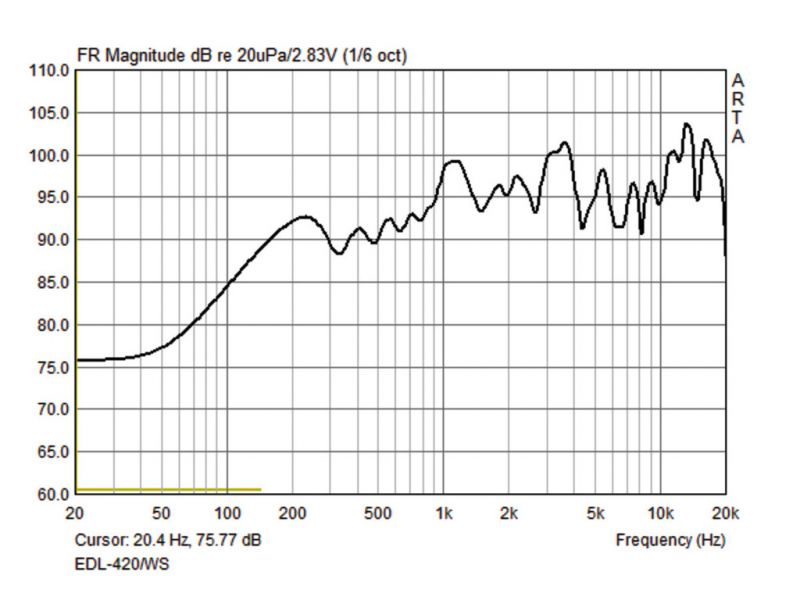

Frequency range 120-20,000 Hz
Full range speaker 160 mm (6")
Number of speakers 1
Speaker size 15 cm (6")
SPL 94 dB/W/m

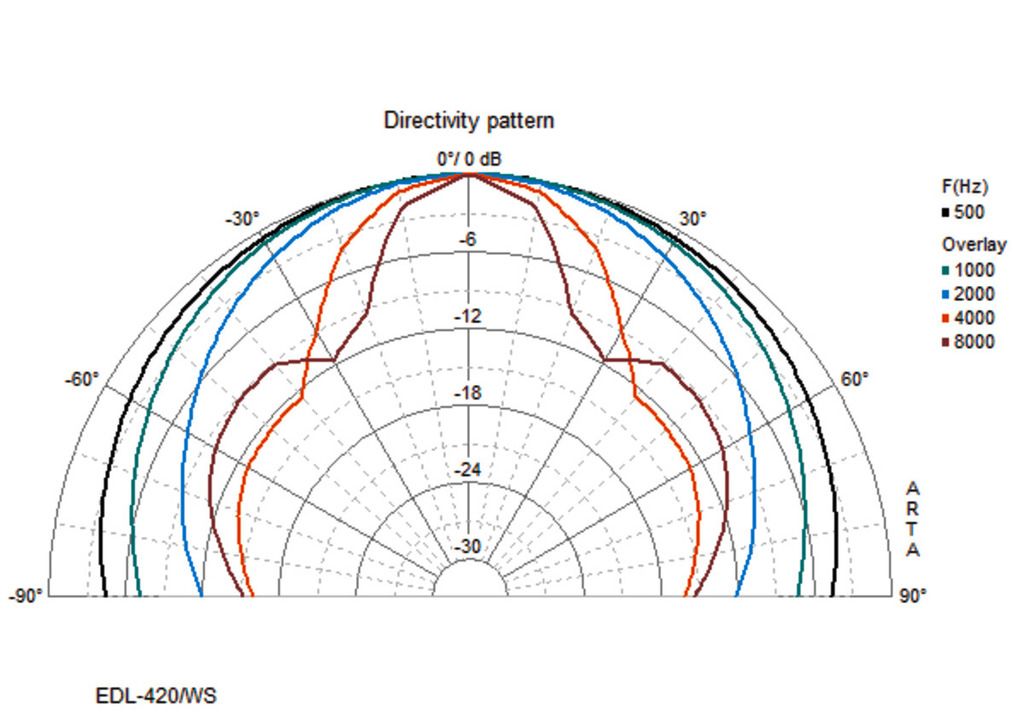

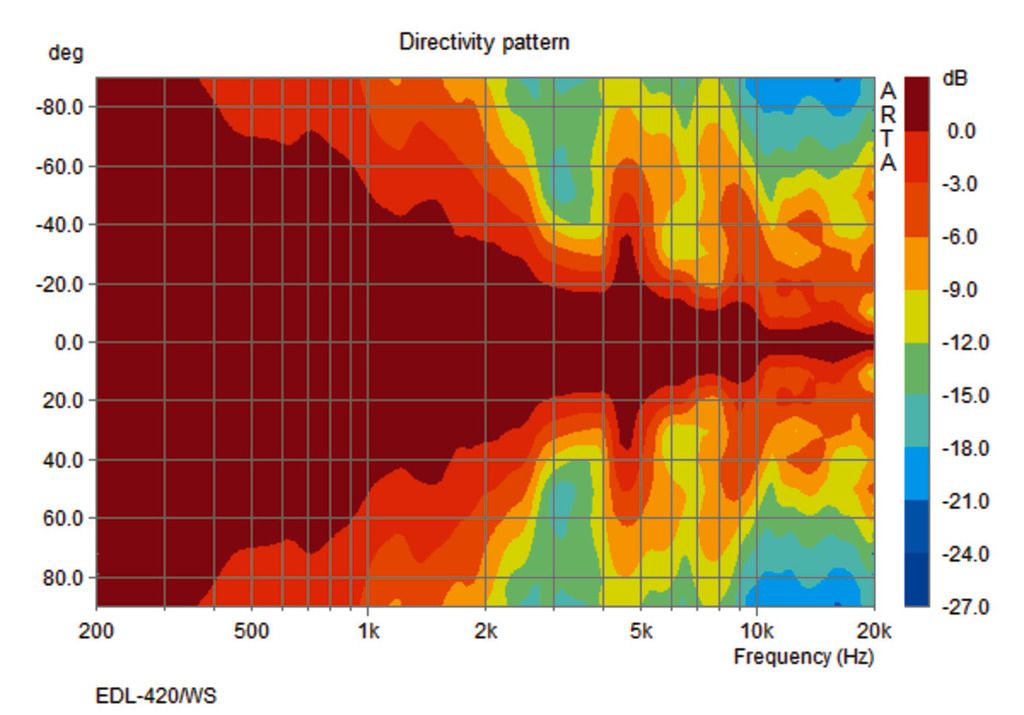

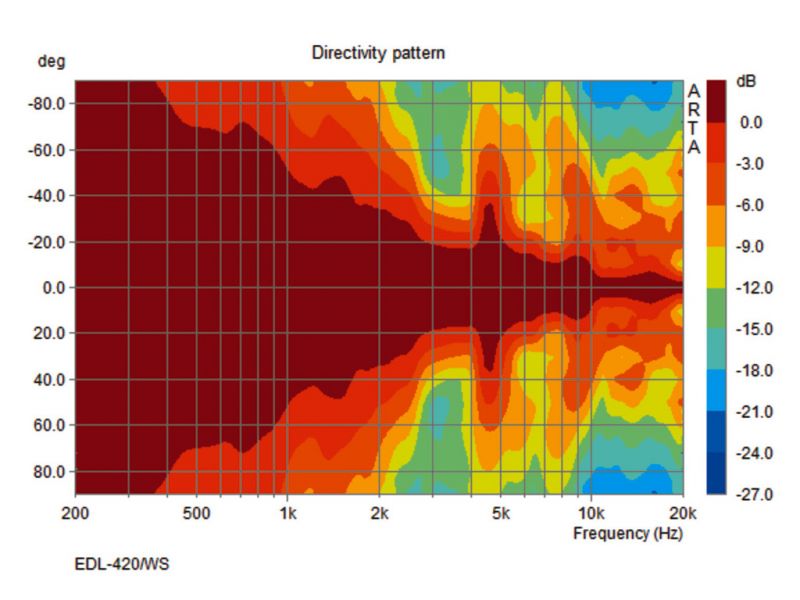

Radiation angle/beam angle 100°
Radiation angle, horizontal 100°
Radiation angle, vertical 100°
Housing material ABS, UL 94 V-0
Colour white
Mounting device cable with canopy
Admiss. ambient temp. -30 °C to +40 °C
Dimensions Ø 265 mm
Width Ø 265 mm
Height Ø 265 mm
Depth 265 mm
Weight 2.3 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.305 x 0.28 x 0.38 m
Gross weight 2.84 kg
Net weight 2.34 kg

Fisiere de descarcat

Fisa produsului EDL-420/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
