EDL-530EN/WS

Cod EAN: 4007754276978

High-quality PA pendant speaker, with EN 54-24 certification. 100 V transmission technology or 8 Ω operation 2-way coaxial system (5.25") UV-resistant ABS housing with aluminium grille Excellent sound quality for speech and music 5 m safety rope Pl...

Citeste mai mult

Intreaba despre produs
Cumpara acum

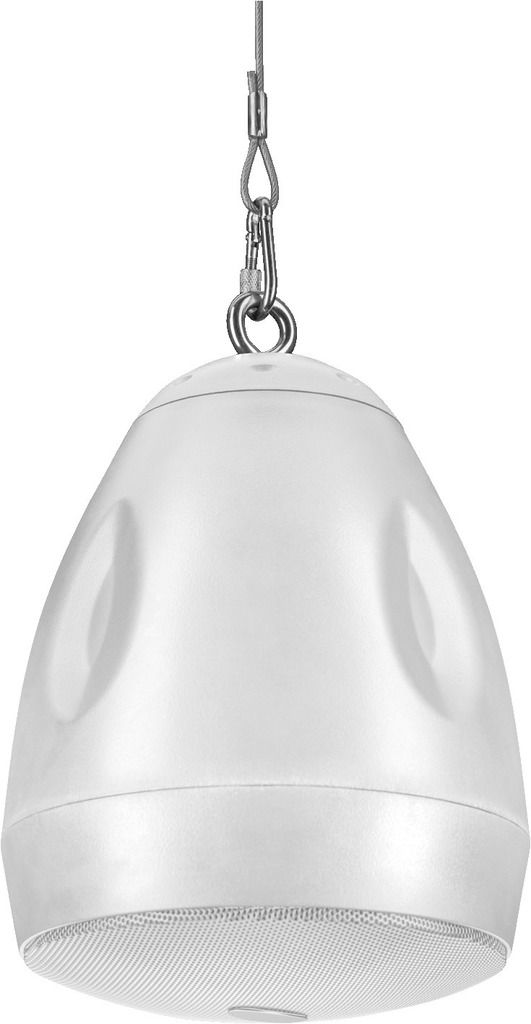

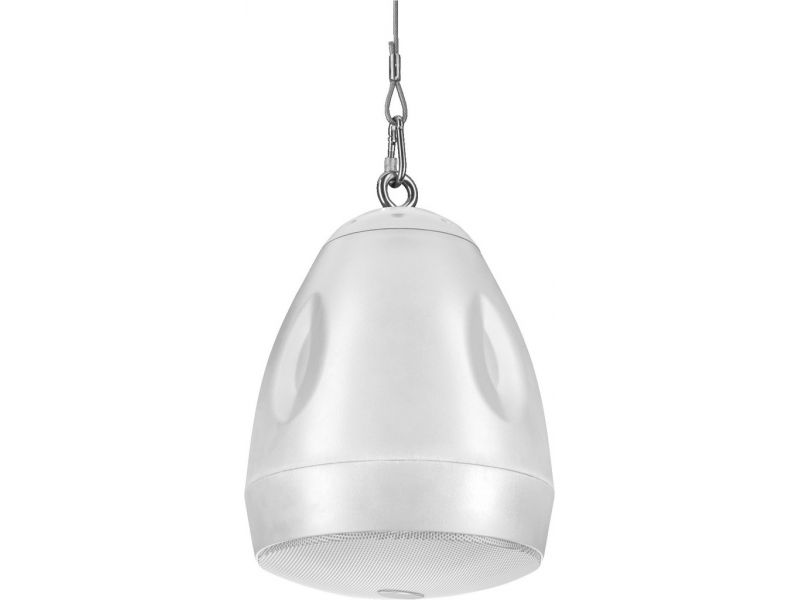

EDL-530EN/WS

High-quality PA pendant speaker,
with EN 54-24 certification.
  • 100 V transmission technology or 8 Ω operation
  • 2-way coaxial system (5.25")
  • UV-resistant ABS housing with aluminium grille
  • Excellent sound quality for speech and music
  • 5 m safety rope
  • Plug-in screw terminal

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 30 W
Power rating (RMS) 30/15/7.5/3.8 W
Impedance 8 Ω
Frequency range 65-20,000 Hz
System 2-way coaxial
Bass speaker 13.33 cm (5.25")
Tweeter 25 mm (1")
Number of speakers 2
Speaker size 13.33 cm (5.25")
SPL 90 dB/W/m
Radiation angle/beam angle 120°
Radiation angle, horizontal 120°
Radiation angle, vertical 120°
Housing material ABS
Colour white
Mounting device eyelet bolt and 5 m safety rope with snap hook
Admiss. ambient temp. 0-40 °C
Dimensions Ø 195 mm x 250 mm
Width Ø 195 mm
Height 250 mm
Depth Ø 195 mm
Weight 2.26 kg
Inputs plug-in screw terminal
Packaging dimensions (W x H x L) 0.22 x 0.3 x 0.22 m
Gross weight 2.66 kg
Net weight 2.26 kg

Fisiere de descarcat

Fisa produsului EDL-530EN/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
