ESP-62AB/WS
Cod EAN: 4007754263855
PA A/B wall speaker, with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849. 100 V transmission technology Full range speaker (13 cm) with dual voice coil 2 separate transformers with power taps wit...

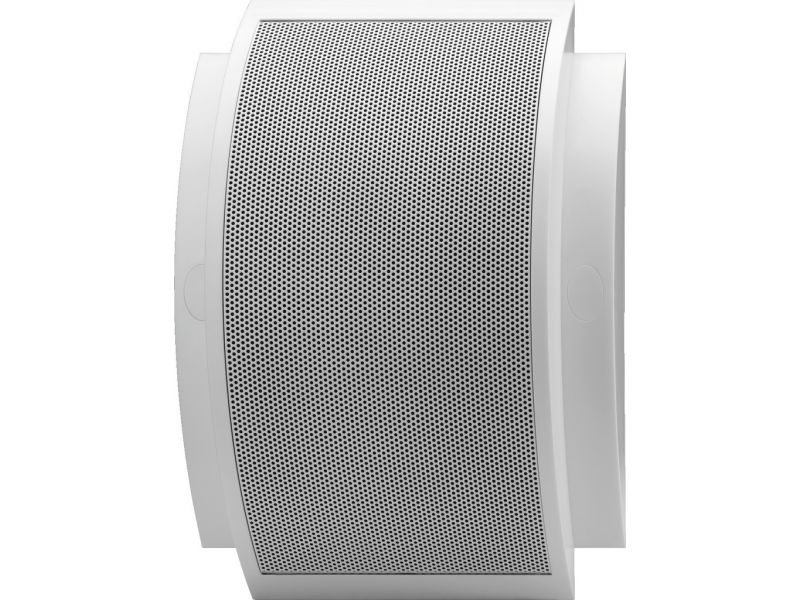

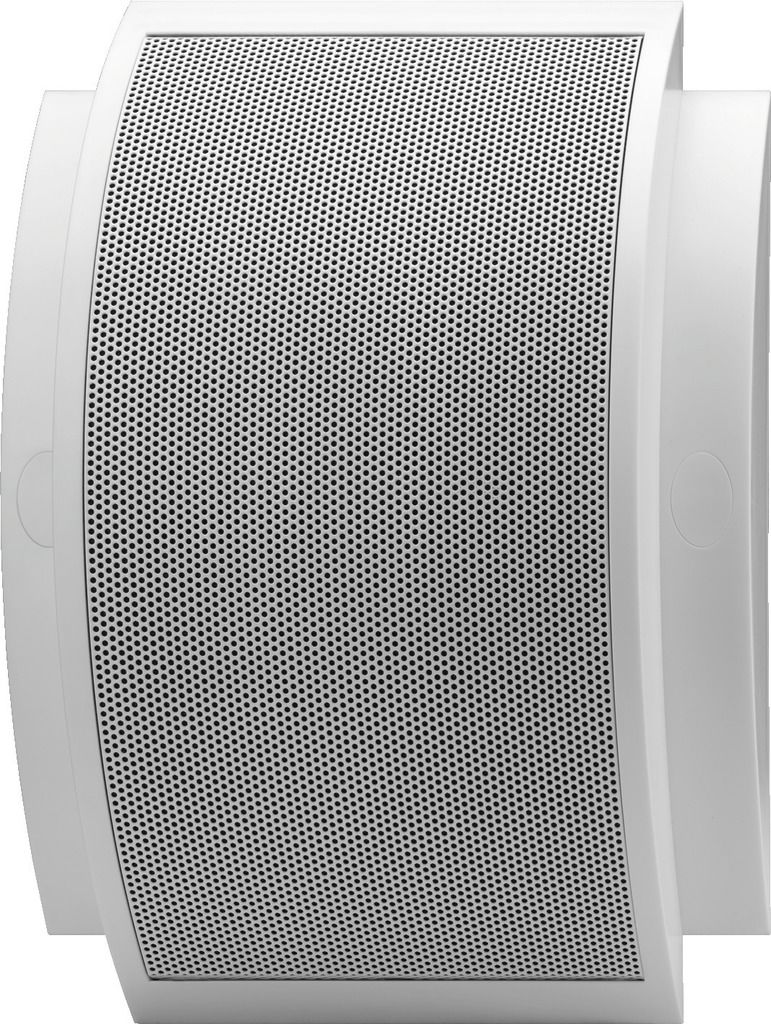

ESP-62AB/WS
PA A/B wall speaker,
with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849.
- 100 V transmission technology
- Full range speaker (13 cm) with dual voice coil
- 2 separate transformers with power taps with 6/3/1.5 W each
- Connection via 2 ceramic screw terminals inside the cabinet
- Symmetrical design allows for horizontal and vertical mounting
- Design plastic cabinet (open rear panel) with protective metal front grille
- Supplied with screws and wall plugs
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 2 x 6 W |
| Power rating (RMS) | 2 x 6/3/1.5 W |
| Frequency range | 80-19,000 Hz |
| Full range speaker | 13 cm, dual voice coil |
| Number of speakers | 1 |
| Speaker size | 13 cm (5") |
| SPL | 93 dB (1 W/1 m) 76 dB (EN, 1 W/4 m) |
| Max. rated SPL | 101 dB (1 m) 86 dB (EN, 4 m) |
| Radiation angle/beam angle | H180°/V180° (500 Hz) H180°/V180° (1 kHz) H180°/V115° (2 kHz) H51°/V68° (4 kHz) |
| Radiation angle, horizontal | 180° (500 Hz) 180° (1 kHz) 180° (2 kHz) 51° (4 kHz) |
| Radiation angle, vertical | 180° (500 Hz) 180° (1 kHz) 115° (2 kHz) 68° (4 kHz) |
| Housing material | ABS |
| Colour | white, RAL 9010 |
| Mounting device | screws |
| Admiss. ambient temp. | -10 °C to +50 °C |
| Dimensions | 240 x 330 x 83 mm |
| Width | 240 mm |
| Height | 330 mm |
| Depth | 83 mm |
| Weight | 1.5 kg |
| Inputs | screw terminals |
| Packaging dimensions (W x H x L) | 0.245 x 0.1 x 0.345 m |
| Gross weight | 1.806 kg |
| Net weight | 1.545 kg |
