ESP-63/WS

Cod EAN: 4007754239744

PA wall speaker 100 V transmission technology via audio transformer with 2 power taps 2-way system with good sound characteristics Plastic cabinet of special design with protective metal grille Closed rear panel, screwed Horizontal and vertical mount...

Citeste mai mult

Intreaba despre produs
Cumpara acum

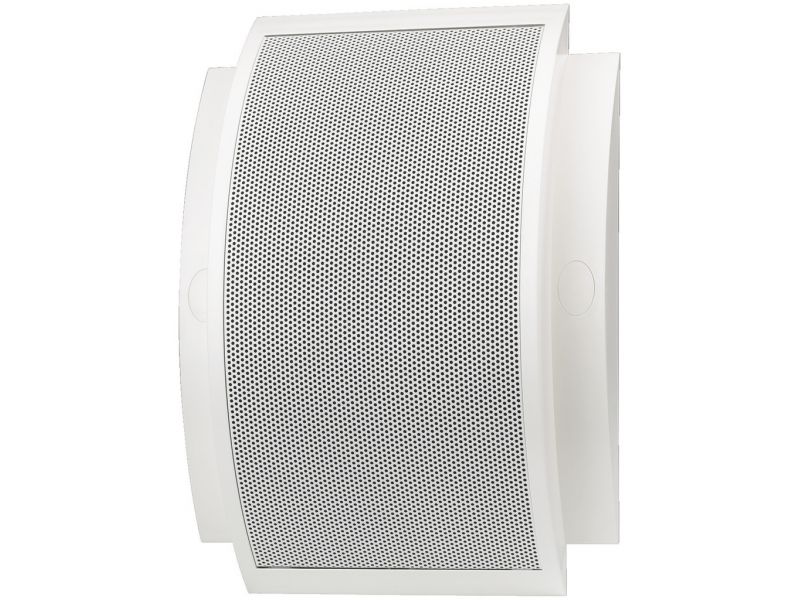

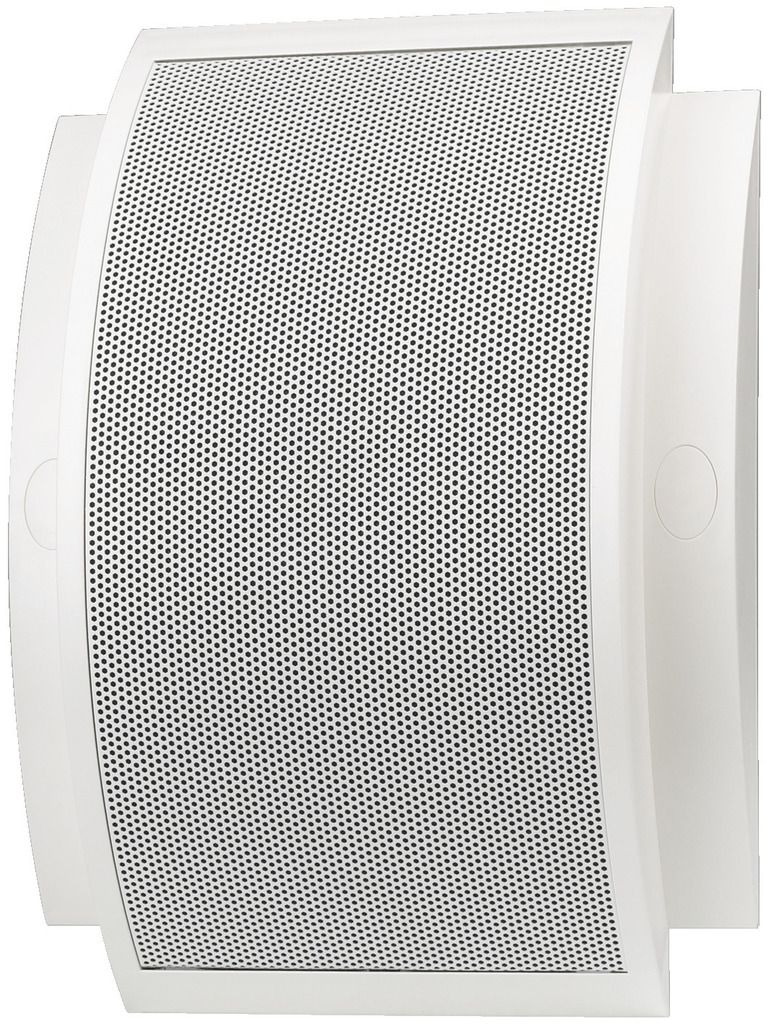

ESP-63/WS

PA wall speaker
  • 100 V transmission technology via audio transformer with 2 power taps
  • 2-way system with good sound characteristics
  • Plastic cabinet of special design with protective metal grille
  • Closed rear panel, screwed
  • Horizontal and vertical mounting possible
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 6 W
Power rating (RMS) 6/3 W
Frequency range 100-20,000 Hz
System 2-way
Number of speakers 2
Speaker size 13 cm (5")
SPL 91 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle H: 120°/V: 100°
Radiation angle, horizontal 120°
Radiation angle, vertical 100°
Housing material plastic
Colour white
Mounting device screws
Admiss. ambient temp. 0-40 °C
Dimensions 240 x 340 x 105 mm
Width 240 mm
Height 340 mm
Depth 105 mm
Weight 1.6 kg
Inputs power taps
Packaging dimensions (W x H x L) 0.25 x 0.11 x 0.345 m
Gross weight 1.758 kg
Net weight 1.617 kg

Fisiere de descarcat

Fisa produsului ESP-63/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
