EX-1W

Cod EAN: 4007754253719

Audio exciter/resonator, 5 W, 8 Ω Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EX-1W

Audio exciter/resonator, 5 W, 8 Ω
Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces create an impressive sound in the entire surrounding area.
  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • Excellent sound quality
  • Dustproof and hose-proof according to IP66
  • Suitable for unobtrusive PA applications, e.g. at doors, cupboards, shelves, glass panels, desktops, shower screens
  • Supplied with 3M adhesive pad
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range dep. on the installation, goes beyond 20 kHz
Resonant frequency (fs) 1,200 Hz
Power rating (RMS) 5 W
Peak music power output (MAX) 10 W
SPL no data
Voice coil diameter Ø 25 mm
Voice coil former Kapton

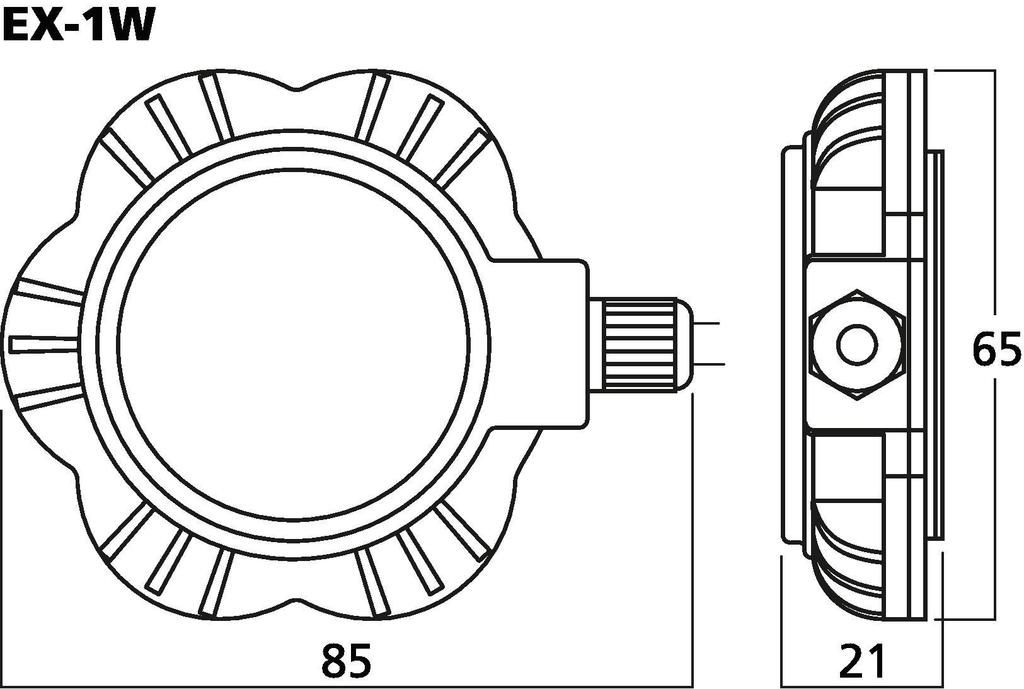

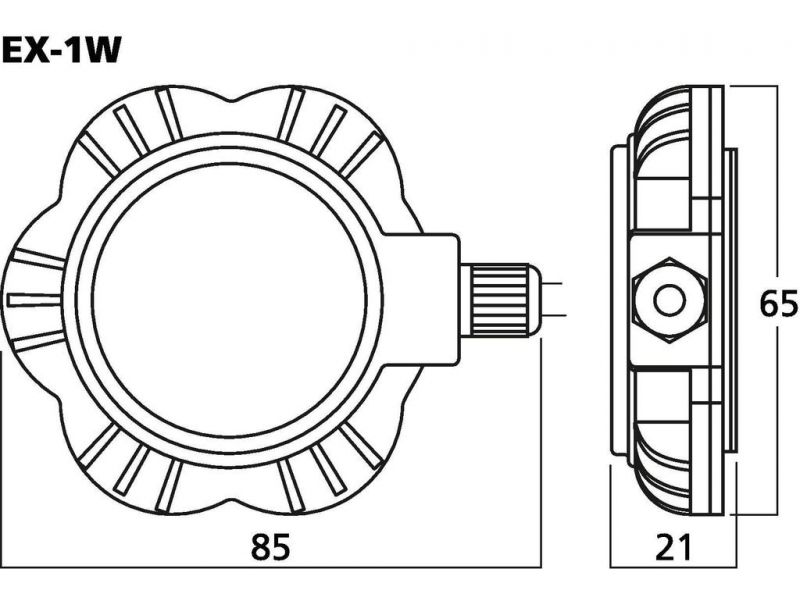

Dimensions 85 x 65 x 21 mm
Width 85 mm
Height 65 mm
Depth 21 mm
Colour black
Protective class IP66
Admiss. ambient temp. -10 °C to +40 °C
Weight 0.107 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.126 x 0.032 x 0.137 m
Gross weight 0.138 kg
Net weight 0.107 kg

Fisiere de descarcat

Fisa produsului EX-1W konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
