FGA-35

Cod EAN: 4007754209044

Ground isolator, compact design, for preventing signal interference and hum loops which may occur, e.g. when connecting PC sound cards or laptops to an amplifier. Galvanically isolated inputs and outputs 2 x 3.5 mm stereo plug Input/output impedanc...

Citeste mai mult

Intreaba despre produs
Cumpara acum

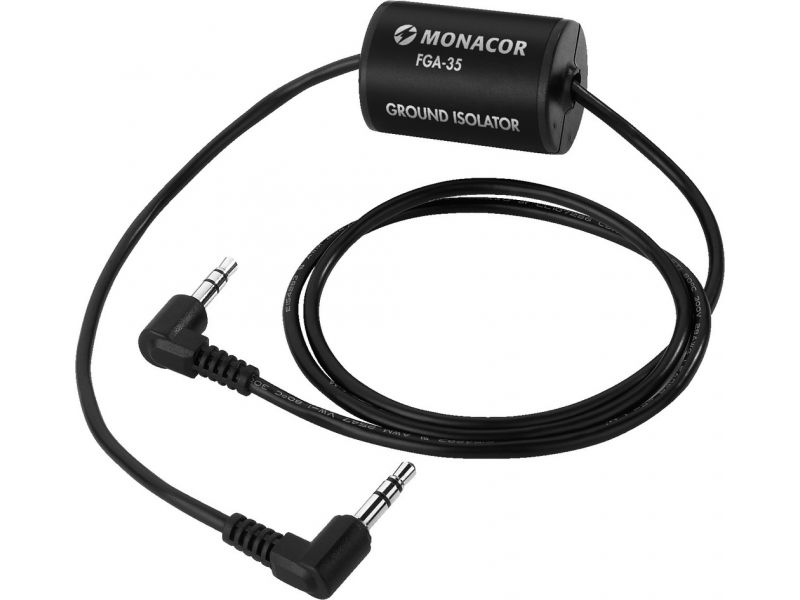

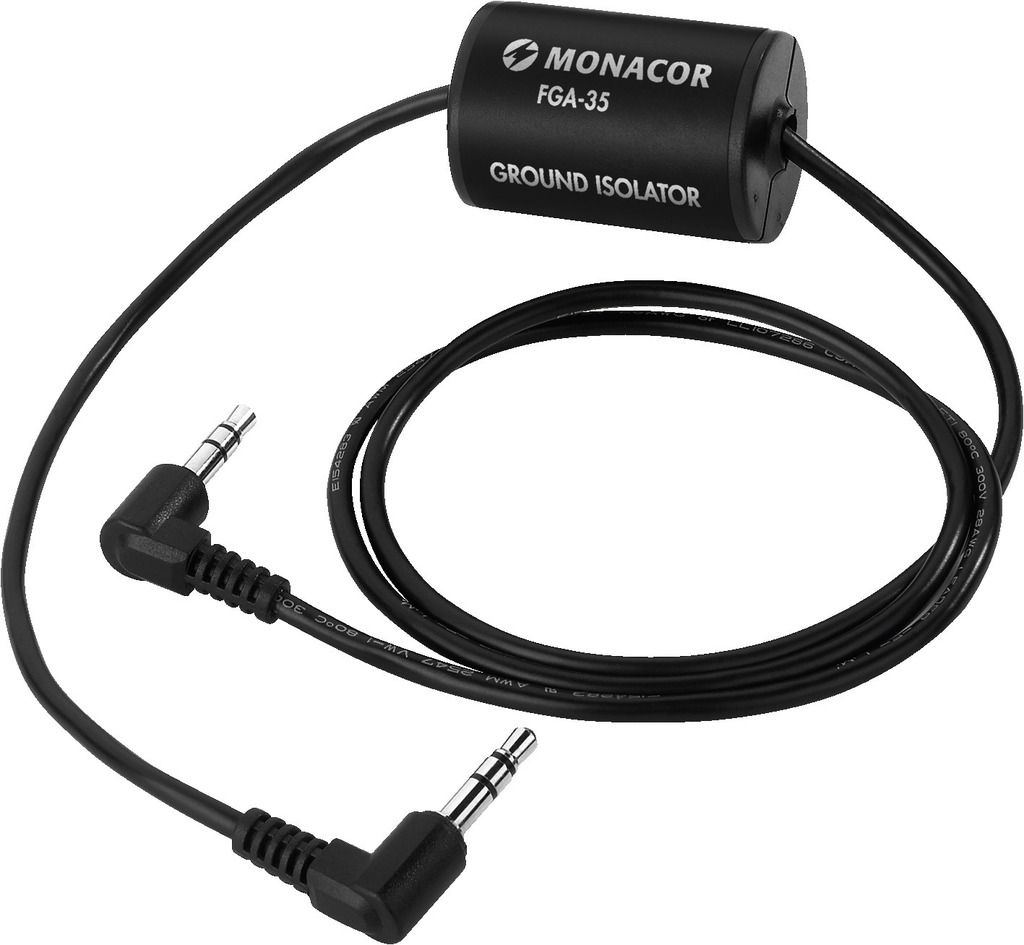

FGA-35

Ground isolator,
compact design, for preventing signal interference and hum loops which may occur, e.g. when connecting PC sound cards or laptops to an amplifier.
  • Galvanically isolated inputs and outputs
  • 2 x 3.5 mm stereo plug
  • Input/output impedance: 20 kΩ
  • Frequency range: 20-30,000 Hz
  • THD: < 0.01%
  • Transmission ratio 1:1
  • Ø 24 mm x 38 mm, 32 g
  • Length including connection cable: approx. 80 cm
TASTENWELT 04/2014
“The FGA-35 is a compact transmitter and ideally suited for connecting instruments (e.g. stage pianos) to an audio device without interference.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description ground isolator
Frequency range 20-30,000 Hz
Input impedance 20 kΩ
Output impedance 20 kΩ
Transmission ratio 1:1
THD < 0.01%
Admiss. ambient temp. 0-40 °C
Dimensions Ø 24 mm x 38 mm
Weight 31 g
Inputs 1 x 3.5 mm stereo plug
Outputs 1 x 3.5 mm stereo plug

Fisiere de descarcat

Fisa produsului FGA-35 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
