JSS-20/5

Cod EAN: 4007754246803

The wideband multifrequency system UF-20... from JTS is the perfect solution for stage applications of high requirements due to an excellent flexibility and reliability. The device impresses with a convenient setup function, REMOSET technology, 75 MH...

Citeste mai mult

Intreaba despre produs
Cumpara acum


JSS-20/5

The wideband multifrequency system UF-20... from JTS
is the perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.

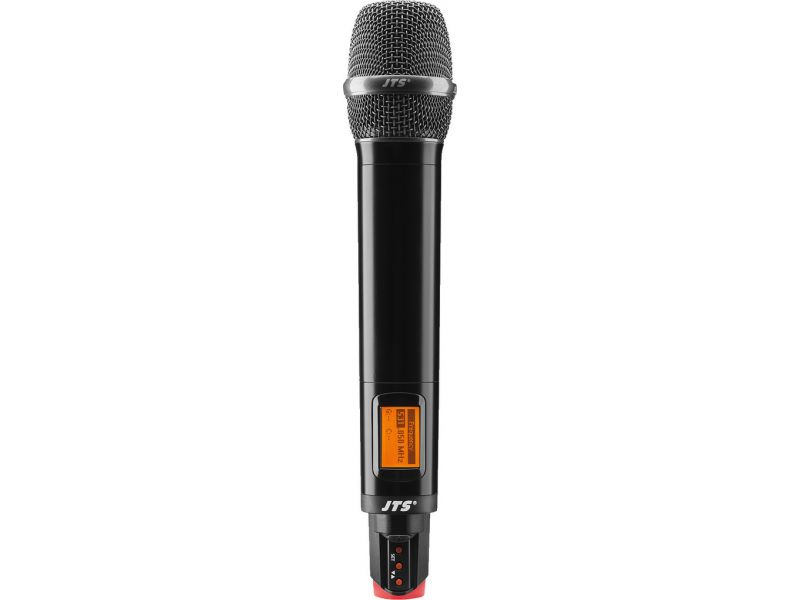

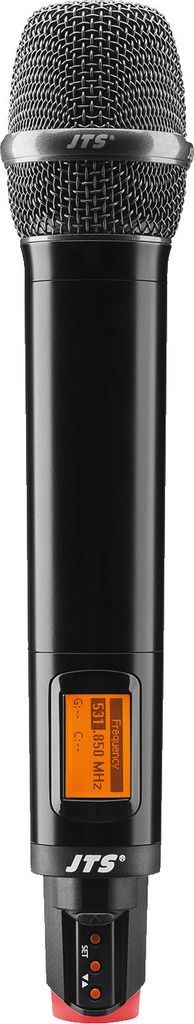

Dynamic hand-held UHF PLL transmitter
  • Dynamic microphone cartridge (cardioid polar pattern) with minimised feedback susceptibility as well as suppression of handling noise/structure-borne noise
  • Bandwidth: 75 MHz
  • 15 groups, each with up to 63 compatible preset channels
  • 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
  • REMOSET technology for receiver/transmitter synchronisation
  • Adjustable sensitivity (-15 dB to +15 dB)
  • Lock function/mute function
  • 5-level display for indicating battery status and low battery alert, backlit LCD
  • Switchable transmitting power
  • Supplied with robust transport case, stand clamp and 8 ID caps

There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
tools4music 06/2015
“With the wireless system UF-20, JTS is able to offer an absolutely professional system. Despite numerous features, the menu navigation can easily be followed and understood. The REMOSET function allows you to simultaneously adjust up to 48 transmitters and receivers. In addition, important functions of the hand-held transmitter can remotely be controlled via the receiver which is particularly helpful at festivals. It allows you to quickly adjust the microphone sensitivity. The system also impresses with an appealing design and a neat workmanship.”
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Parametrii

Description hand-held microphone
Transmission method wireless
Polar pattern cardioid
System dynamic
Carrier frequency range 530-605 MHz
Transmitting power 10/50 mW
Power supply 2 x batt. AA size, alkaline (not supplied)
Operating time > 20 h
Audio frequency range 50-18,000 Hz
Admiss. ambient temp. 0-40 °C
Dimensions Ø 50 mm x 260 mm
Weight 340 g
Packaging dimensions (W x H x L) 0.175 x 0.085 x 0.365 m
Gross weight 1.075 kg
Net weight 0.855 kg

Fisiere de descarcat

Fisa produsului JSS-20/5 konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
