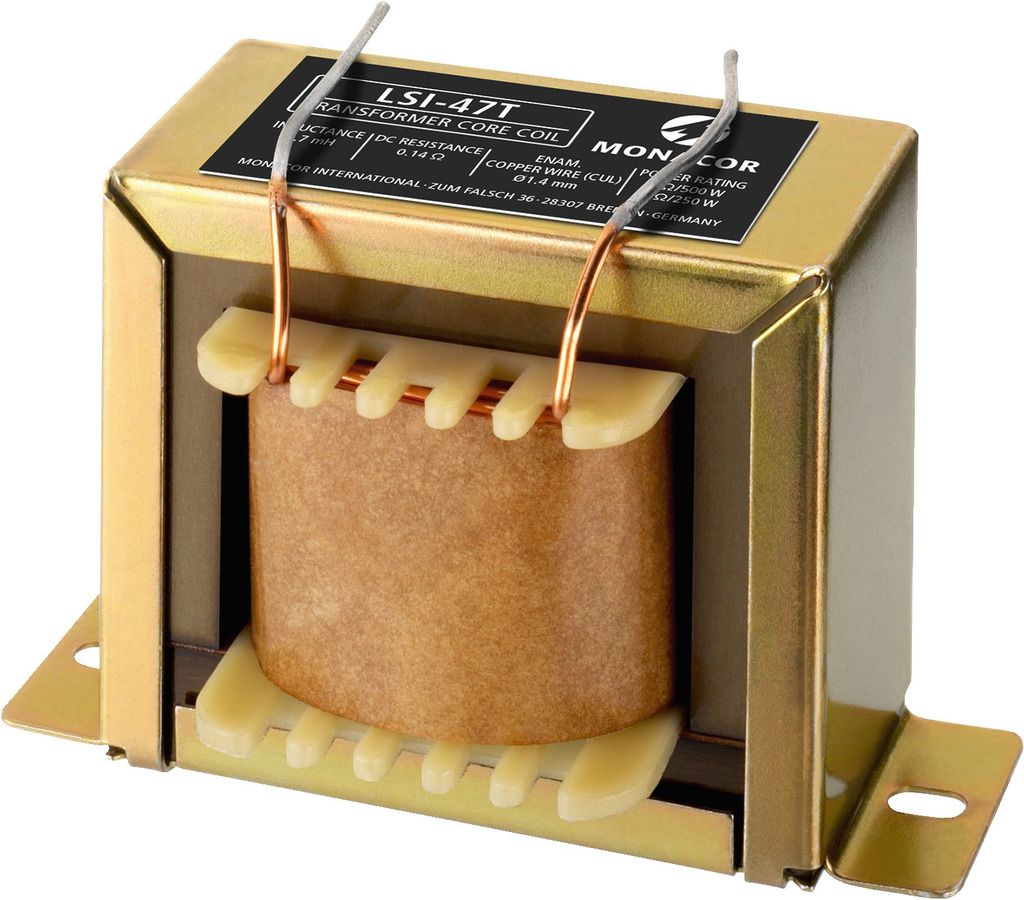

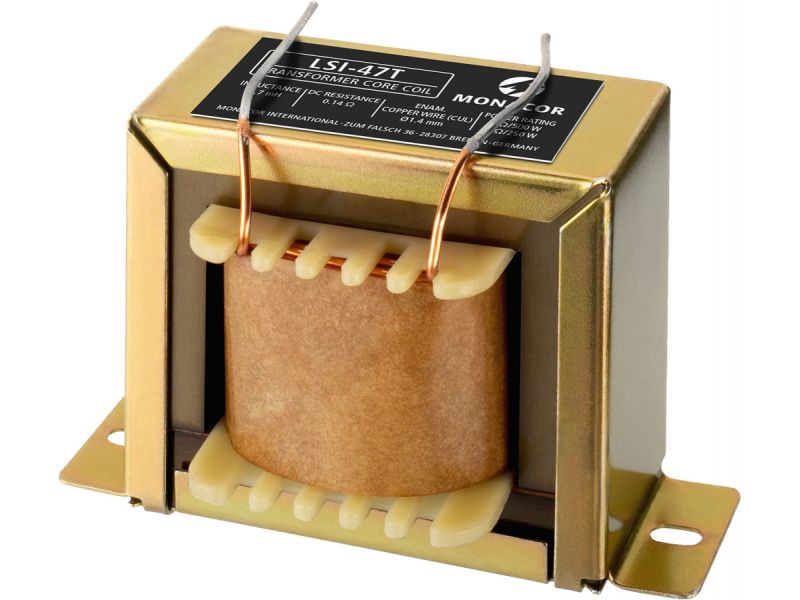

LSI-47T

Cod EAN: 4007754066883

Transformer core coil, 4.7 mH High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.



LSI-47T

Transformer core coil, 4.7 mH
High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

Parametrii

Description transformer core coil
Nominal value 4.7 mH
Power rating 500 W/250 W
Enam. copper wire

(CUL)

Ø 1.4 mm
DC resistance 0.14 Ω
Saturation current

(50 Hz)

7.9 A
Packing unit 1
Dimensions 68 x 58 x 55 mm (EI-66)
Weight 0.885 kg
