LTR-110

Cod EAN: 4007754087550

Audio transformer 1:1/2:1 for line signals Unshielded version with PCB connections Wideband version Change from unbalanced to balanced and vice versa Galvanic isolation to avoid/eliminate hum loops Various level adjustment possibilities when windings...

Citeste mai mult



LTR-110

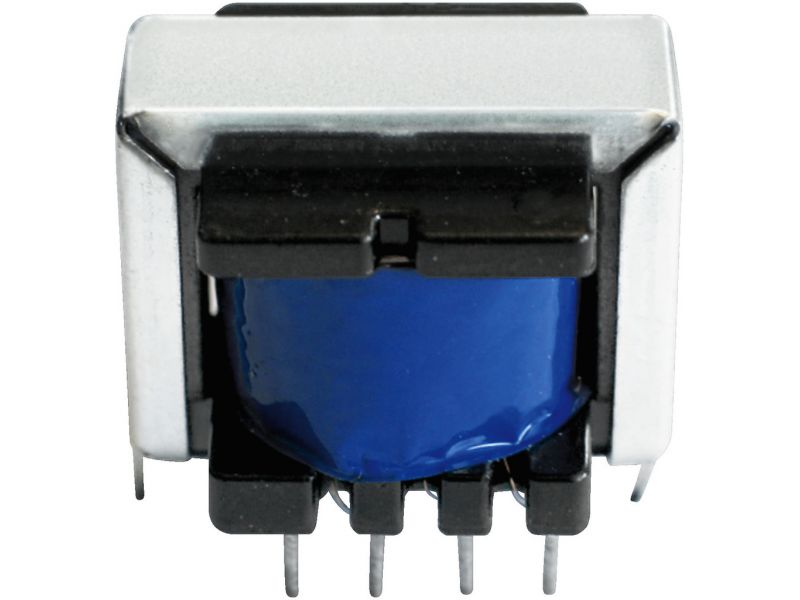

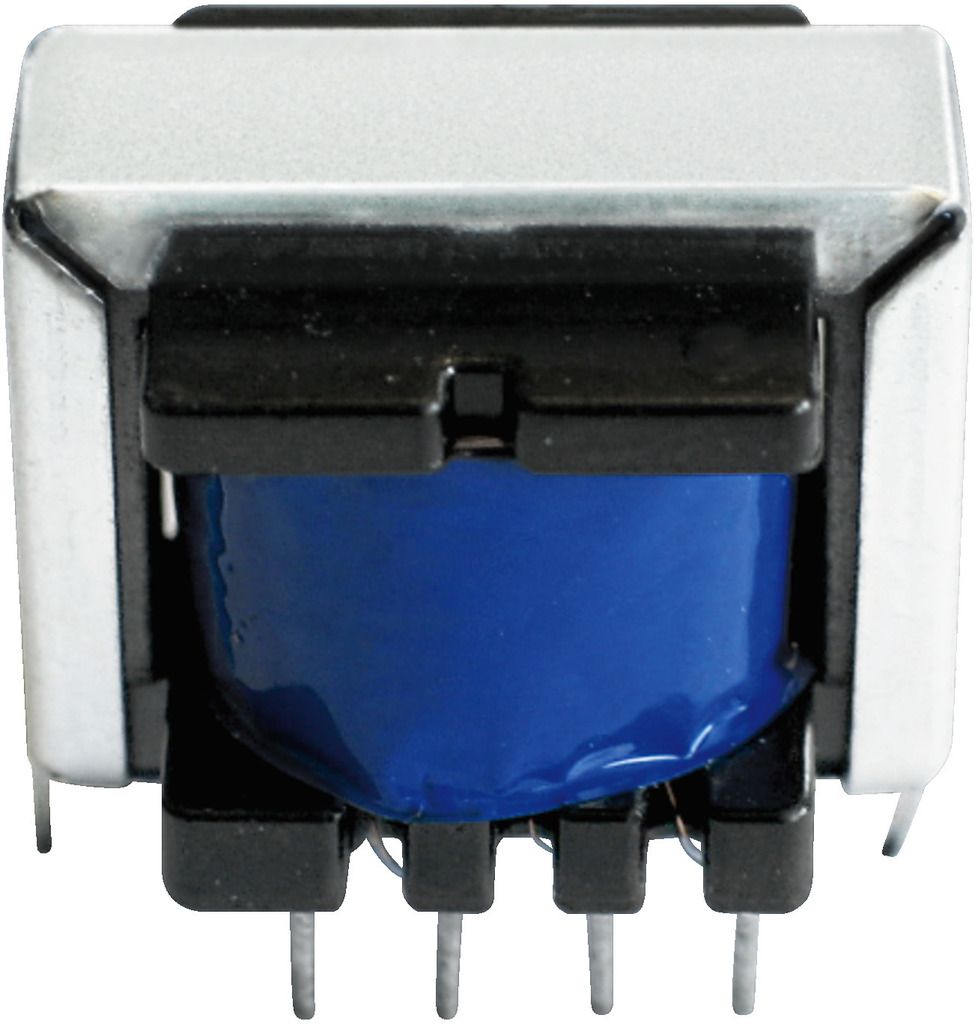

Audio transformer 1:1/2:1 for line signals
  • Unshielded version with PCB connections
  • Wideband version
  • Change from unbalanced to balanced and vice versa
  • Galvanic isolation to avoid/eliminate hum loops
  • Various level adjustment possibilities when windings are arranged accordingly
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Parametrii

Description line transformer
Frequency range 15-30,000 Hz
Input signal 5 V

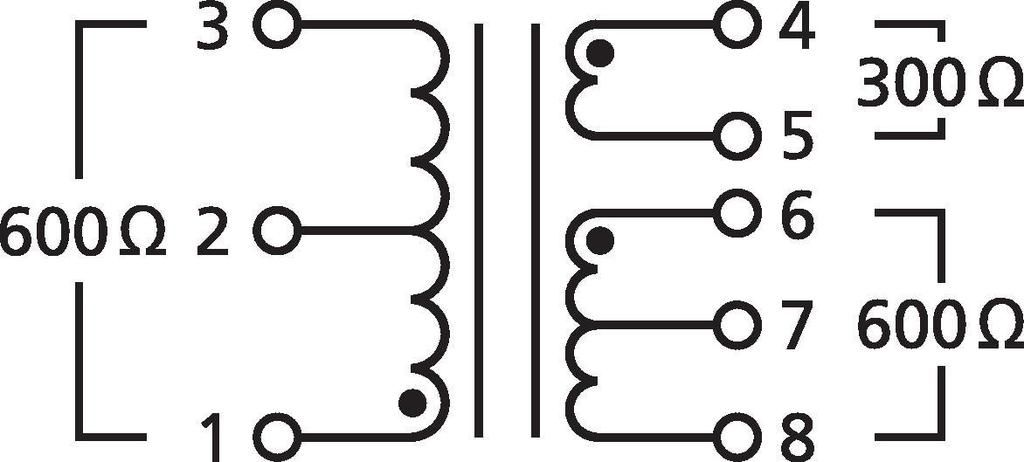

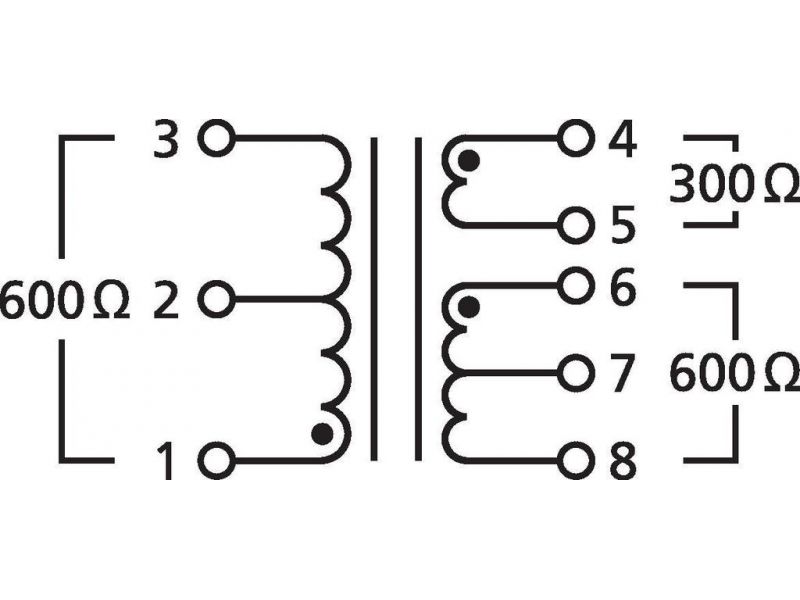

Input impedance 600 Ω
Output impedance 600 Ω/300 Ω
Transmission ratio 1:1/2:1
Dimensions 25 x 19 x 19.5 mm
Weight 28 g
Inputs PCB connections
Outputs PCB connections
