MPX-4PA

Cod EAN: 4007754175462

3-zone mixer 3 zones with user-defined routing of all input channels XLR and RCA zone outputs 6 input channels (4 stereo ways, 2 microphone ways) Both microphone ways can only be routed together Recessed gain control for each input channel Microphone...

Citeste mai mult

Intreaba despre produs
Cumpara acum

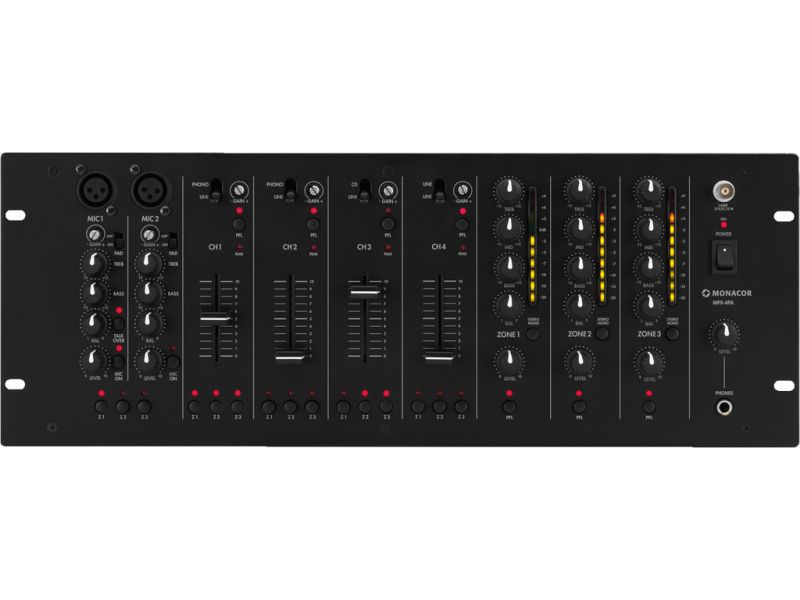

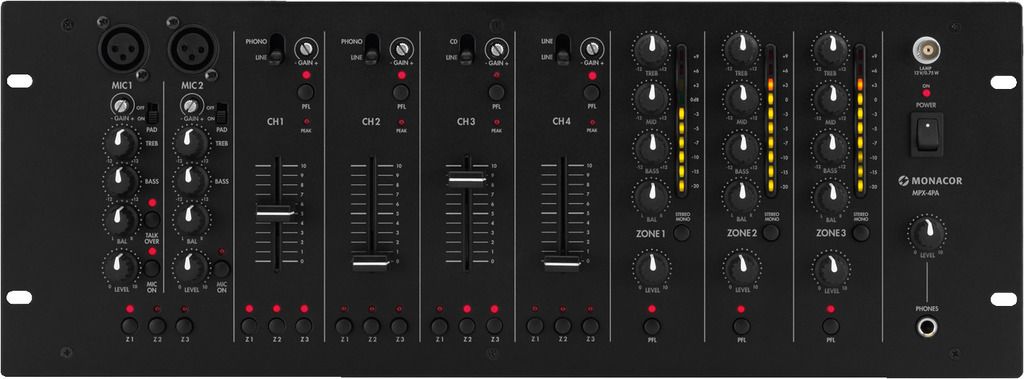

MPX-4PA

3-zone mixer
  • 3 zones with user-defined routing of all input channels
  • XLR and RCA zone outputs
  • 6 input channels (4 stereo ways, 2 microphone ways)
  • Both microphone ways can only be routed together
  • Recessed gain control for each input channel
  • Microphone ways, each with 2-way tone control, talkover and PAD switch
  • Stereo channels, switchable 2 x phono/line and 2 x line/line
  • Zone outputs, each with 3-way equalizer, LED level display of the stereo master, balance control, pre-fader listening (PFL) and mono/stereo selector switch
  • Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and zone outputs
  • Connection for gooseneck light GNL-204
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

No. of channels 6
No. of inputs 12
Mic input 1.5 mV, 2 x 6.3 mm jack
Line input 150 mV, 5 x RCA L/R
CD input 150 mV, 1 x RCA L/R
Phono input 3 mV, 2 x RCA L/R
Master output 1 V/600 Ω, 3 x 3-pole XLR L/R,3 x RCA L/R
Headphones ≥ 8 Ω, 1 x 6.3 mm jack
Gooseneck lamp 12 V/0.75 W, 1 x BNC
Frequency range 20-20,000 Hz
THD 0.1%
S/N ratio 61 dB, unweighted
Equalizer bass +12 dB, -12 dB/50 Hz
Equalizer midrange +12 dB, -12 dB/1 kHz
Equalizer treble +12 dB, -12 dB/10 kHz
Talkover -16 dB
Power supply ˜ 230 V/50 Hz/20 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 20 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 177 x 105 mm, 4 RS
Width 482 mm
Height 177 mm
Depth 105 mm
Rack units, RU 4
Weight 4 kg
Packaging dimensions (W x H x L) 0.215 x 0.15 x 0.52 m
Gross weight 5.02 kg
Net weight 4.075 kg

Fisiere de descarcat

Fisa produsului MPX-4PA konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
