MRD-34PA
Cod EAN: 4007754214192
PA horn driver, 35 W, 8 Ω 35 mm (1 ⅜") standard thread Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAK speakers Matching replacement voice coil PAB-128/VC available at option Suitable for horns MRH-120,...

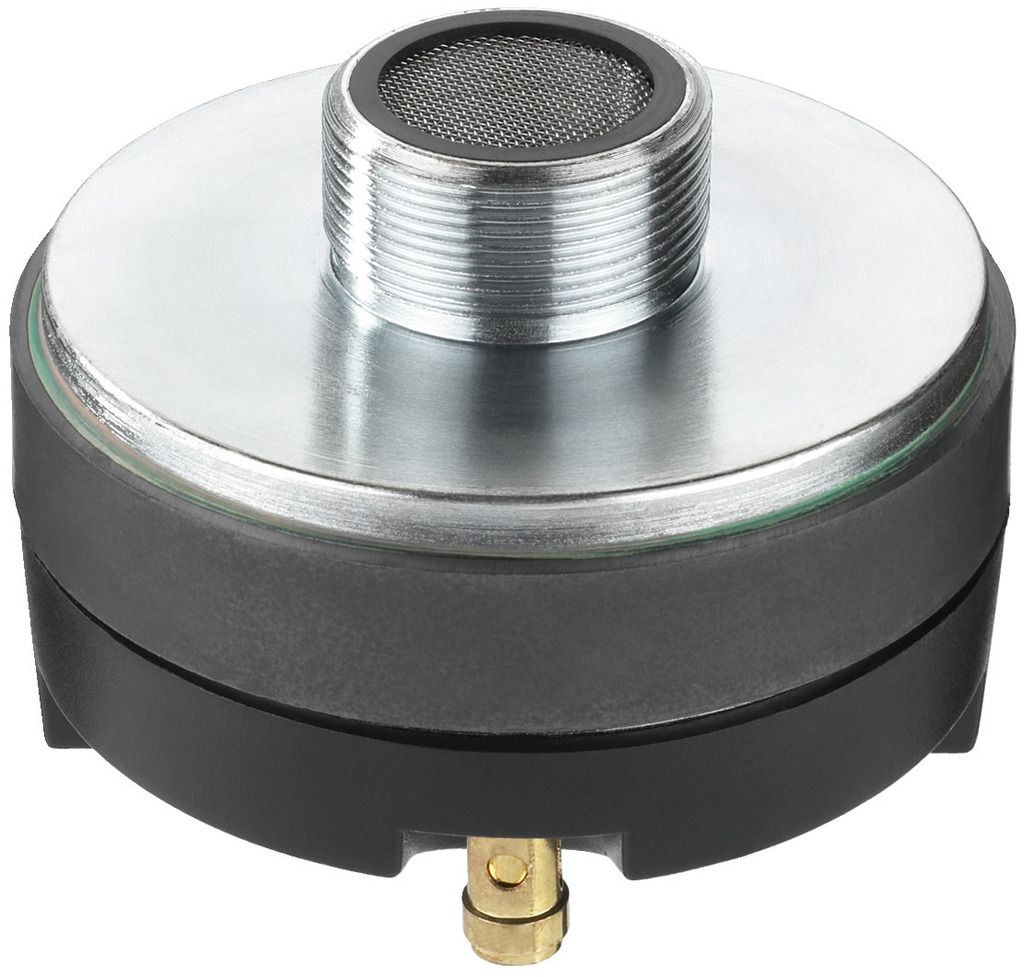

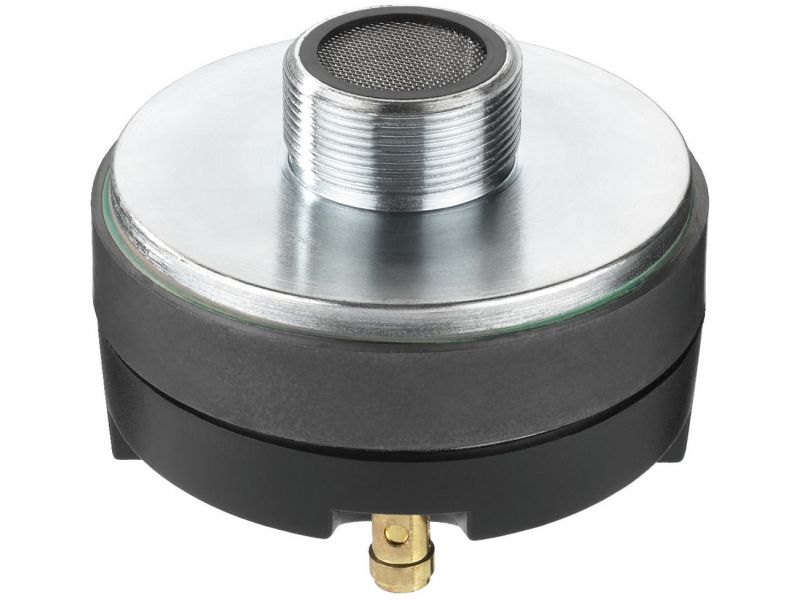

MRD-34PA
PA horn driver, 35 W, 8 Ω
- 35 mm (1 ⅜") standard thread
- Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAK speakers
- Matching replacement voice coil PAB-128/VC available at option
- Suitable for horns MRH-120, MRH-83, MRH-170 and MRH-80
Parametrii
| Impedance (Z) | 8 Ω |
| Frequency range | fx-20,000 Hz |
| Resonant frequency (fs) | 1.2 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 4,000 Hz |
| Power rating (RMS) | 35 W |
| Peak music power output (MAX) | 70 W |
| SPL | 104 dB/W/m |
| Radiation angle | dep. on horn |
| Voice coil diameter | Ø 34.5 mm |
| Magnet diameter | Ø 87 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |

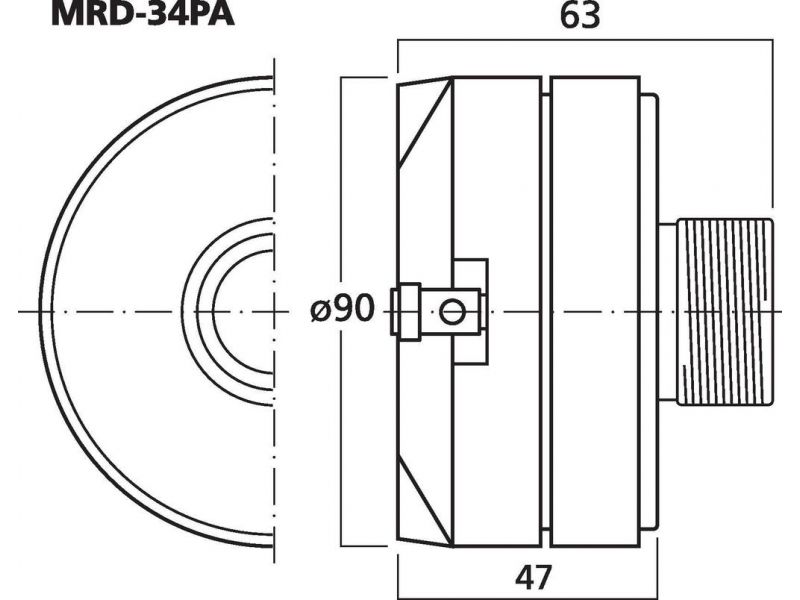

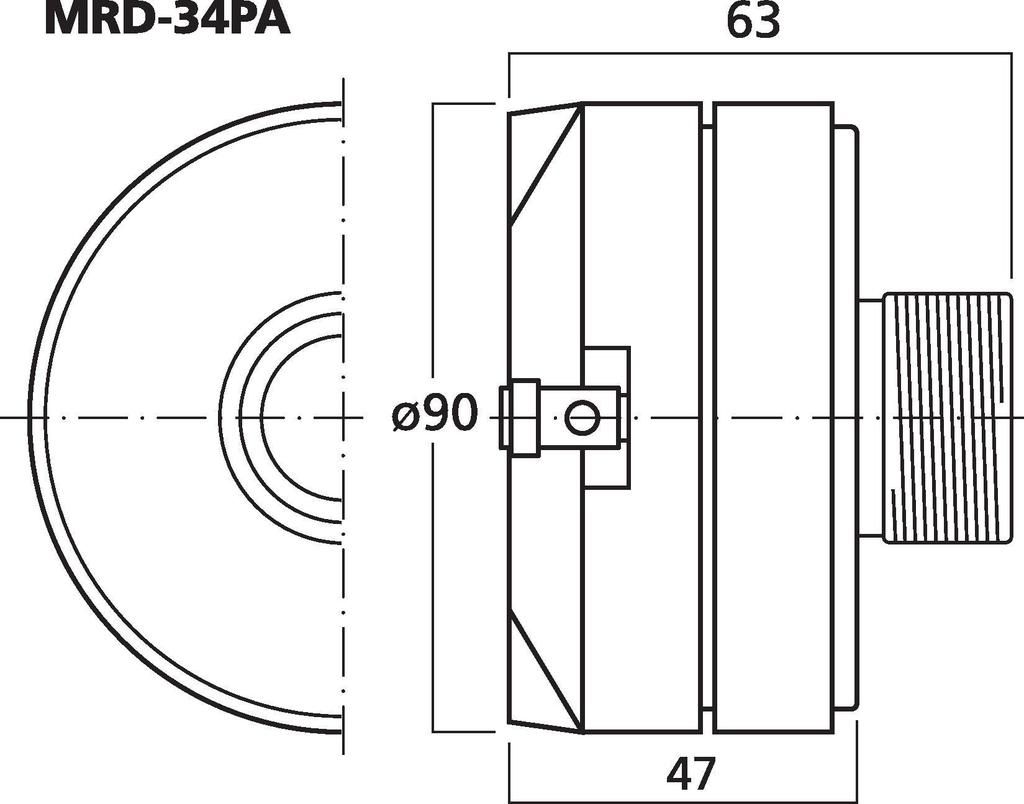

| Dimensions | Ø 90 mm x 63 mm |
| Outside diameter | Ø 90 mm |
| Width | Ø 90 mm |
| Depth | 63 mm |
| Colour | silver/black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.945 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packing dimensions (W x H x L) | 0.09 x 0.07 x 0.09 m |
| Gross weight | 0.976 kg |
| Net weight | 0.945 kg |
