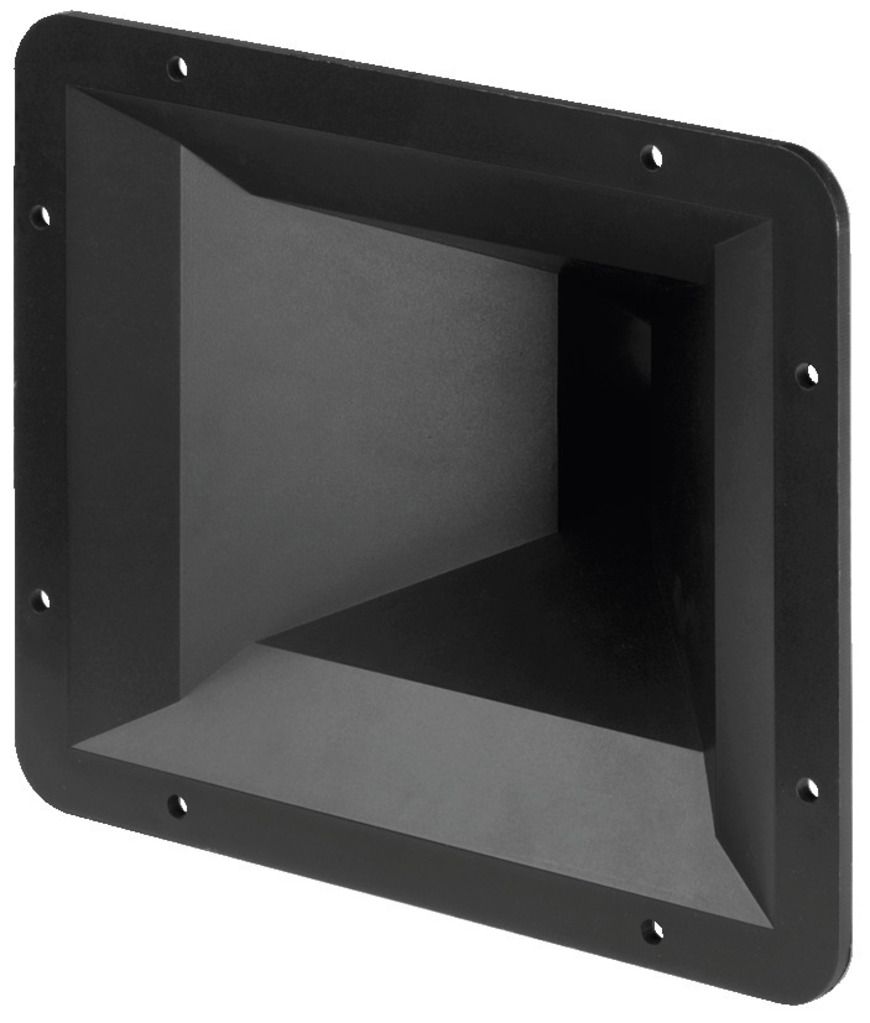

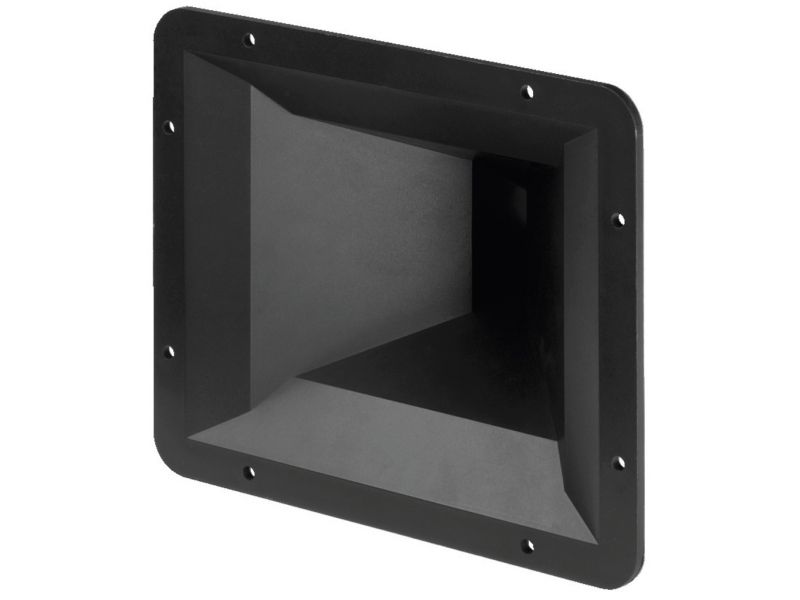

MRH-83
Cod EAN: 4007754172027
PA mid-high range horn for MRD-80 35 mm (1⅜") standard threadPlasticCD design (constant directivity)Effective throat: 25 mm (1")
MRH-83
PA mid-high range horn for MRD-80
- 35 mm (1⅜") standard thread
- Plastic
- CD design (constant directivity)
- Effective throat: 25 mm (1")
Parametrii
| Description | mid-high range horn |
| Material | plastic |
| Frequency range | 1,800-18,000 Hz |
| Crossover frequency | 1,800 Hz |
| Radiation angle (vert./hor.) | 60°/90° |
| Radiation angle, vertical | 60° |
| Radiation angle, horizontal | 90° |

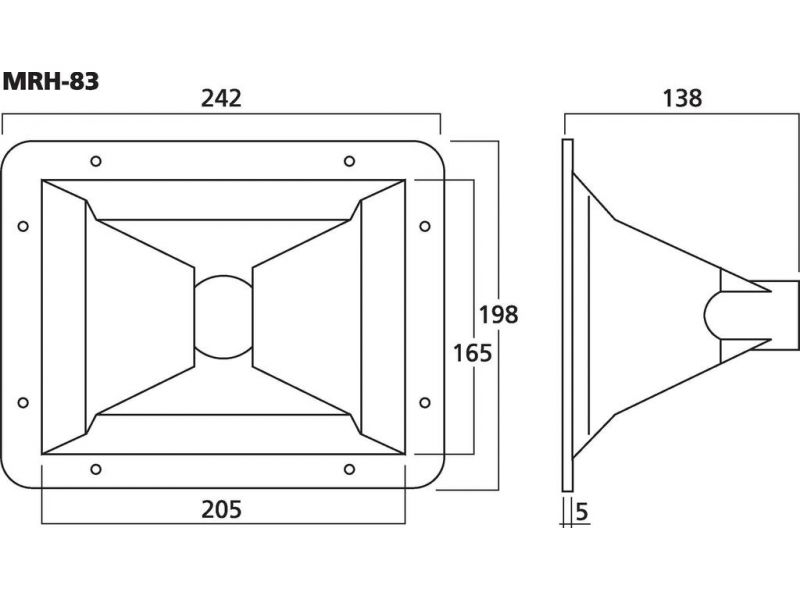

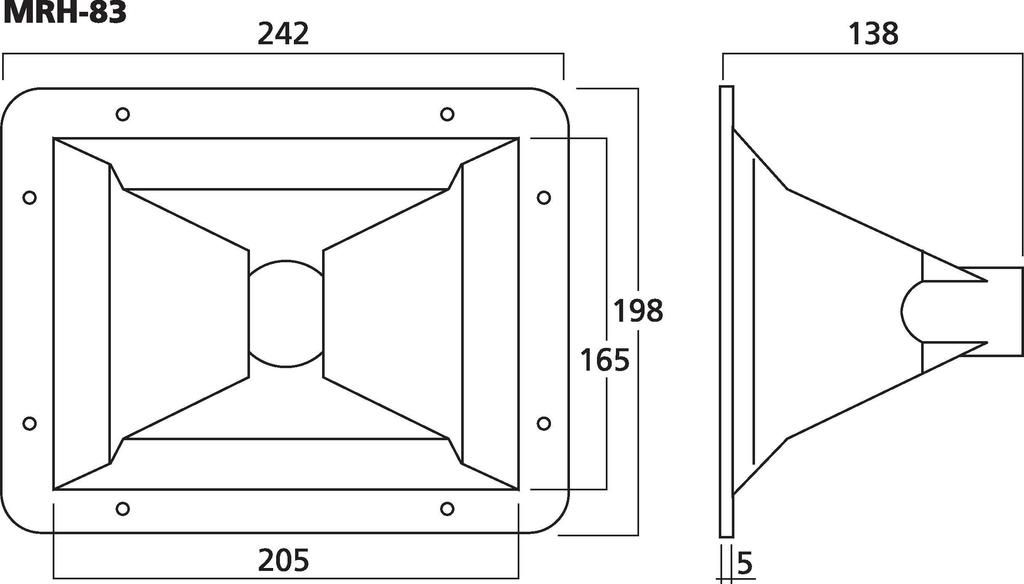

| Mounting cutout | 205 x 165 mm |
| Mounting depth | 135 mm |
| Dimensions | 242 x 198 x 138 mm |
| Height | 198 mm |
| Width | 242 mm |
| Depth | 138 mm |
| Weight | 270 g |
