MXT-52MP3
Cod EAN: 4007754261387
Mixer with integrated MP3 player, for flush-mounting into walls. 2 balanced microphone/line inputs (XLR), each with gain control and selectable phantom power 2 line inputs (RCA L/R) 1 aux input (3.5 mm jack) Integrated MP3 player with USB port and...

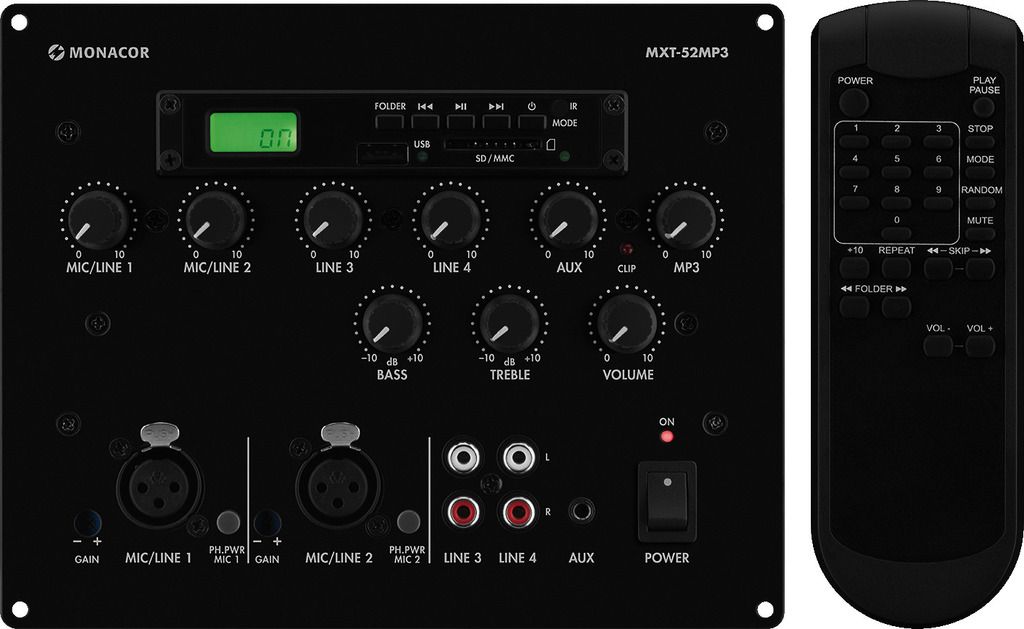

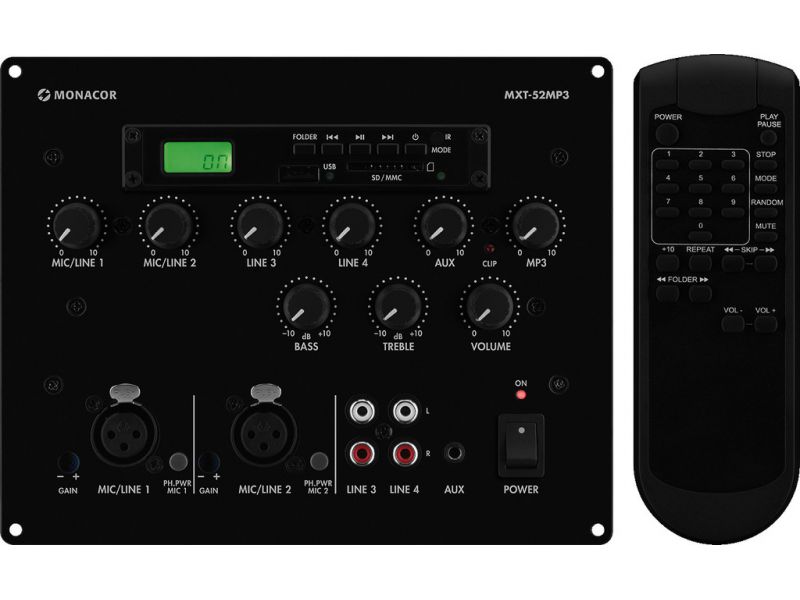

MXT-52MP3
Mixer with integrated MP3 player,
for flush-mounting into walls.
- 2 balanced microphone/line inputs (XLR), each with gain control and selectable phantom power
- 2 line inputs (RCA L/R)
- 1 aux input (3.5 mm jack)
- Integrated MP3 player with USB port and SD/MMC card slot, including remote control
- Each input with level control
- Output with 2-way tone control and level control
- LED for indicating clip and operating status
- Metal housing with rear cover for protection against dirt
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| No. of channels | 6 |
| No. of inputs | 5 |
| Mic input | 1 mV, 2 x XLR, bal. |
| Line input | 230 mV, 2 x XLR, bal. 160 mV, 2 x RCA L/R |
| Aux input | 160 mV, 1 x 3.5 mm jack |
| Master output | 1-10 V, terminal, mono, bal. |
| USB | yes |
| Frequency range | 20-20,000 Hz |
| THD | < 0.03% |
| S/N ratio | > 78 dB |
| Equalizer bass | ±10 dB/100 Hz |
| Equalizer treble | ±10 dB/12 kHz |
| Phantom power | 19 V |
| Media player | MP3, USB |
| Power supply | DC/˜ 24 V/250 mA |
| Mains voltage | 24 V |
| Admiss. ambient temp. | 0-40 °C |

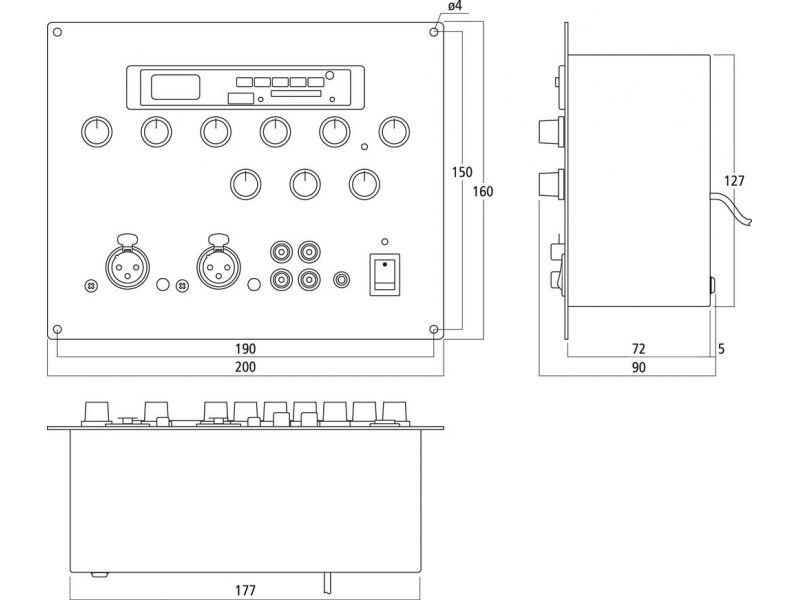

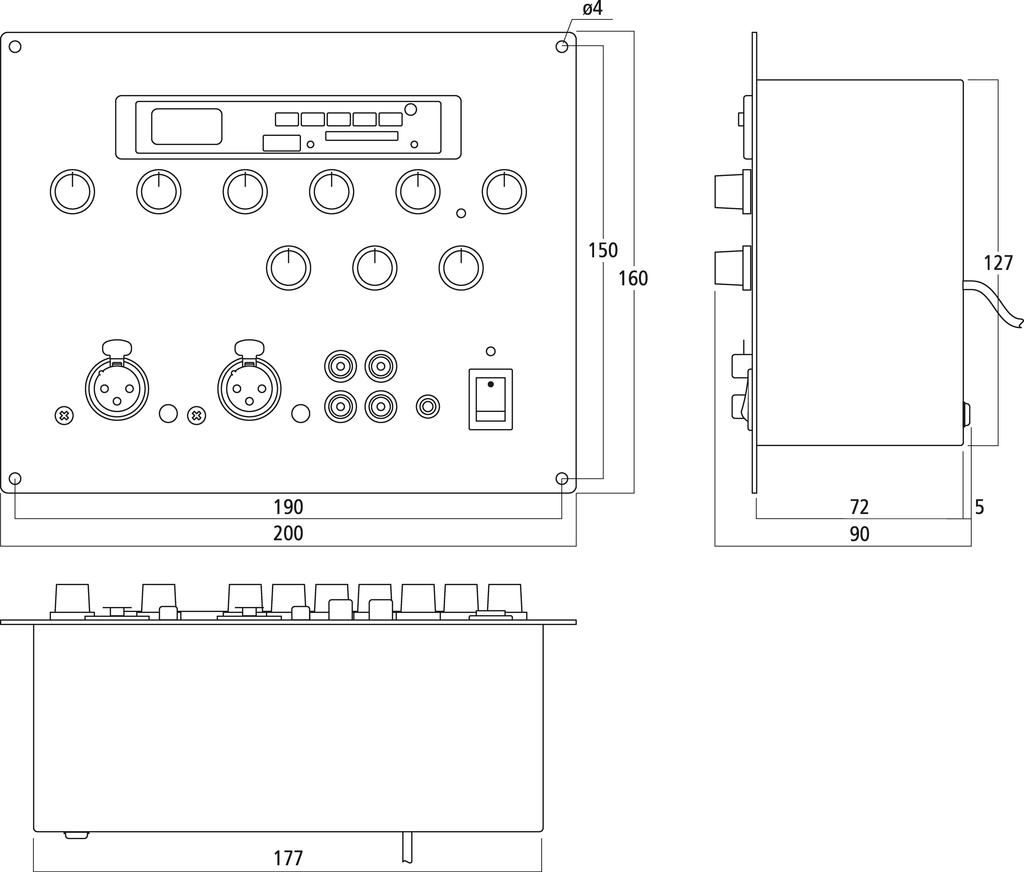

| Dimensions | 200 x 160 x 90 mm |
| Width | 200 mm |
| Height | 160 mm |
| Depth | 90 mm |
| Weight | 1.25 kg |
| Packaging dimensions (W x H x L) | 0.22 x 0.145 x 0.265 m |
| Gross weight | 1.53 kg |
| Net weight | 1.276 kg |
