NTE-1

Cod EAN: 4007754208764

Audio transformer 1:1 for microphone signals, from NEUTRIK. Very compact design, e.g. also suitable for installation into connector housings Unshielded version with bare wire connections (70 mm) Wideband version Balance adjustment Galvanic isolatio...

Citeste mai mult

Intreaba despre produs
Cumpara acum

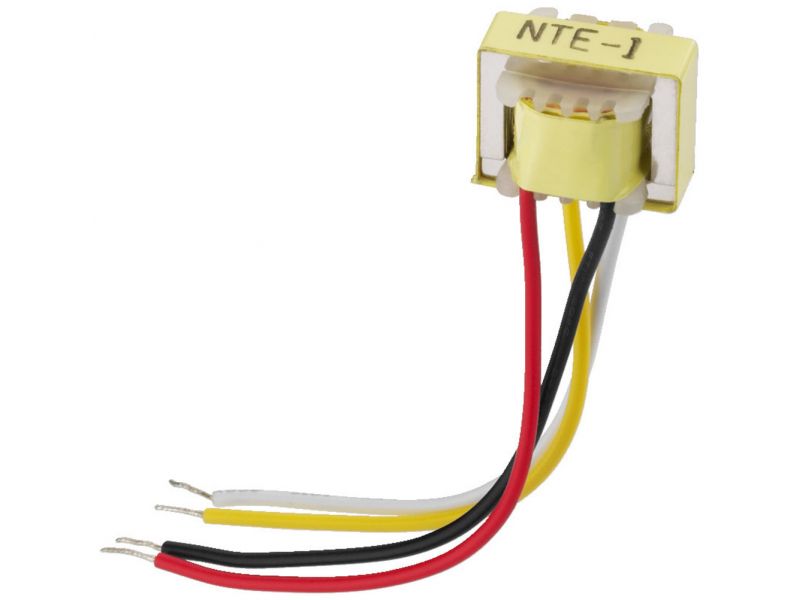

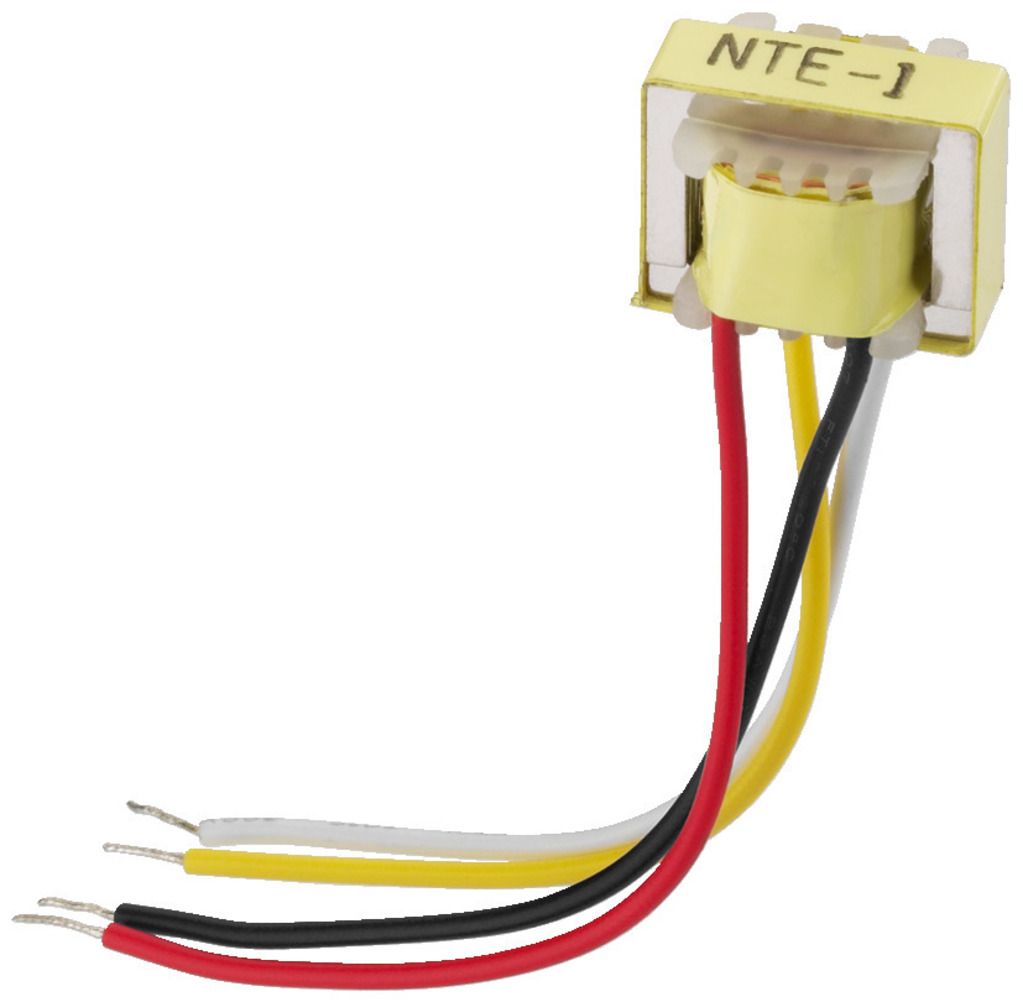

NTE-1

Audio transformer 1:1 for microphone signals,
from NEUTRIK.
  • Very compact design, e.g. also suitable for installation into connector housings
  • Unshielded version with bare wire connections (70 mm)
  • Wideband version
  • Balance adjustment
  • Galvanic isolation to avoid/eliminate hum loops
  • Max. input voltage: 550 mV (1% THD/50 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Parametrii

Description transformer
Frequency range 20-20,000 Hz
Input signal 50 mV

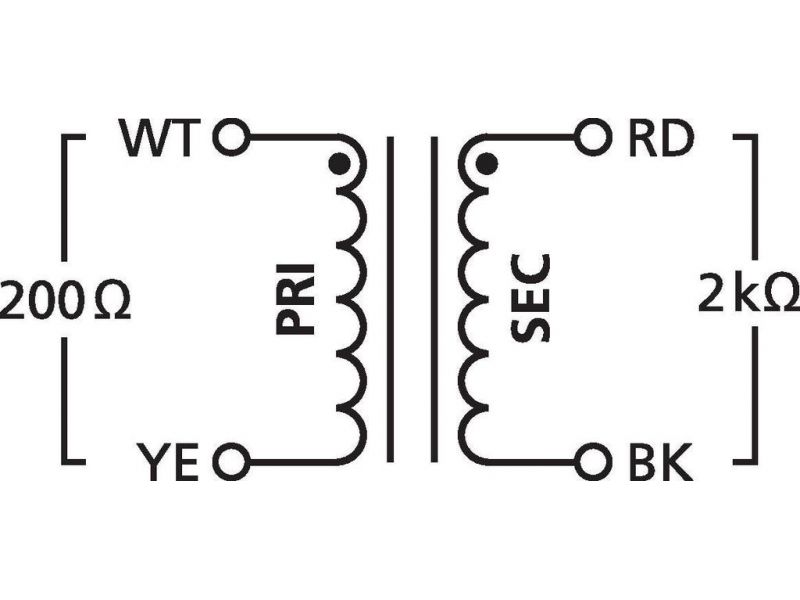

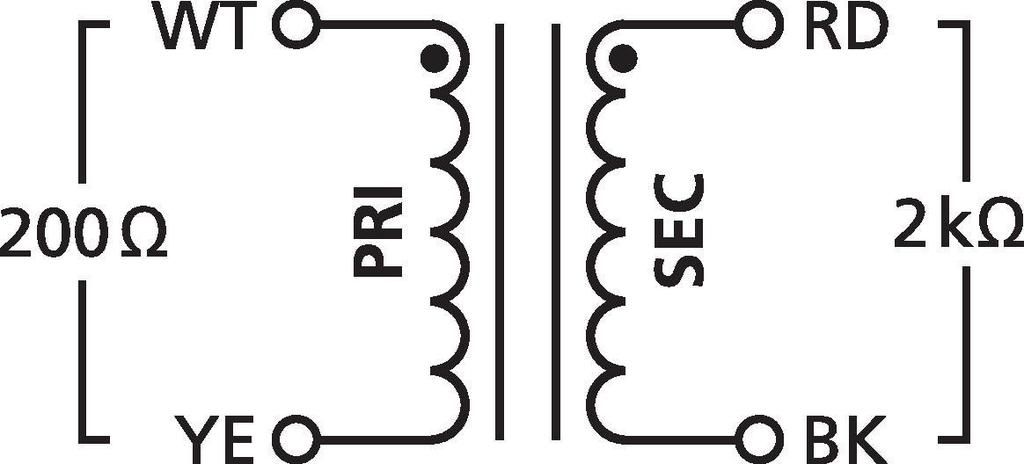

Input impedance 200 Ω
Output impedance 2 kΩ
Transmission ratio 1:1
Dimensions 14 x 11 x 12 mm(w/o cable)
Weight 6 g

Fisiere de descarcat

Fisa produsului NTE-1
