PM-2/+-50UA

Cod EAN: 4007754020397

Moving coil panel meter With mirror scale All-plastic housing Quality class 2 Zero point correction Prewired for illumination Measuring range: ± 0.05 mA For illumination purposes, these panel meters can subsequently be fitted with two LEDs with...

Citeste mai mult

Intreaba despre produs
Cumpara acum

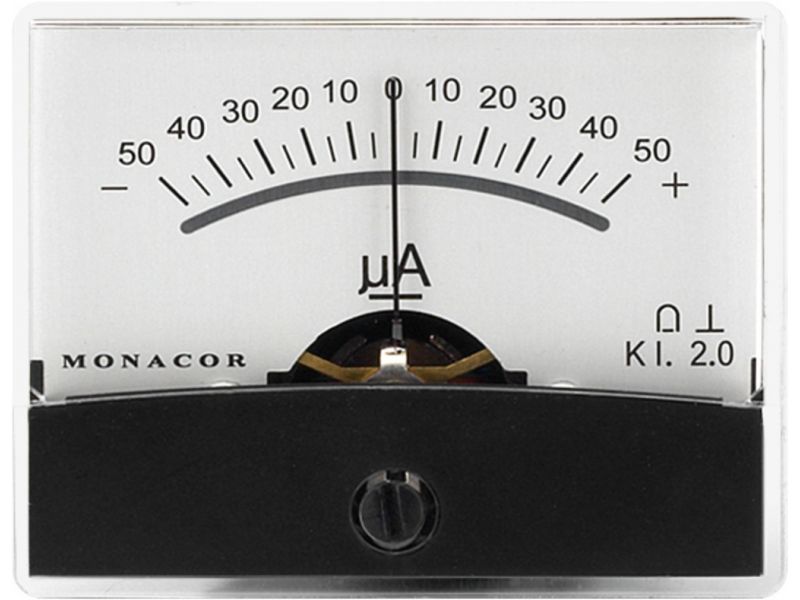

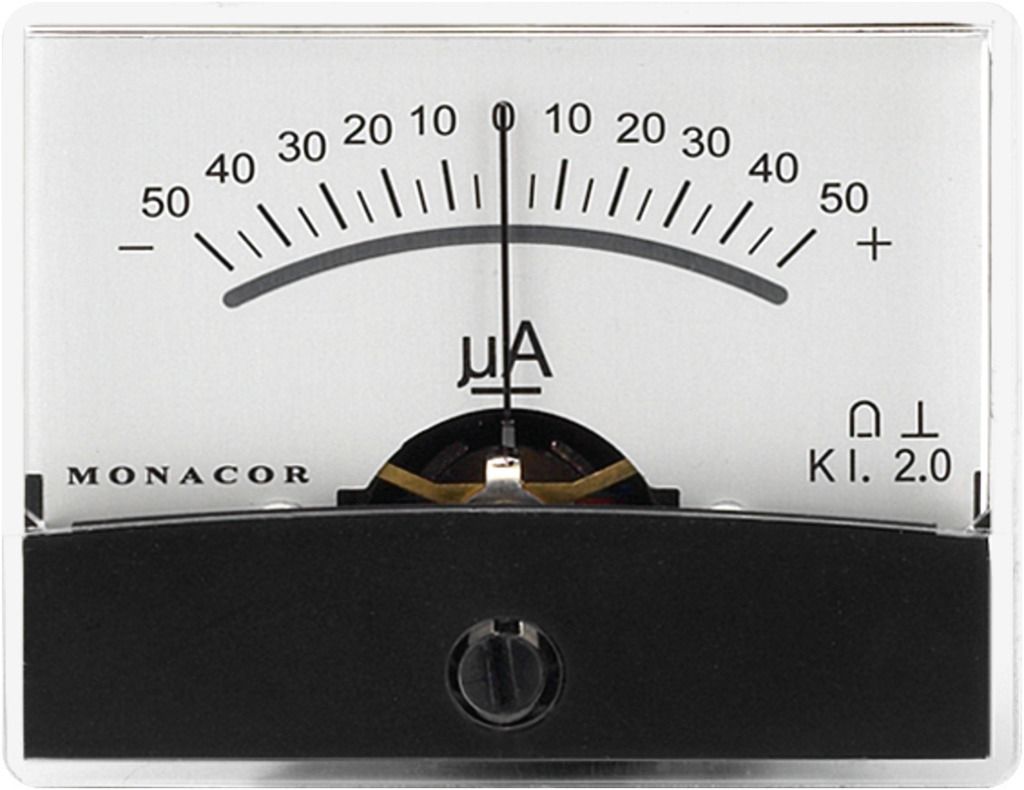

PM-2/+-50UA

Moving coil panel meter
  • With mirror scale
  • All-plastic housing
  • Quality class 2
  • Zero point correction
  • Prewired for illumination
  • Measuring range: ± 0.05 mA
For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Parametrii

Measuring range ± 0.05 mA
Internal resistance 1.9 kΩ
Dimensions display 60.3 x 46.3 mm
Mounting cutout Ø 37.5 mm
Mounting depth 23 mm

Fisiere de descarcat

Fisa produsului PM-2/+-50UA Manual de utilizare
