WALL-05T/SW

Cod EAN: 4007754261257

Pair of 2-way PA speaker systems Wall speaker with plastic cabinet in black 4 power taps as well as switchable to 8 Ω operation 13 cm (5") bass-midrange speaker and 12 mm (½") dome tweeter High sound quality and speech intelligibility Mounting bracke...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WALL-05T/SW

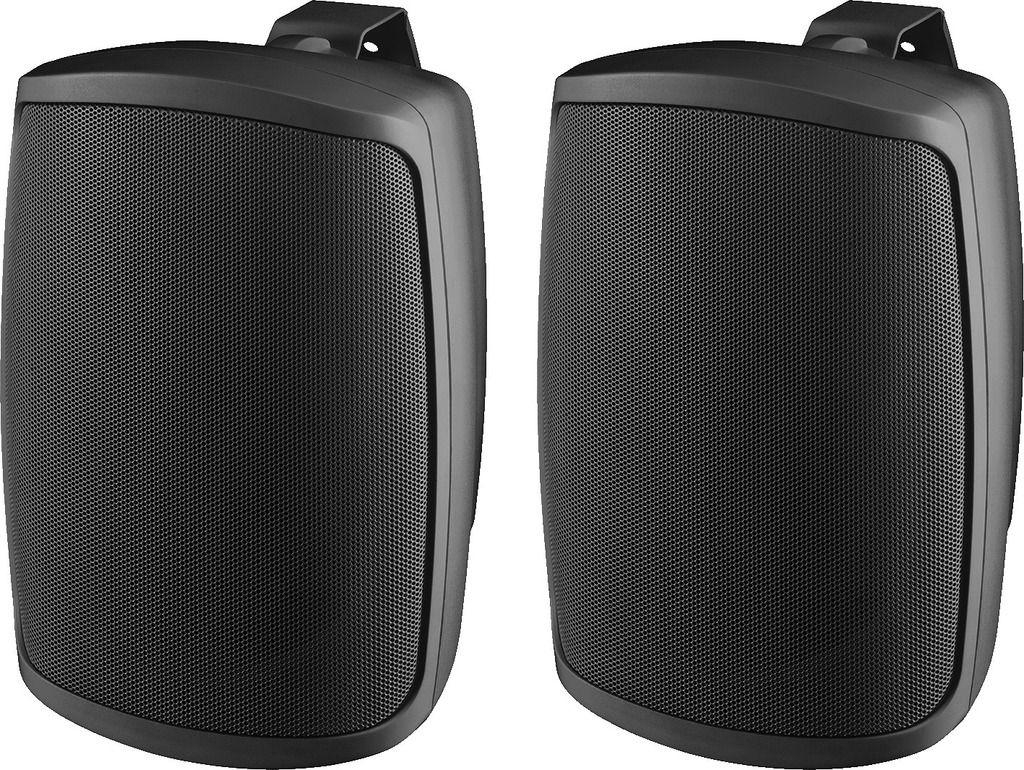

Pair of 2-way PA speaker systems
  • Wall speaker with plastic cabinet in black
  • 4 power taps as well as switchable to 8 Ω operation
  • 13 cm (5") bass-midrange speaker and 12 mm (½") dome tweeter
  • High sound quality and speech intelligibility
  • Mounting bracket for pivoting and tilting
  • Connecting terminal with cover

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 80 W
Power rating (RMS) 16/8/4/2 W (100 V) 40 W (8 Ω)
Impedance 8 Ω
Frequency range 80-20,000 Hz
System 2-way
Bass speaker 13 cm (5") bass-midrange speaker
Tweeter 12 mm (½") dome tweeter
Number of speakers 2
Speaker size 13 cm (5")
SPL 89 dB/W/m
Max. rated SPL 104 dB
Radiation angle/beam angle H: 110°/V: 90°
Radiation angle, horizontal 110°
Radiation angle, vertical 90°
Housing material plastic
Colour black
Mounting device mounting bracket
Protection class IP65
Admiss. ambient temp. 0-40 °C

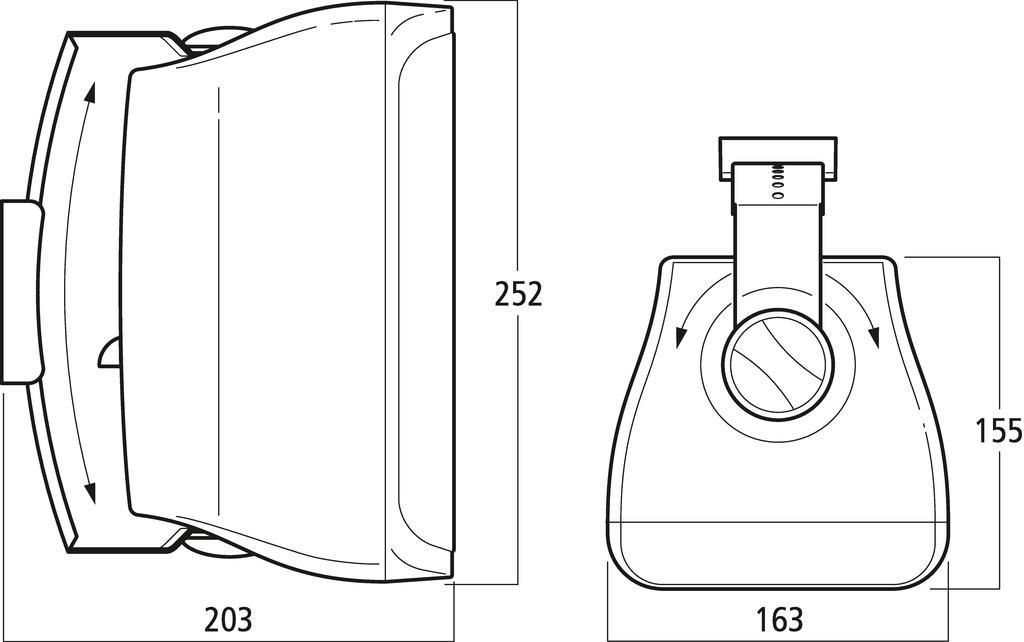

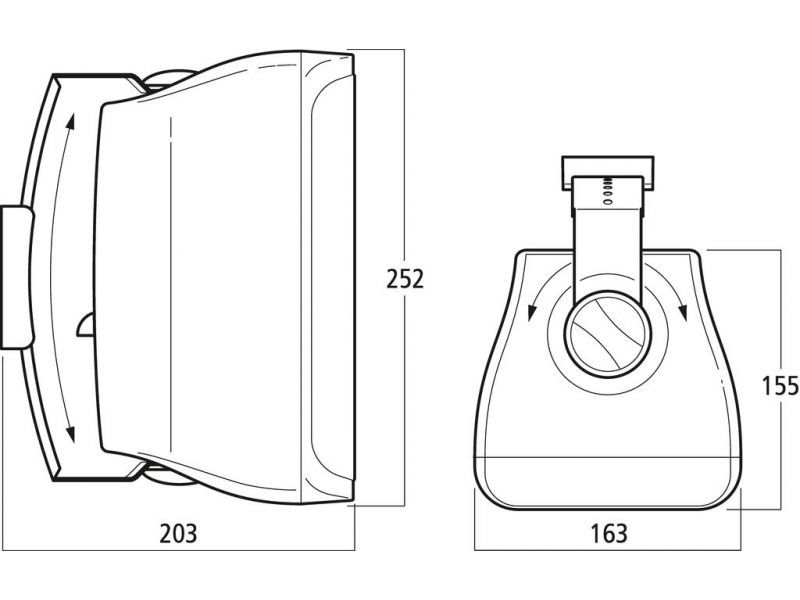

Dimensions 163 x 252 x 203 mm (with bracket)
Width 163 mm
Height 252 mm
Depth 203 mm
Weight 2.6 kg
Inputs spring-load. speaker term.
Other features for pivoting and tilting
Packaging dimensions (W x H x L) 0.2 x 0.28 x 0.425 m
Gross weight 5.73 kg
Net weight 5.24 kg

Fisiere de descarcat

Fisa produsului WALL-05T/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
