RBT-1000

Cod EAN: 4007754226898

Ribbon tweeter for PA and hi-fi, 40 W, 6 Ω Magnetostatic speaker with waveguide Tweeter system from the L-RAY/1000 Fine and brilliant reproduction of the high frequencies For use from 3,000 Hz (hi-fi) or 4,000 Hz (PA) on via 12 dB filter Diecast alum...

Citeste mai mult

Intreaba despre produs
Cumpara acum


RBT-1000

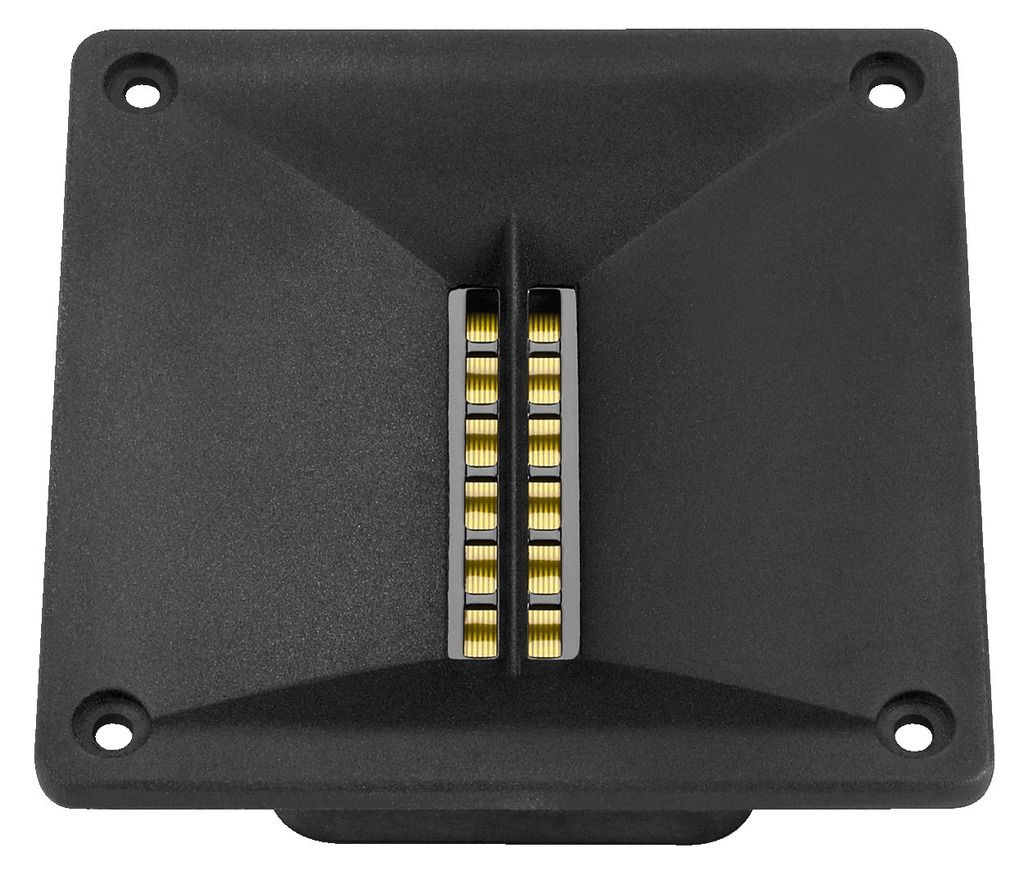

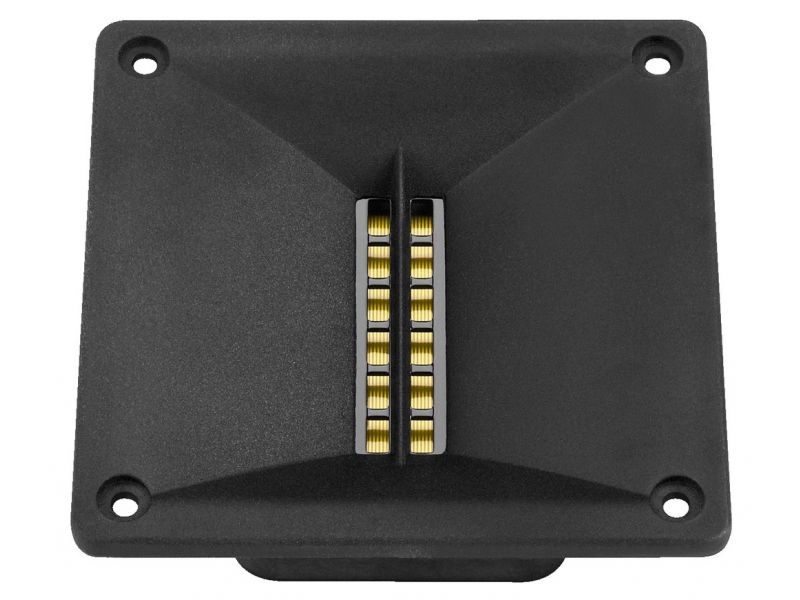

Ribbon tweeter for PA and hi-fi, 40 W, 6 Ω
  • Magnetostatic speaker with waveguide
  • Tweeter system from the L-RAY/1000
  • Fine and brilliant reproduction of the high frequencies
  • For use from 3,000 Hz (hi-fi) or 4,000 Hz (PA) on via 12 dB filter
  • Diecast aluminium horn front attachment, neodymium magnet
  • Vertical or horizontal mounting possible due to square front panel
  • Installation into a sealed airtight housing is recommended
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 6 Ω
Transmission technology cable
Frequency range fx-22,000 Hz
Resonant frequency (fs) 1.6 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) > 3,000 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 96 dB/W/m
DC resistance (Re) 6 Ω
Magnet diameter magnetostatic speaker

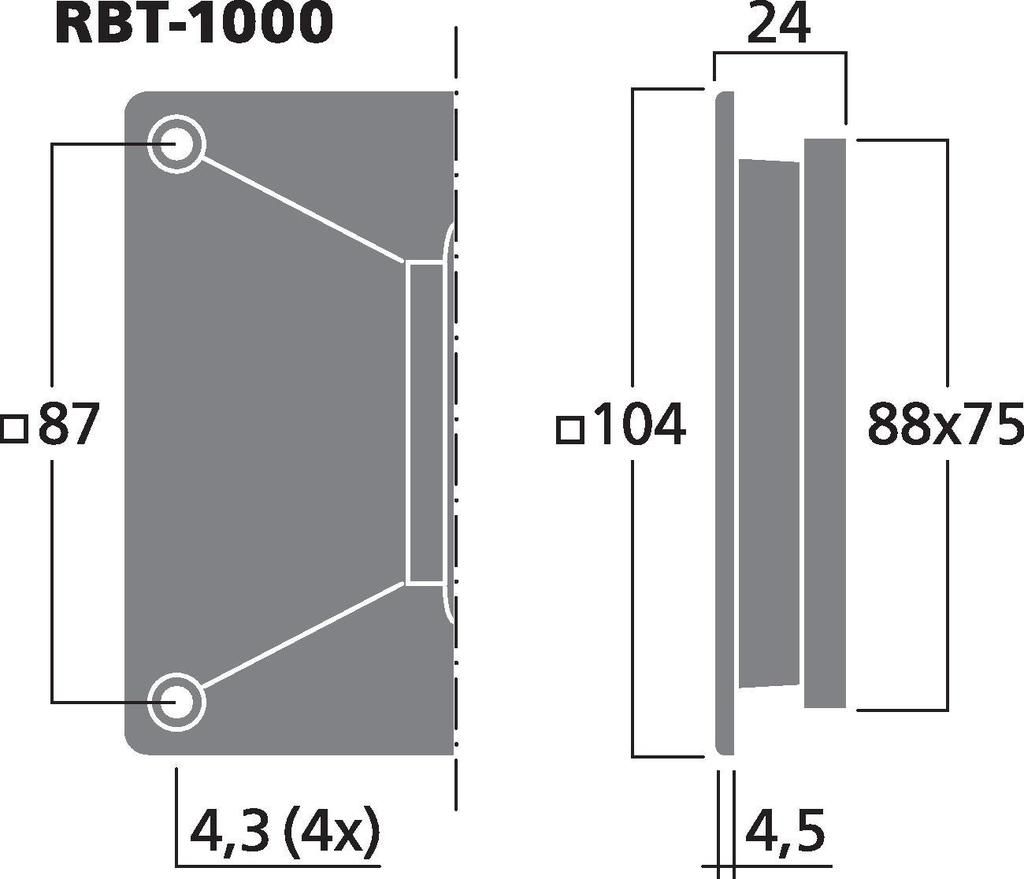

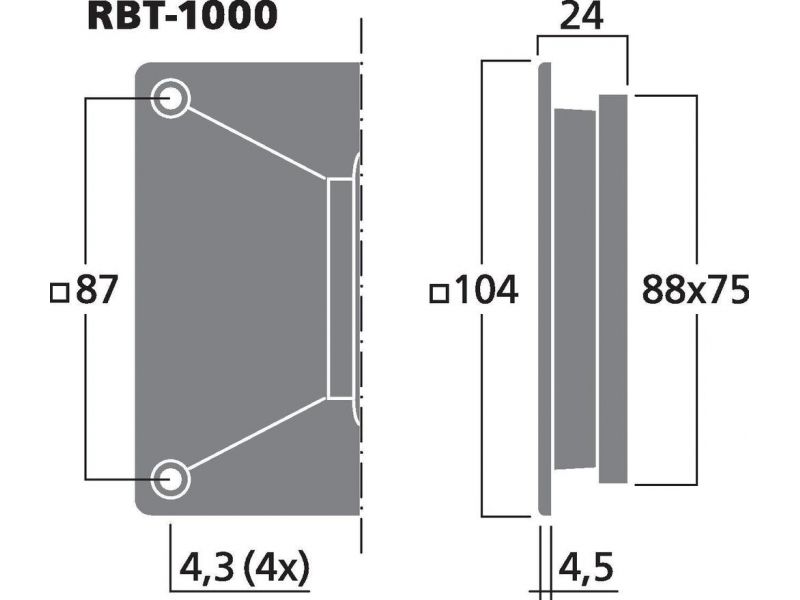

Mounting cutout 89 x 76 mm
Mounting depth 24 mm
Hole spacing X-axis 87 mm
Hole spacing Y-axis 87 mm
Dimensions 104 x 104 x 24 mm
Width 104 mm
Height 104 mm
Depth 24 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.24 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.12 x 0.04 x 0.12 m
Gross weight 0.263 kg
Net weight 0.237 kg

Fisiere de descarcat

Fisa produsului RBT-1000 konformitaetserklaerung-ce konformitaetserklaerung-ukca
