SP-4/60PRO

Cod EAN: 4007754226881

PA midrange speaker, 30 W, 8 Ω 10 cm (4") PA midrange speaker Midrange speaker from the L-RAY/1000 Very linear and wide frequency range Excellent sound and dynamic characteristics Very low crossover frequency at subwoofer systems possible due to a gr...

Citeste mai mult

Intreaba despre produs
Cumpara acum

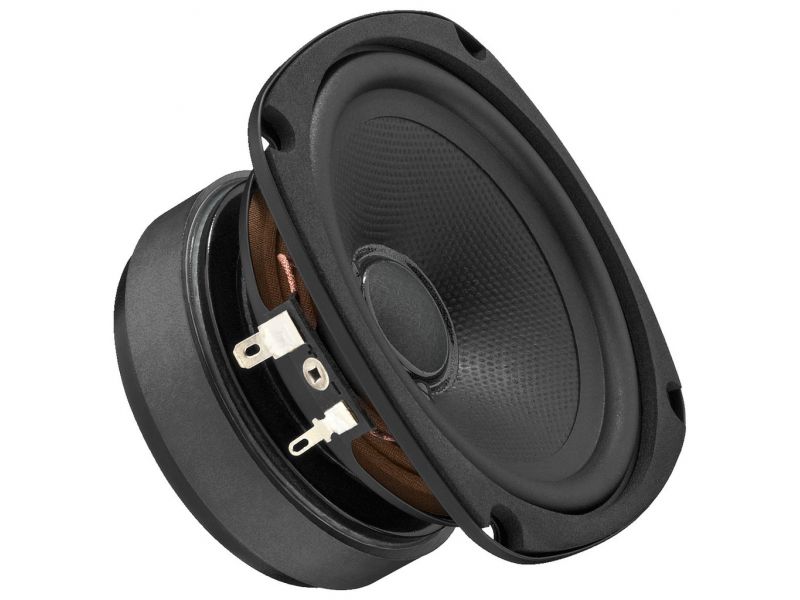

SP-4/60PRO

PA midrange speaker, 30 W, 8 Ω
  • 10 cm (4") PA midrange speaker
  • Midrange speaker from the L-RAY/1000
  • Very linear and wide frequency range
  • Excellent sound and dynamic characteristics
  • Very low crossover frequency at subwoofer systems possible due to a great linear excursion for a midrange system
  • Ideally suited for small PA systems, column speakers and also as a hi-fi midrange speaker
HOBBY HiFi 01/2013
“Impressively low THD values for a crystal-clear reproduction of the midrange.”

HiFi-Selbstbau 07/2012
“Attractive price, unobtrusive, yet very good. This perfectly describes the midrange speaker SP-4/60PRO from IMG Stage Line. You can often be more successful when using your head instead of excessive material, ... The staff from MONACOR know exactly why they accommodate two of the SP-4/60PRO in the PA combination L-RAY/1000. We have always been curious as to why they only used a 10 cm speaker - but now we know why: the speaker is capable of a powerful bass reproduction without any kind of hesitation. They have done EVERYTHING right.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

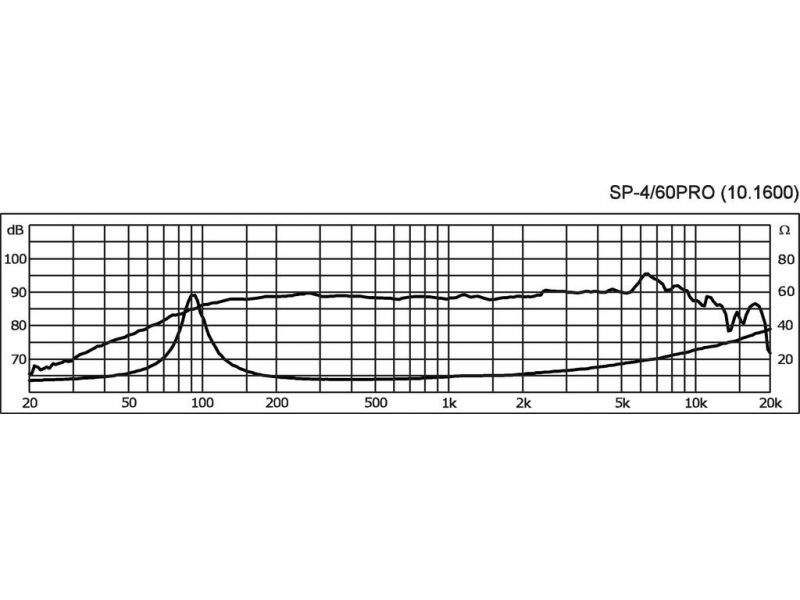

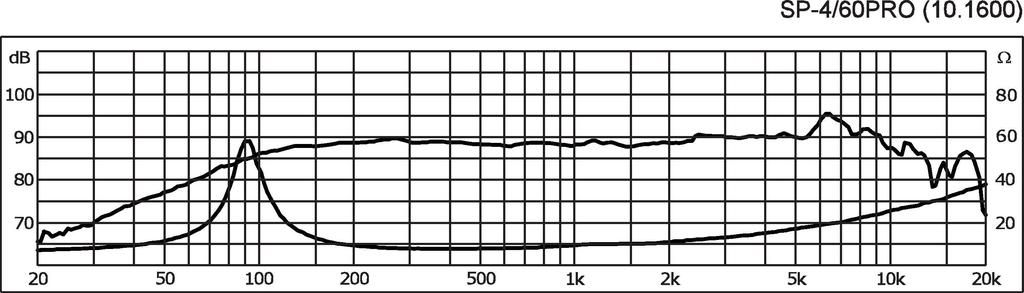

Frequency range f3-10,000 Hz
Resonant frequency (fs) 92 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 90 dB/W/m
Suspension compl. (Cms) 0.47 mm/N
Moving mass (Mms) 6.3 g
Mech. Q factor (Qms) 5.35
Electr. Q factor (Qes) 0.67
Total Q factor (Qts) 0.60
Equivalent volume (Vas) 3.0 l
DC resistance (Re) 6.76 Ω
Force factor (BxL) 5.85 Tm
Voice coil induct. (Le) 0.3 mH
Voice coil diameter Ø 25 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 2.3 mm
Eff. cone area (Sd) 68 cm2
Magnet weight 370 g
Magnet diameter Ø 86 mm

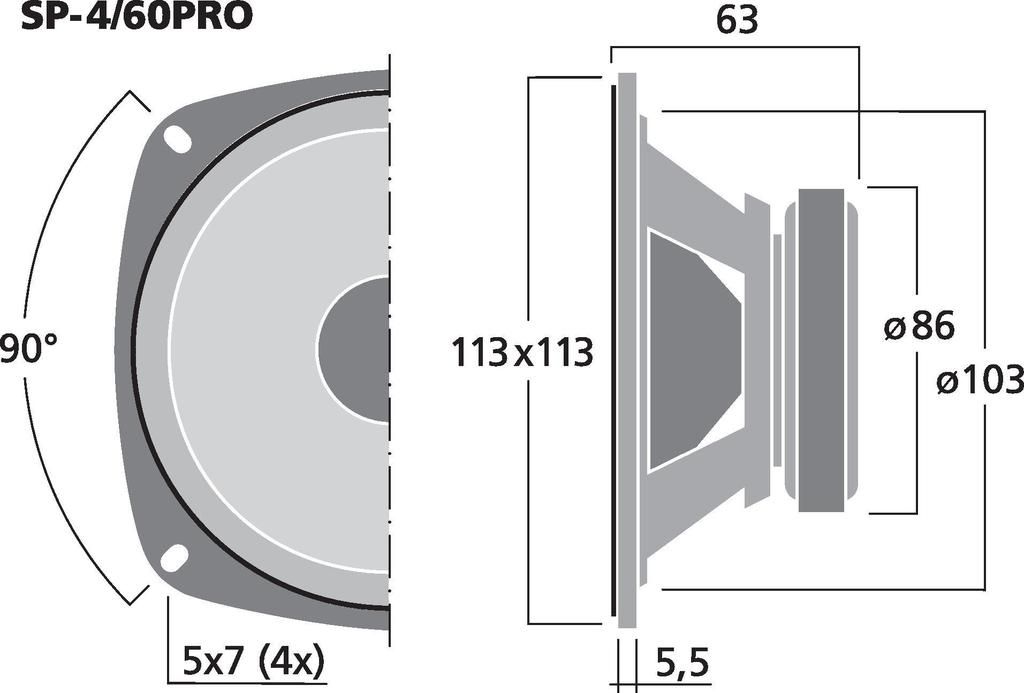

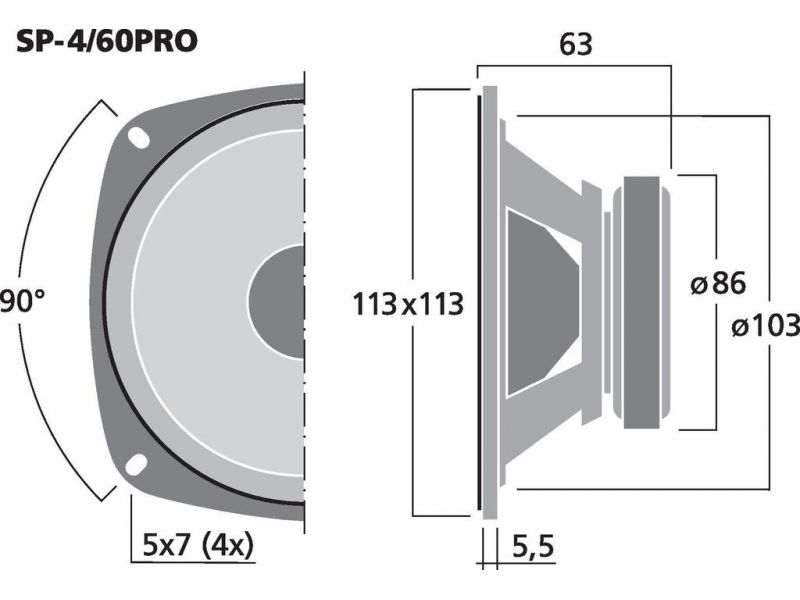

Mounting cutout Ø 103 mm
Mounting depth 57.5 mm
Dimensions 113 x 113 x 63 mm
Width 113 mm
Height 113 mm
Depth 63 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.9 kg
Packing unit 1
Type of speaker 4"
Packaging dimensions (W x H x L) 0.135 x 0.1 x 0.135 m
Gross weight 1.01 kg
Net weight 0.888 kg

Fisiere de descarcat

Fisa produsului SP-4/60PRO konformitaetserklaerung-ce konformitaetserklaerung-ukca
