RBT-95

Cod EAN: 4007754196542

Ribbon tweeter, 30 W, 8 Ω Magnetostatic speakers of a high efficiency Perfectly fine dynamic reproduction of the high frequencies and the brilliance frequency range Power capability of the system can considerably be increased by voltage dividers and...

Citeste mai mult

Intreaba despre produs
Cumpara acum


RBT-95

Ribbon tweeter, 30 W, 8 Ω
  • Magnetostatic speakers of a high efficiency
  • Perfectly fine dynamic reproduction of the high frequencies and the brilliance frequency range
  • Power capability of the system can considerably be increased by voltage dividers and maybe higher crossover frequencies (level attenuations which take tweeters to the level of normal hi-fi systems)
  • Very light sound of low distortion which particularly improves the stereophony in applications from 5 kHz on
  • By adding a super tweeter above 8-10 kHz, e.g. even high-quality full range systems can be further improved

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

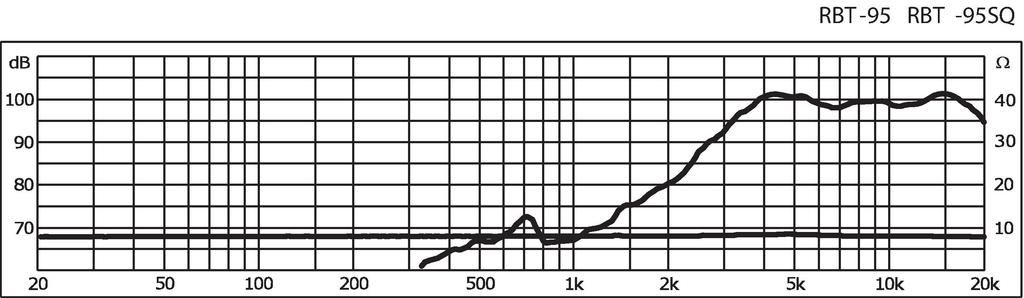

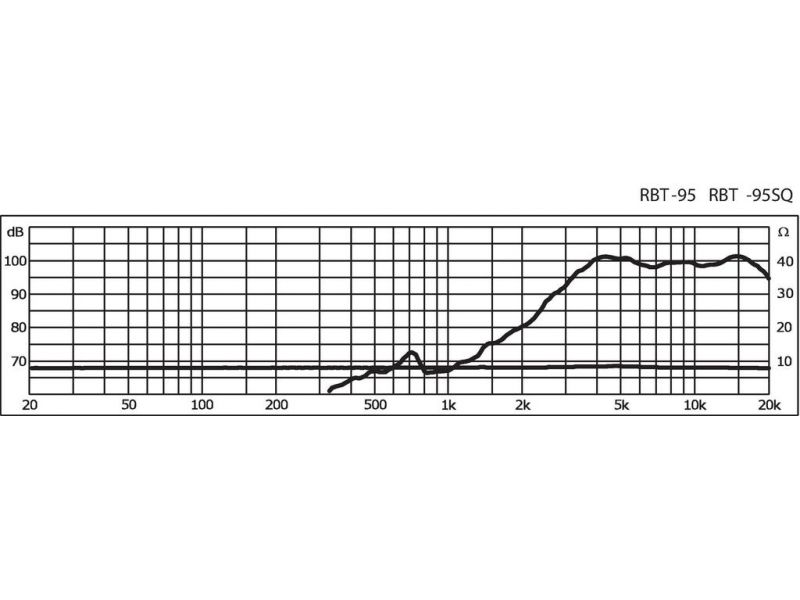

Frequency range fx-22,000 Hz
Resonant frequency (fs) 4,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 5,000 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 98 dB/W/m
Magnet diameter magnetostatic speaker

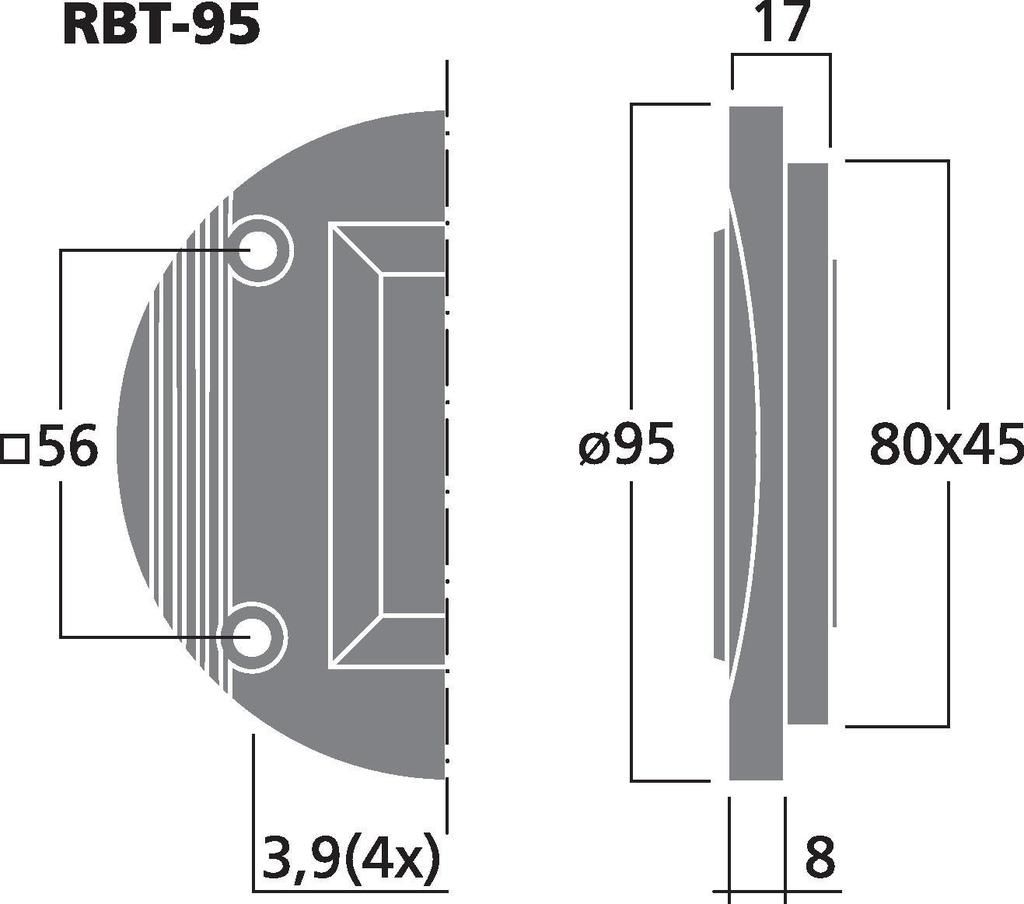

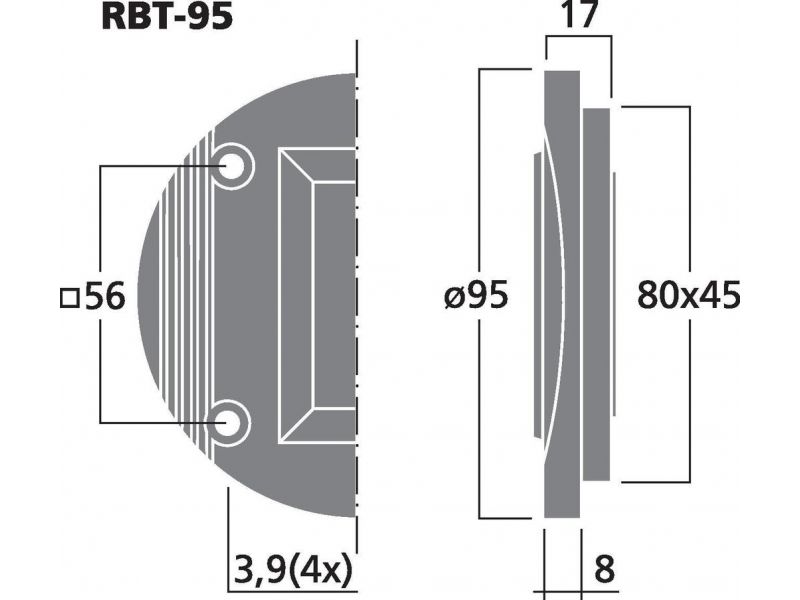

Mounting cutout 80 x 45 mm
Mounting depth 17 mm
Hole spacing X-axis 56 mm
Hole spacing Y-axis 56 mm
Dimensions Ø 95 x 17 mm
Outside diameter Ø 95 mm
Width Ø 95 mm
Height Ø 95 mm
Depth 17 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.11 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.105 x 0.045 x 0.105 m
Gross weight 0.141 kg
Net weight 0.11 kg

Fisiere de descarcat

Fisa produsului RBT-95 konformitaetserklaerung-ce konformitaetserklaerung-ukca
