SP-15A/402PA
Cod EAN: 4007754191073
PA bass speaker, 400 W, 8 Ω Of very high power capability 38 cm (15") professional bass speaker of long excursion Diecast basket Cone with water-repellent coating Very neat workmanship with front-facing basket Wide frequency response High efficiency...

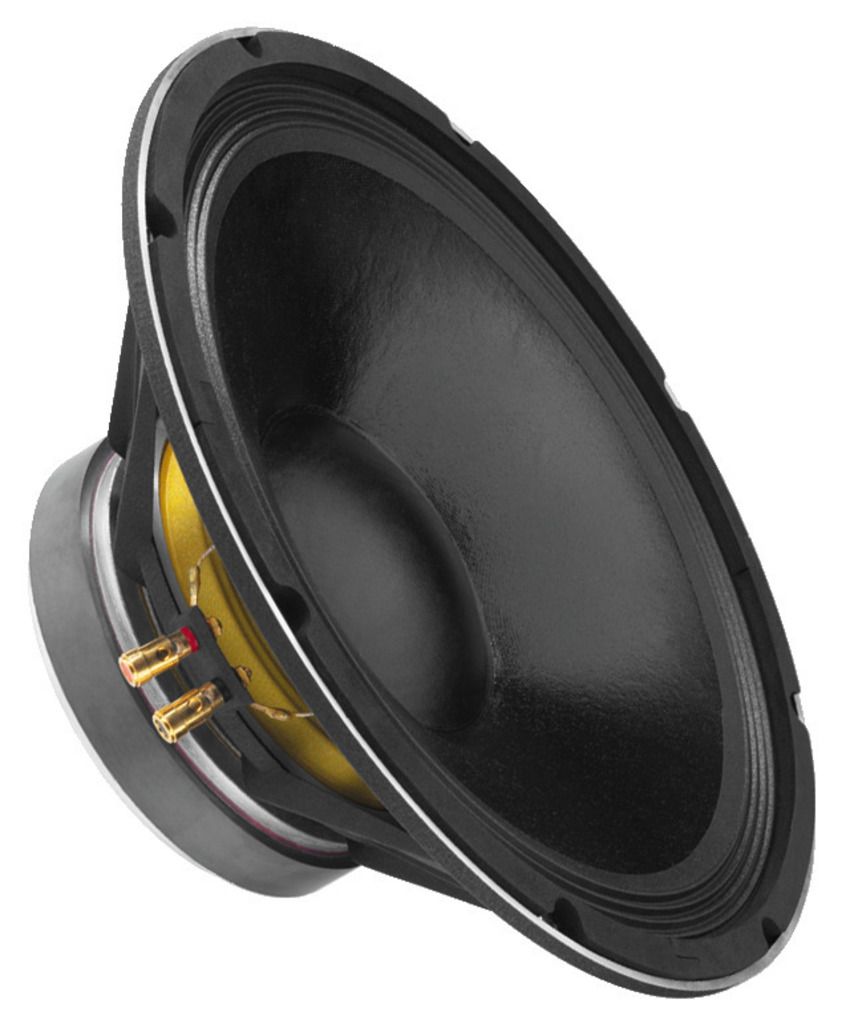

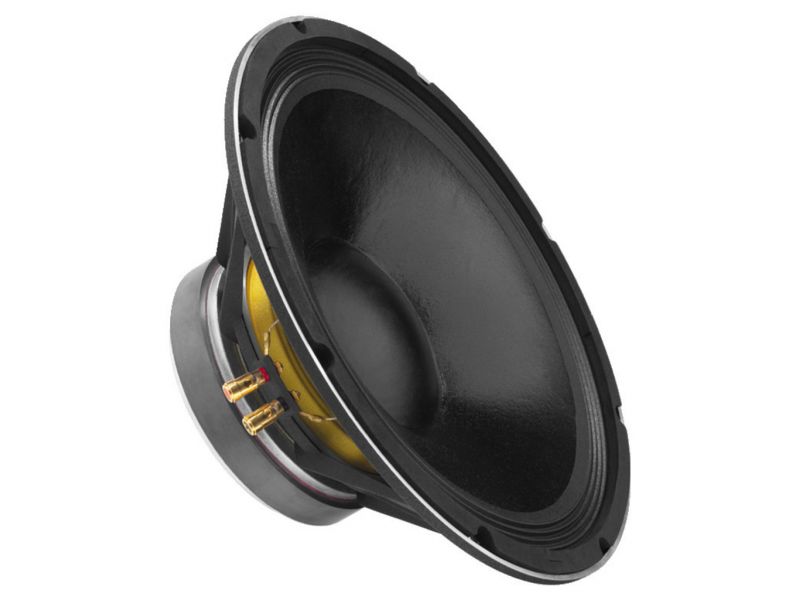

SP-15A/402PA
PA bass speaker, 400 W, 8 Ω
- Of very high power capability
- 38 cm (15") professional bass speaker of long excursion
- Diecast basket
- Cone with water-repellent coating
- Very neat workmanship with front-facing basket
- Wide frequency response
- High efficiency
- Excellent deep bass reproduction
- Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
- For bass-reflex cabinets of medium size from 80 litres on
- For all kinds of professional and semiprofessional PA applications
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

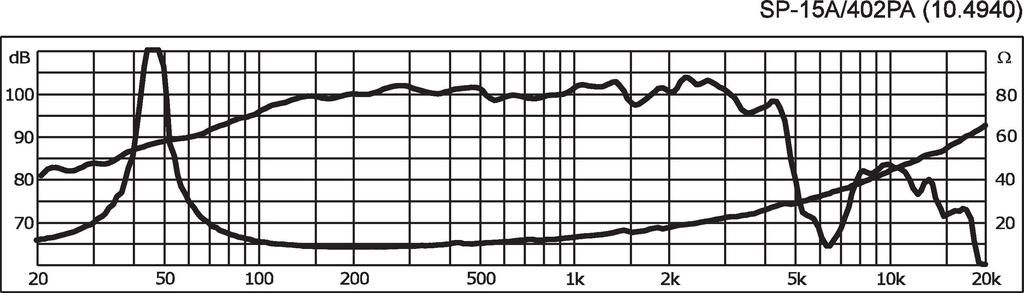

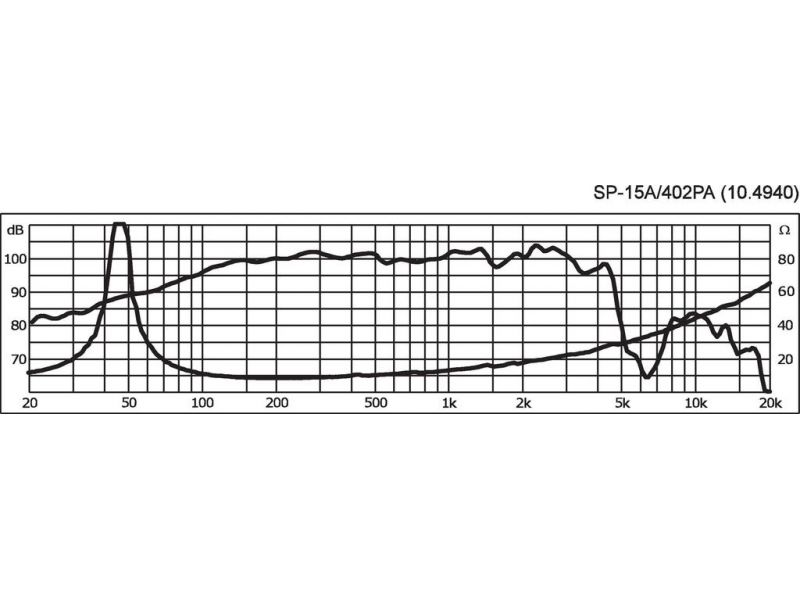

| Frequency range | f3-3,000 Hz |
| Resonant frequency (fs) | 36 Hz |
| Power rating (RMS) | 400 W |
| Peak music power output (MAX) | 800 W |
| SPL | 100 dB/W/m |
| Suspension compl. (Cms) | 0.22 mm/N |
| Moving mass (Mms) | 87 g |
| Mech. Q factor (Qms) | 7.45 |
| Electr. Q factor (Qes) | 0.33 |
| Total Q factor (Qts) | 0.31 |
| Equivalent volume (Vas) | 235 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 19.90 Tm |
| Voice coil induct. (Le) | 0.9 mH |
| Voice coil diameter | Ø 100 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 5 mm |
| Eff. cone area (Sd) | 881 cm2 |
| Magnet weight | 2.3 kg |
| Magnet diameter | Ø 190 mm |

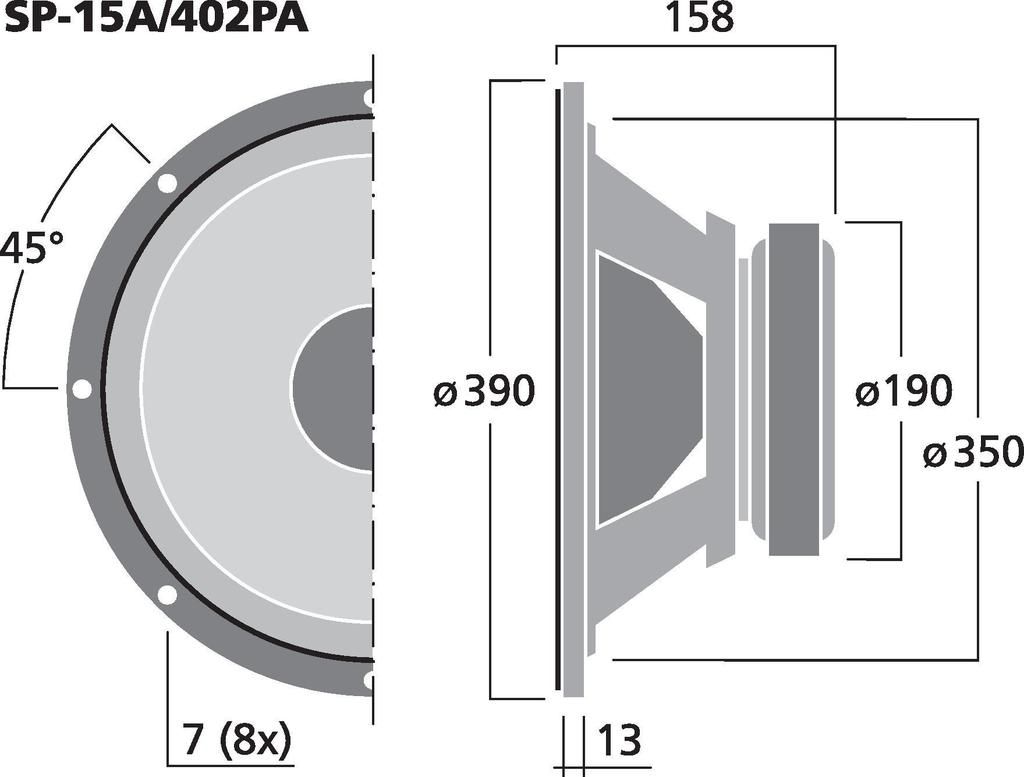

| Mounting cutout | Ø 350 mm |
| Mounting depth | 145 mm |
| Mounting hole diameter | Ø 370 mm |
| Dimensions | Ø 390 mm x 158 mm |
| Outside diameter | Ø 390 mm |
| Width | Ø 390 mm |
| Height | Ø 390 mm |
| Depth | 158 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 7.74 kg |
| Packing unit | 1 |
| Type of speaker | 15" |
| Packaging dimensions (W x H x L) | 0.415 x 0.21 x 0.415 m |
| Gross weight | 8.78 kg |
| Net weight | 7.74 kg |
