SP-310CX
Cod EAN: 4007754246582
2-way coaxial PA speaker, with integrated horn tweeter. 25 cm (10") PA bass speaker of high power capability and high efficiency Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver Excellent sound characteristi...

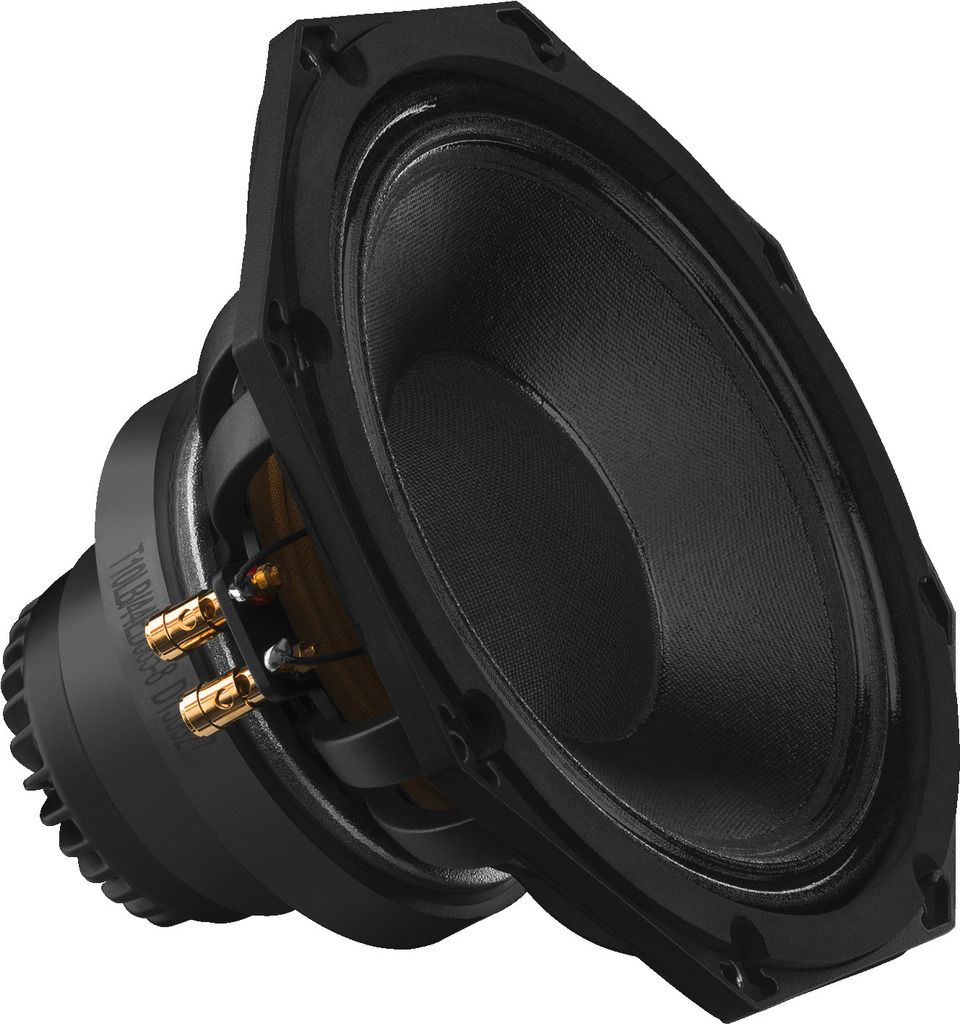

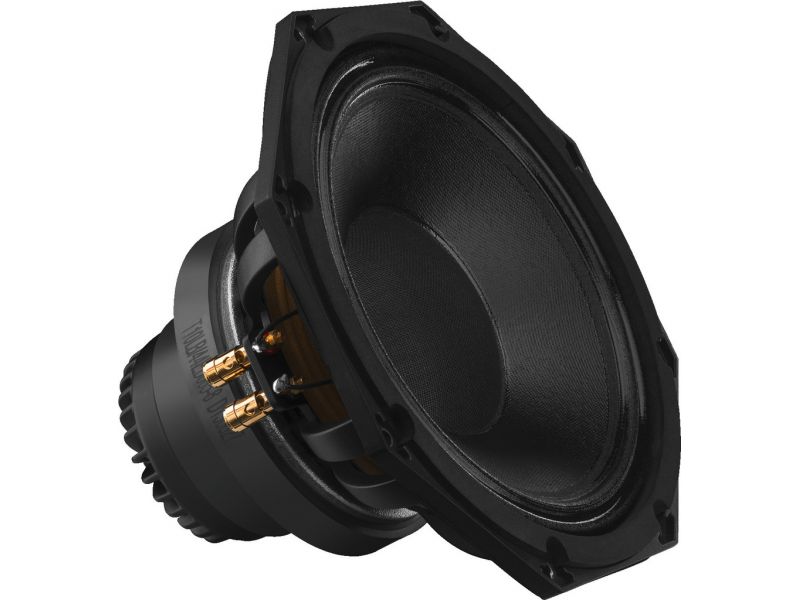

SP-310CX
2-way coaxial PA speaker,
with integrated horn tweeter.
- 25 cm (10") PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
- Excellent sound characteristics
- Robust diecast basket with rear-ventilated centering spider
- 64 mm (2½") heat-resistant voice coil on a polyamide voice coil former (TIL)
- Excellent and consistent radiation pattern
- Ideally suited for stage monitors or very compact full range speaker systems
- Operation only allowed with crossover network (recommended crossover frequency: >1,800 Hz)
Klang+Ton 02/2016
“The speaker system Studio 10 features a very neutral sound with great power reserves. Suitable as a studio monitor as well as for hi-fi applications of high requirements. The Studio 10 provides a well-balanced and neutral sound which achieves top results.” (SP-310CX in a project from K+T)
Klang+Ton 02/2016
The SP-310CX applied in the Studio 10, a project from K+T:
“The speaker system Studio 10 features a very neutral sound with great power reserves. Poor recordings are not enhanced, high-quality recordings show their full potential - a perfect tool!”
“The speaker system Studio 10 features a very neutral sound with great power reserves. Poor recordings are not enhanced, high-quality recordings show their full potential - a perfect tool!”
Klang+Ton 01/2016
“Despite its compact size, the thorough development resulted in a speaker system with a high power capability which can surely meet audiophile requirements. It is an ideal coaxial speaker for hi-fi and monitoring.”
Parametrii
| Impedance (Z) | 2 x 8 Ω |
| Transmission technology | cable |

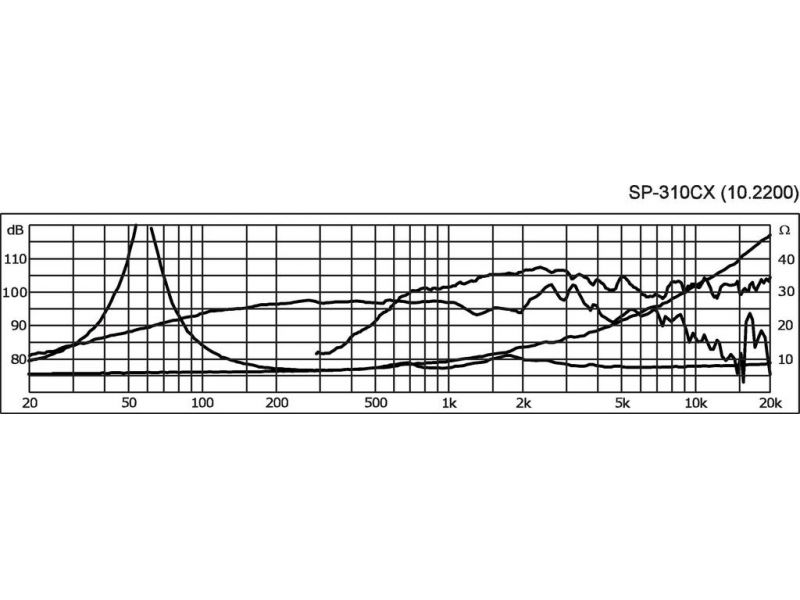

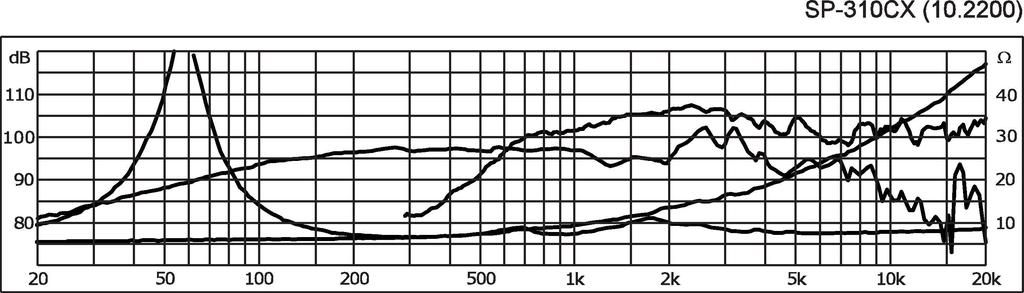

| Frequency range | f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter) |
| Resonant frequency (fs) | 60 Hz (bass), 700 Hz (tweeter) |
| Power rating (RMS) | 200 W (bass) / 50 W (tweeter) |
| Peak music power output (MAX) | 400 W (bass) / 100 W (tweeter) |
| SPL | 96 dB (bass) / 105 dB (tweeter) |
| Suspension compl. (Cms) | 0.24 mm/N |
| Moving mass (Mms) | 32 g |
| Mech. Q factor (Qms) | 3.24 |
| Electr. Q factor (Qes) | 0.36 |
| Total Q factor (Qts) | 0.32 |
| Equivalent volume (Vas) | 41 l |
| DC resistance (Re) | 5.6 Ω |
| Force factor (BxL) | 13.30 Tm |
| Voice coil induct. (Le) | 0.65 mH |
| Voice coil diameter | Ø 64 mm (bass) / Ø 44 mm (tweeter) |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 346 cm2 |
| Magnet weight | 1.6 kg |

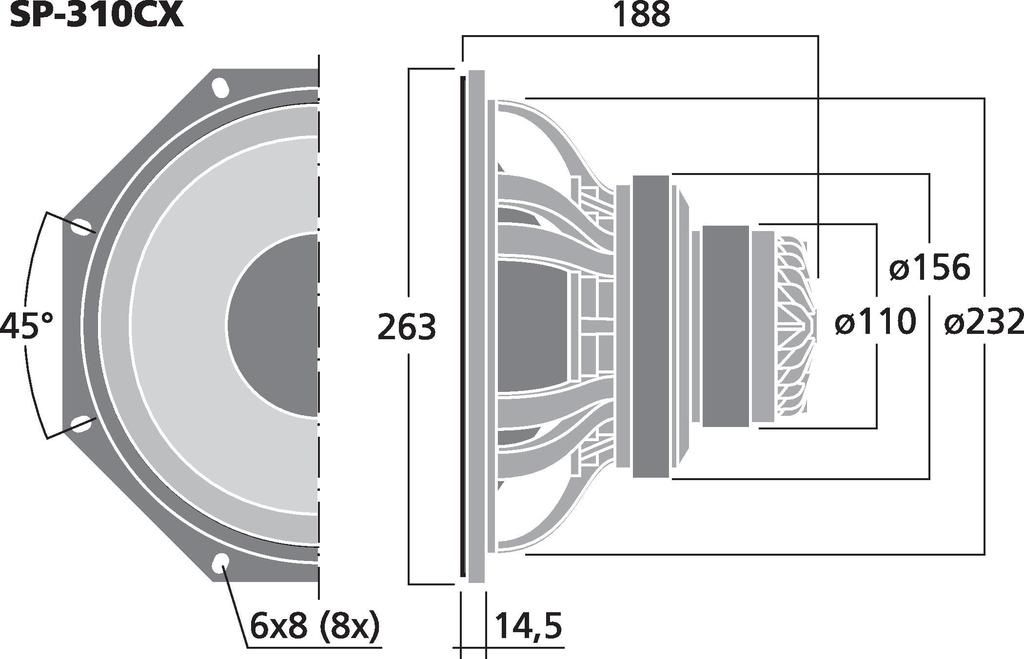

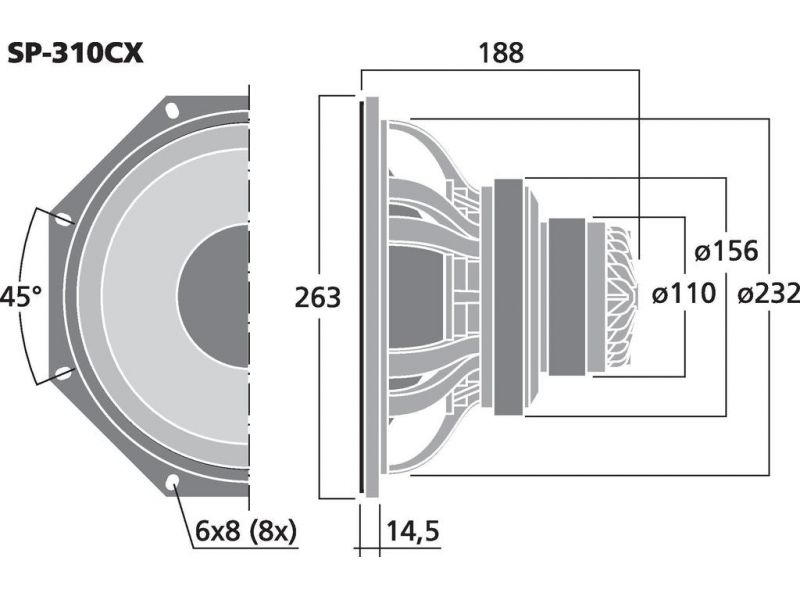

| Magnet diameter | Ø 156 mm/Ø 110 mm |
| Mounting cutout | Ø 232 mm |
| Mounting depth | 173.5 mm |
| Dimensions | 263 x 263 x 188 mm |
| Width | 263 mm |
| Height | 263 mm |
| Depth | 188 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 6.24 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.34 x 0.25 x 0.35 m |
| Gross weight | 7.15 kg |
| Net weight | 6.24 kg |
