SPH-165

Cod EAN: 4007754025354

Hi-fi bass-midrange speaker, 50 W, 8 Ω Extra strong drive and high power capability For general hi-fi applications of high requirements Very well-suited for bass-reflex and band-pass cabinets up to horn speaker designs Manufacturer information:...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-165

Hi-fi bass-midrange speaker, 50 W, 8 Ω
  • Extra strong drive and high power capability
  • For general hi-fi applications of high requirements
  • Very well-suited for bass-reflex and band-pass cabinets up to horn speaker designs
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-5,000 Hz
Resonant frequency (fs) 33 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 89 dB/W/m
Suspension compl. (Cms) 1.22 mm/N
Moving mass (Mms) 16 g
Mech. Q factor (Qms) 2.02
Electr. Q factor (Qes) 0.23
Total Q factor (Qts) 0.21
Equivalent volume (Vas) 36 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 9.70 Tm
Voice coil induct. (Le) 1.1 mH
Voice coil diameter Ø 35.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3.5 mm
Eff. cone area (Sd) 137 cm2
Magnet weight 640 g
Magnet diameter Ø 120 mm

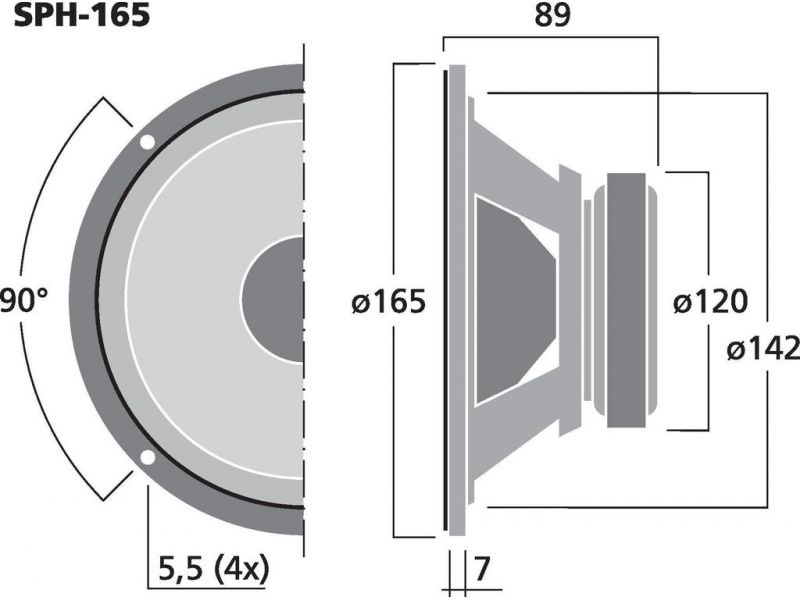

Mounting cutout Ø 142 mm
Mounting depth 82 mm
Dimensions Ø 165 x 89 mm
Outside diameter Ø 165 mm
Width Ø 165 mm
Height Ø 165 mm
Depth 89 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.235 kg
Packing unit 1
Type of speaker 6.5"
Packaging dimensions (W x H x L) 0.175 x 0.11 x 0.175 m
Gross weight 2.415 kg
Net weight 2.235 kg
