SPH-175HQ
Cod EAN: 4007754228021
High-quality hi-fi bass-midrange speaker, 70 W, 8 Ω 175 mm (6 3/4") bass-midrange speaker Further development of the classic speaker SPH-176 Diecast basket Rear-ventilated centering spider for minimum mechanical loss Scooped, air-dried, low-resonance...
SPH-175HQ

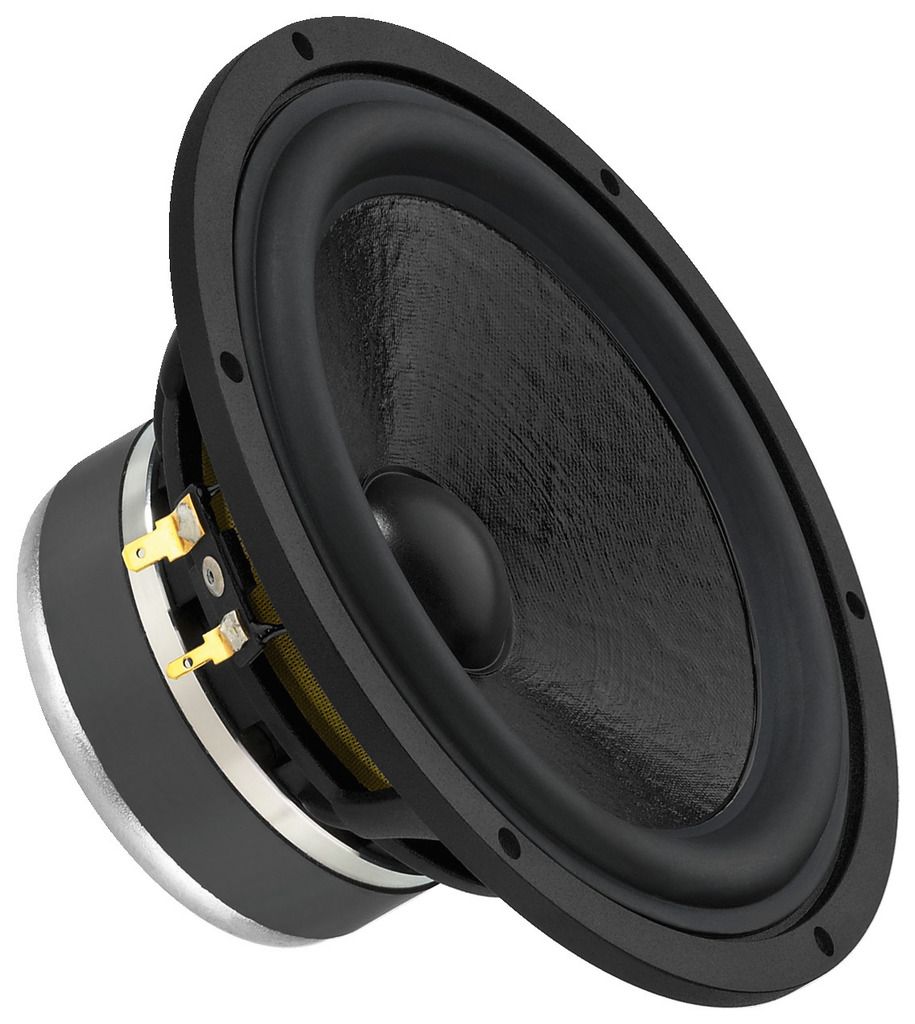

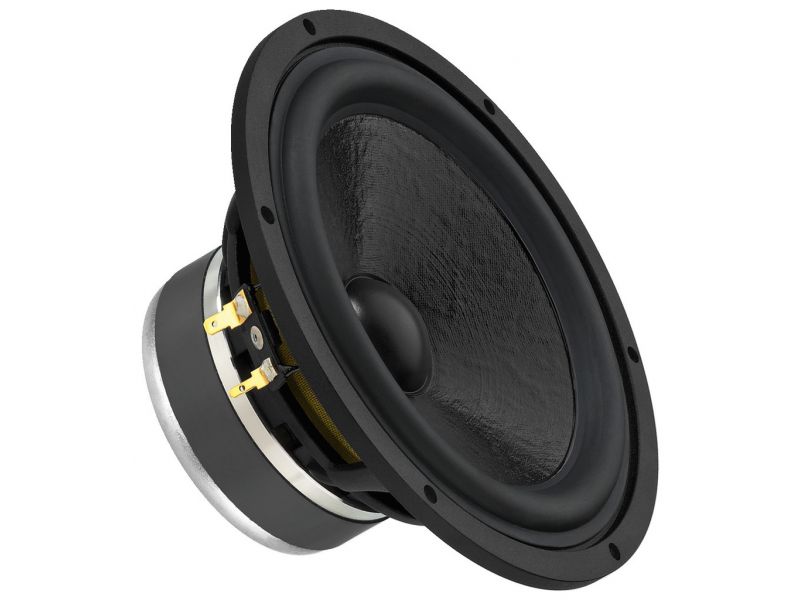

High-quality hi-fi bass-midrange speaker, 70 W, 8 Ω
- 175 mm (6 3/4") bass-midrange speaker
- Further development of the classic speaker SPH-176

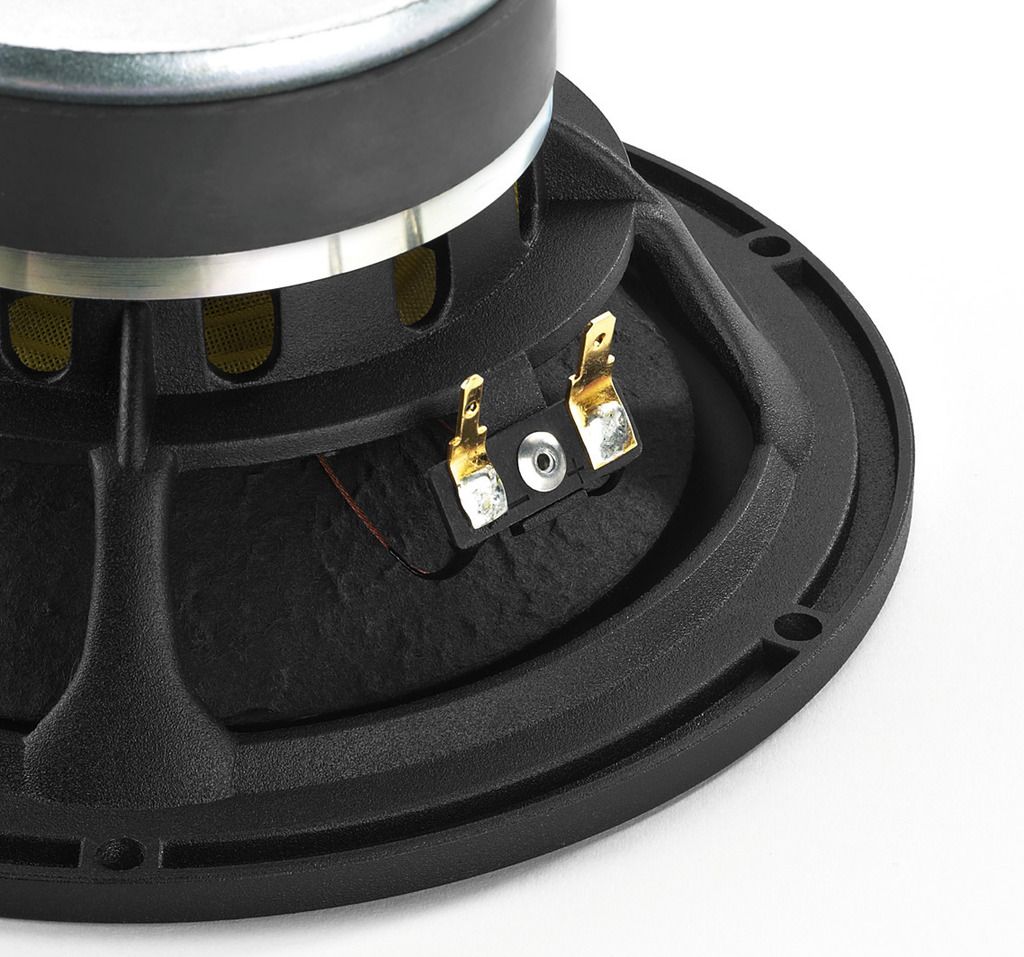

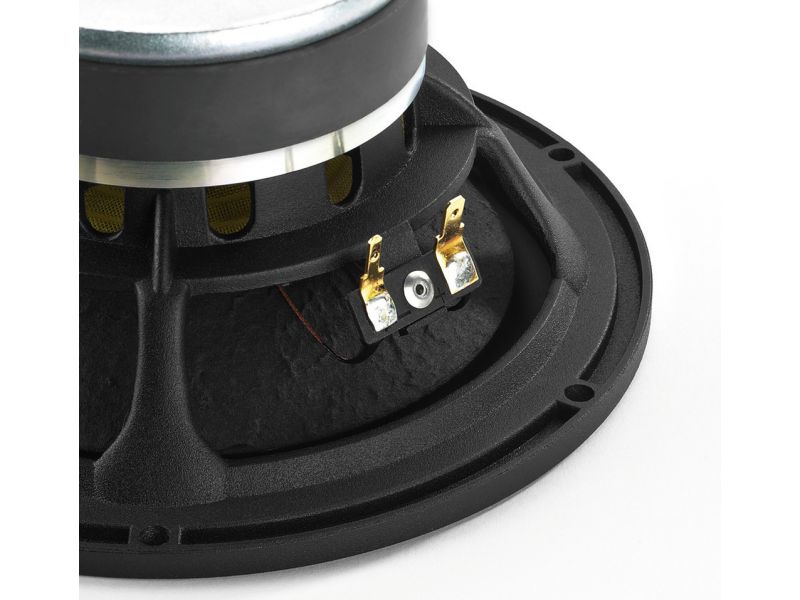

- Diecast basket
- Rear-ventilated centering spider for minimum mechanical loss
- Scooped, air-dried, low-resonance paper cone
- Low-loss rubber surround
- Wide and linear radiation range
- Ideal parameters for bass-reflex systems
Klang+Ton 06/2014
“Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials.”
HOBBY HiFi 03/2014
“An exceptionally high-quality radiation without any cone resonance.”
Parametrii
| Impedance (Z) | 8 Ω |

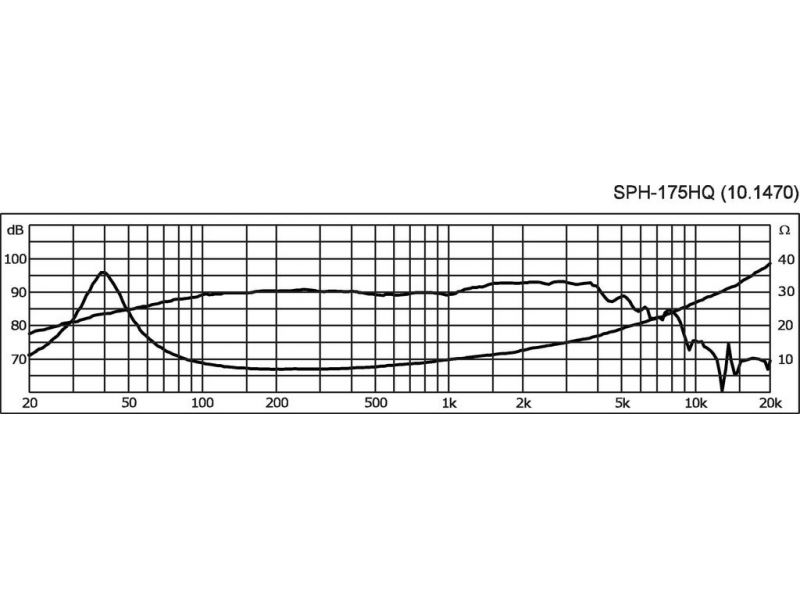

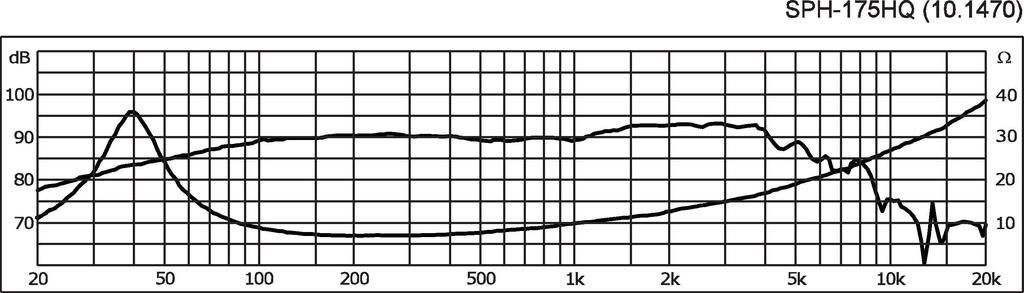

| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 39 Hz |
| Power rating (RMS) | 70 W |
| Peak music power output (MAX) | 120 W |
| SPL | 89 dB/W/m |
| Suspension compl. (Cms) | 1.2 mm/N |
| Moving mass (Mms) | 13.9 g |
| Mech. Q factor (Qms) | 2.57 |
| Electr. Q factor (Qes) | 0.5 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 33.0 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 6.40 Tm |
| Voice coil induct. (Le) | 0.71 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 5.5 mm |
| Eff. cone area (Sd) | 140 cm2 |
| Magnet weight | 450 g |
| Magnet diameter | Ø 90 mm |

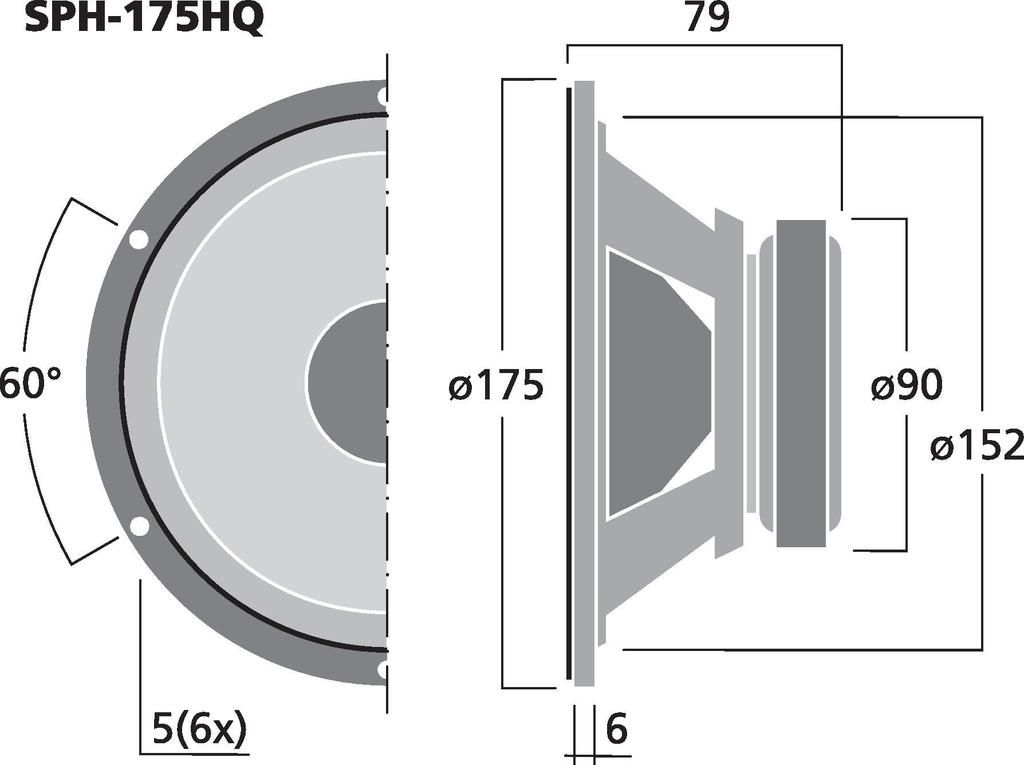

| Mounting cutout | Ø 152 mm |
| Mounting depth | 73 mm |
| Mounting hole diameter | Ø 165 mm |
| Dimensions | Ø 175 mm x 79 mm |
| Outside diameter | Ø 175 mm |
| Width | Ø 175 mm |
| Depth | 79 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.31 kg |
| Packing unit | 1 |
| Type of speaker | 6.75" |
| Packing dimensions (W x H x L) | 0.2 x 0.15 x 0.2 m |
| Gross weight | 1.57 kg |
| Net weight | 1.31 kg |
