SPH-60X

Cod EAN: 4007754025477

Full range speaker, 30 W, 8 Ω Drilled pole core Very good frequency response linearity also in the high frequency range For general applications Speaker from the successful building concepts CT193 and CT194 of the magazine Klang+Ton Klang+Ton 02/...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-60X

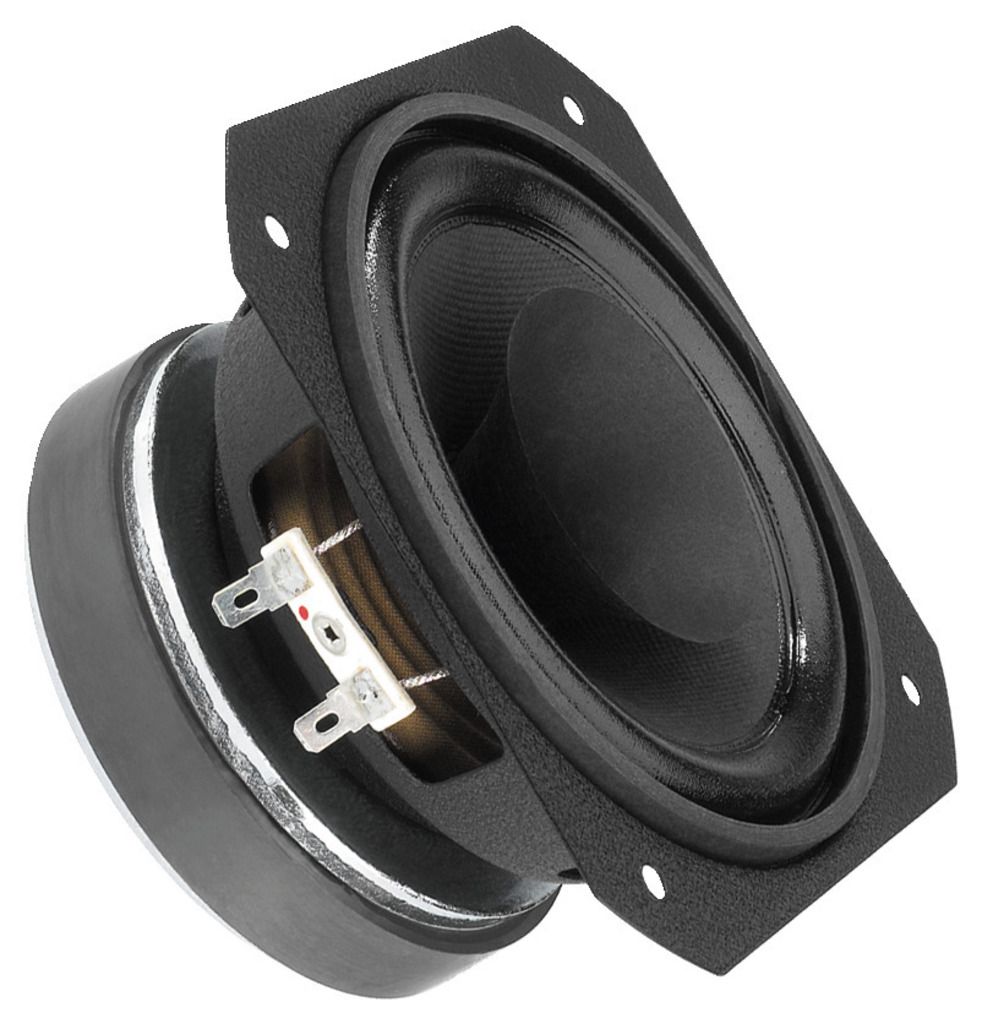

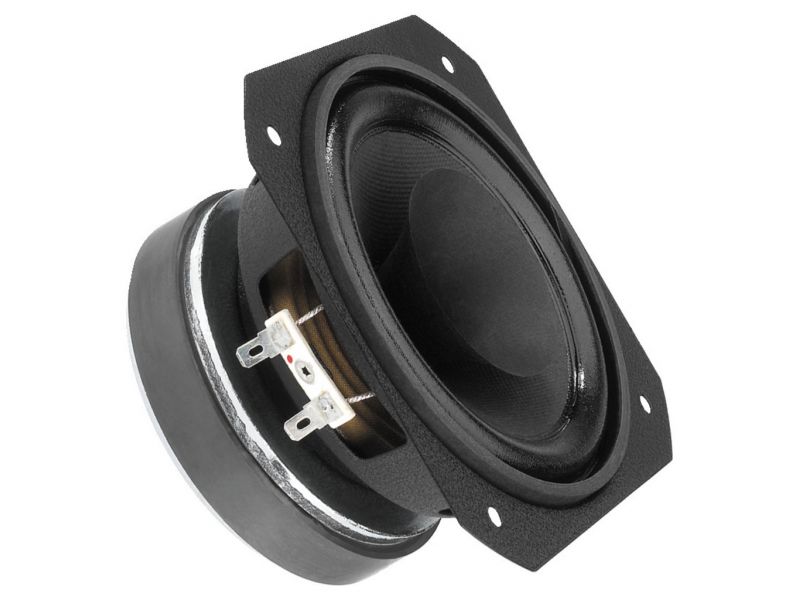

Full range speaker, 30 W, 8 Ω
  • Drilled pole core
  • Very good frequency response linearity also in the high frequency range
  • For general applications
  • Speaker from the successful building concepts CT193 and CT194 of the magazine Klang+Ton
Klang+Ton 02/2019
“We highly recommend this excellent standard full range speaker with a set of parameters very well suited for practical applications.”
(Speaker building concept Cheap Trick 302)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-20,000 Hz
Resonant frequency (fs) 60 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 89 dB/W/m
Suspension compl. (Cms) 1.19 mm/N
Moving mass (Mms) 5.9 g
Mech. Q factor (Qms) 2.17
Electr. Q factor (Qes) 0.53
Total Q factor (Qts) 0.42
Equivalent volume (Vas) 9 l
DC resistance (Re) 6.2 Ω
Force factor (BxL) 5.10 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1.3 mm
Eff. cone area (Sd) 80 cm2
Magnet weight 370 g
Magnet diameter Ø 100 mm

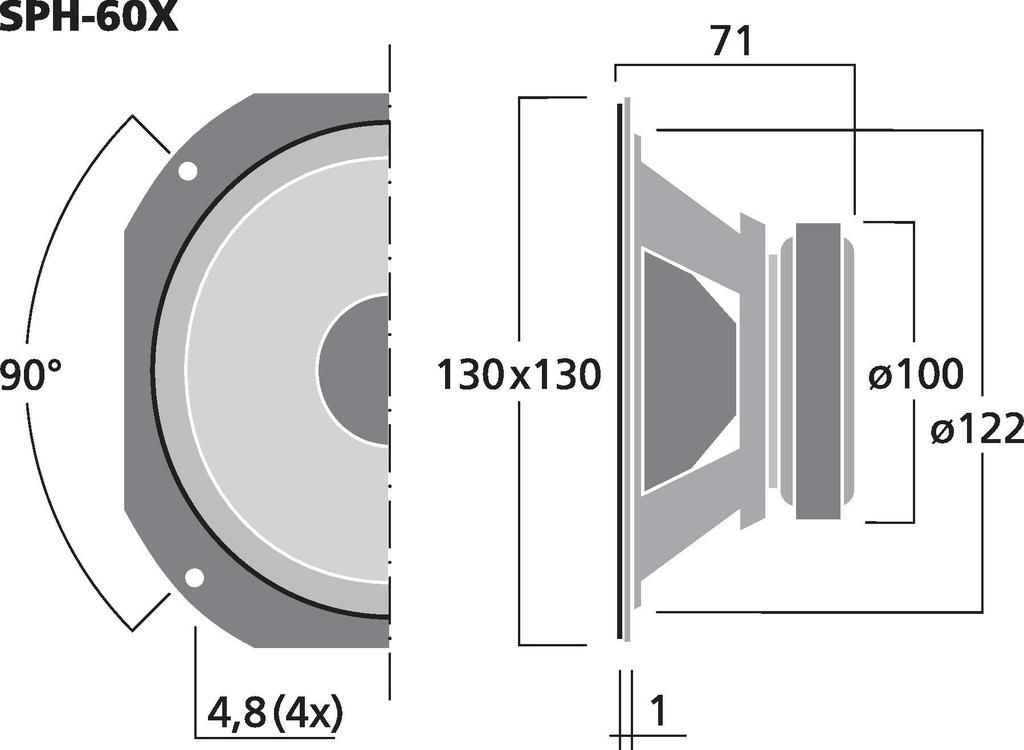

Mounting cutout Ø 122 mm
Mounting depth 70 mm
Dimensions 130 x 130 x 71 mm
Width 130 mm
Height 130 mm
Depth 71 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.07 kg
Packing unit 1
Type of speaker 5"
Packaging dimensions (W x H x L) 0.135 x 0.085 x 0.135 m
Gross weight 1.135 kg
Net weight 1.07 kg

Fisiere de descarcat

Fisa produsului SPH-60X konformitaetserklaerung-ce konformitaetserklaerung-ukca
