LSR-56/10
Cod EAN 4007754057560
High-power cement resistor, 5.6 Ω, 10 W

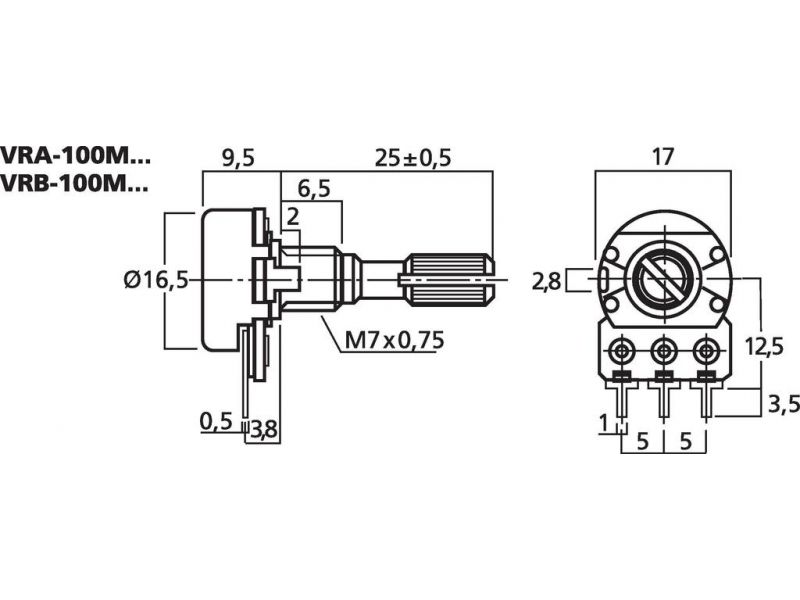

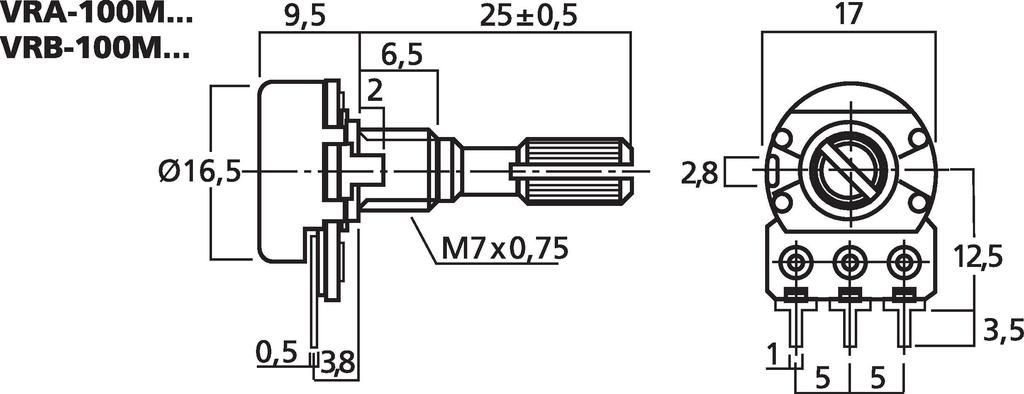

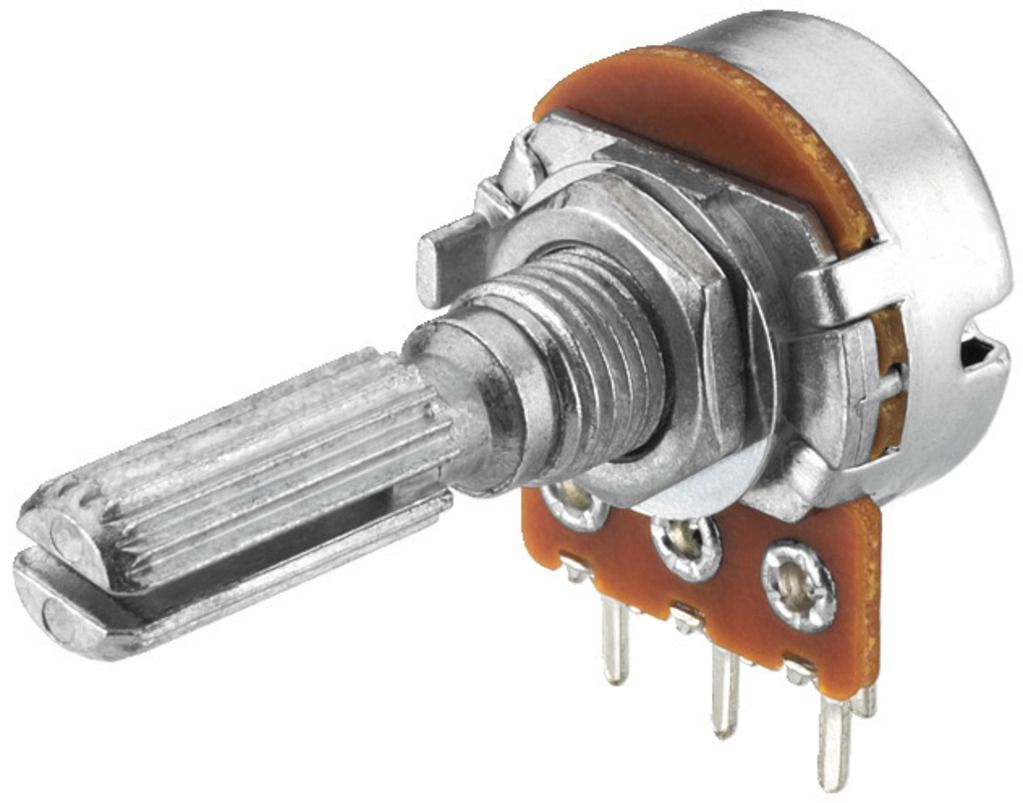

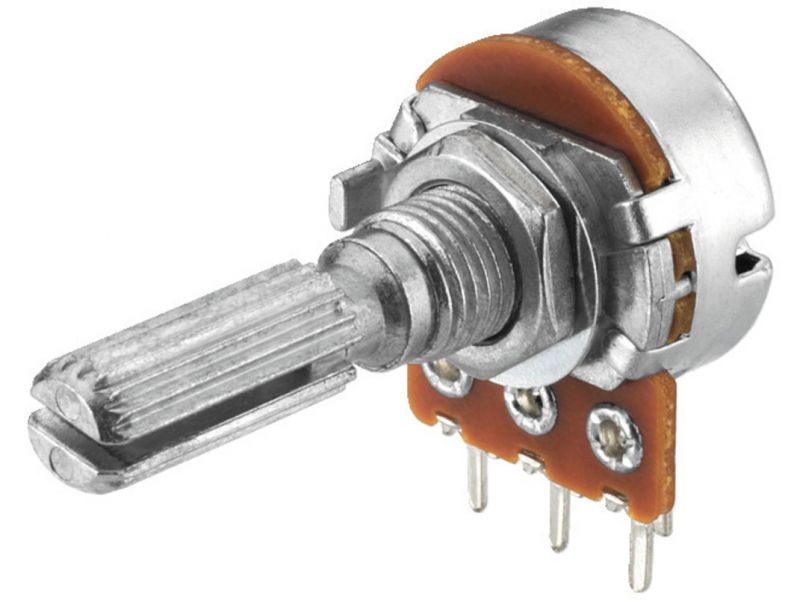

Potentiometer, mono, 10 kΩ Linear Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com
Resistance | 10 kΩ |
Characteristic | linear |
Power rating | 0.2 W |
Test voltage | ˜ 500 V/1 min. |
Tracking error | ±3 dB, 0/-40 dB |
Rotation angle | 300° ±5° |
