SPM-116/8

Cod EAN: 4007754220988

Hi-fi bass-midrange speaker, 40 W, 8 Ω Excellent replacement speaker of the same quality as from the original equipment manufacturer Low-resonance paper cone Long-term stable rubber surround Also very well-suited for use as a full range speaker H...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPM-116/8

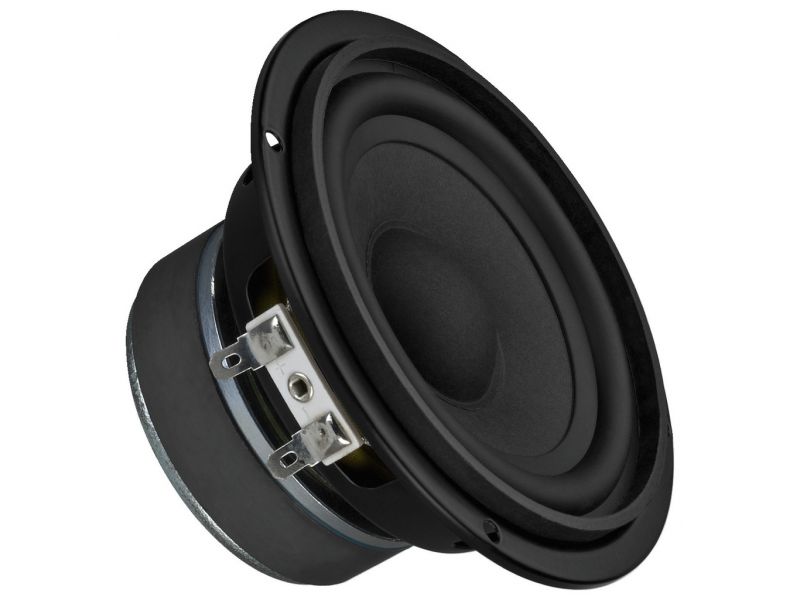

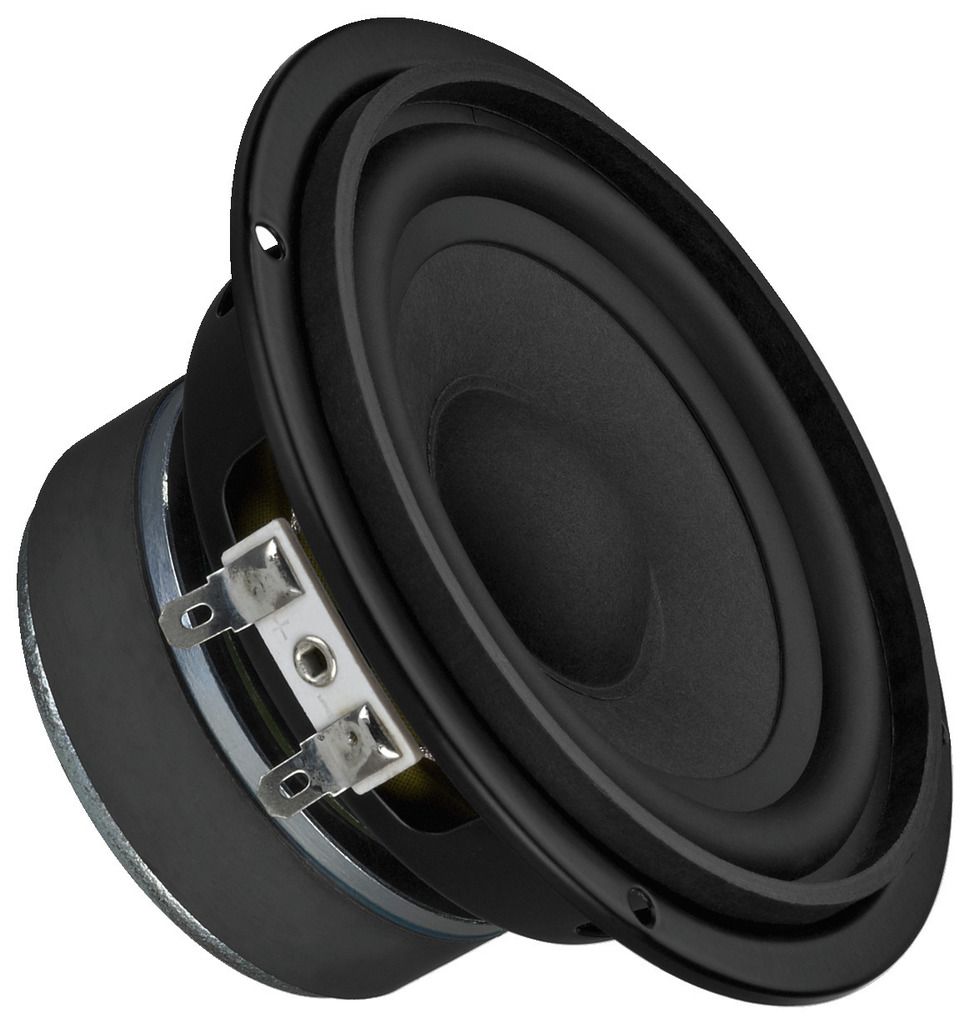

Hi-fi bass-midrange speaker, 40 W, 8 Ω
  • Excellent replacement speaker of the same quality as from the original equipment manufacturer
  • Low-resonance paper cone
  • Long-term stable rubber surround
  • Also very well-suited for use as a full range speaker
HOBBY HiFi 06/2019
“A bass-midrange speaker of an appealing design which can even be used as a full range speaker when applying careful frequency-response correction.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

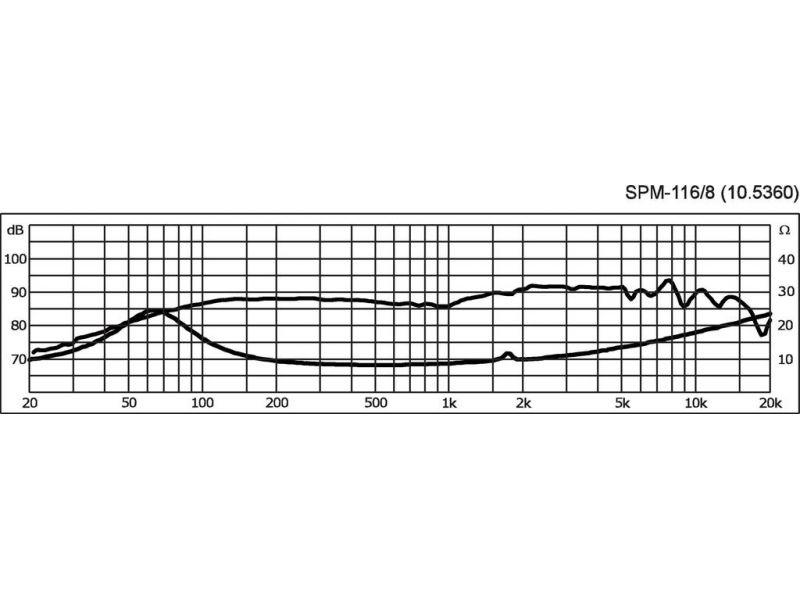

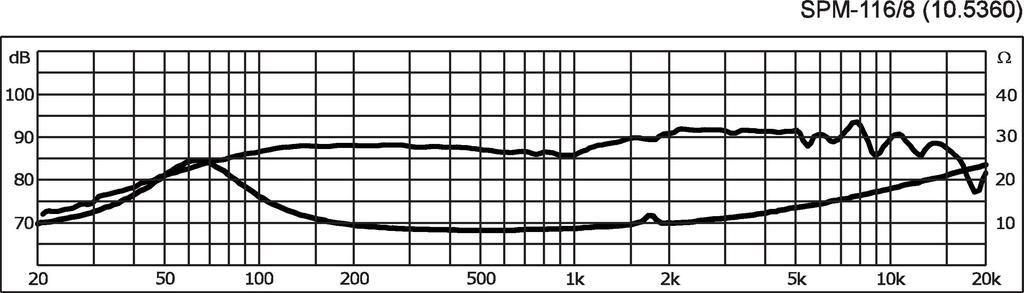

Frequency range f3-18,000 Hz
Resonant frequency (fs) 75 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 87 dB/W/m
Suspension compl. (Cms) 0.98 mm/N
Moving mass (Mms) 3.8 g
Mech. Q factor (Qms) 1.9
Electr. Q factor (Qes) 0.81
Total Q factor (Qts) 0.57
Equivalent volume (Vas) 4.5 l
DC resistance (Re) 7.2 Ω
Force factor (BxL) 4.20 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 20.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1.5 mm

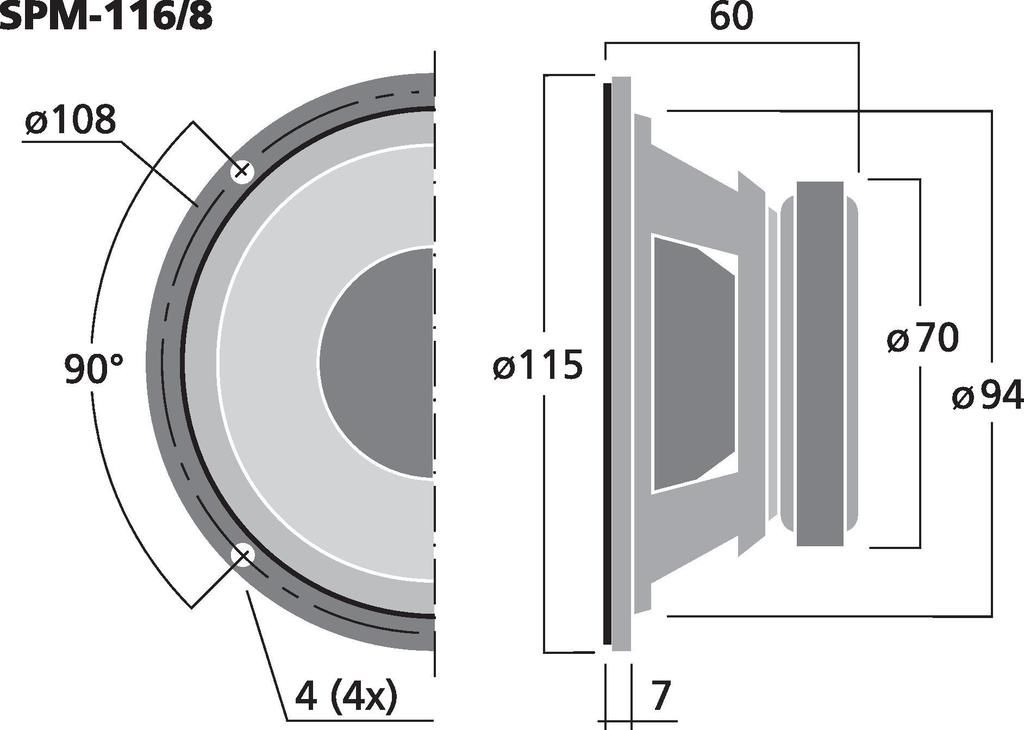

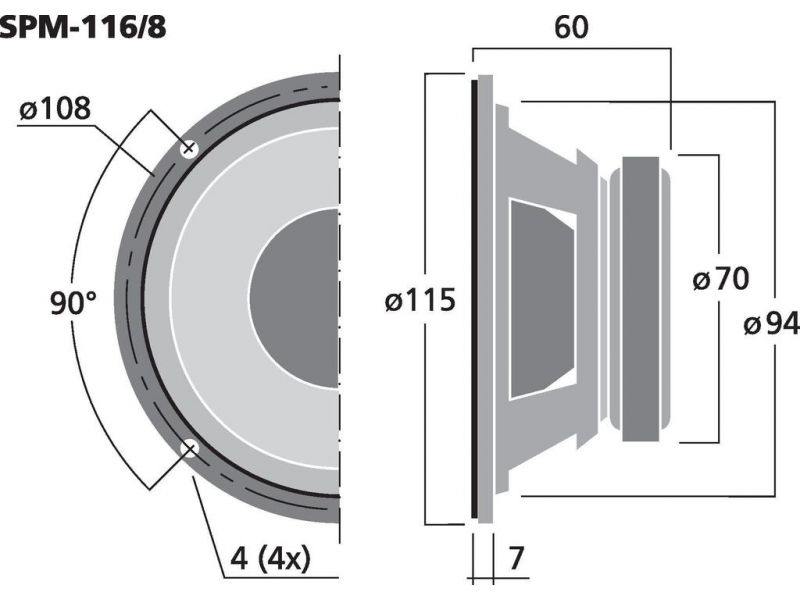

Eff. cone area (Sd) 57 cm2
Magnet weight 230 g
Magnet diameter Ø 70 mm
Mounting cutout Ø 94 mm
Mounting depth 53 mm
Mounting hole diameter Ø 108 mm
Dimensions Ø 115 mm x 60 mm
Outside diameter Ø 115 mm
Width Ø 115 mm
Height Ø 115 mm
Depth 60 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.557 kg
Packing unit 1
Type of speaker 4"
Packaging dimensions (W x H x L) 0.12 x 0.07 x 0.12 m
Gross weight 0.59 kg
Net weight 0.557 kg

Fisiere de descarcat

Fisa produsului SPM-116/8 konformitaetserklaerung-ce konformitaetserklaerung-ukca
