STA-850D

Cod EAN: 4007754212808

8-channel class D amplifier Silent operation due to fanless cooling concept 8 Ω bridged operation possible Mute function for each channel 8 level controls 1 LED per channel for indicating overload (clip) Protected against short circuit Manufactur...

Citeste mai mult

Intreaba despre produs
Cumpara acum

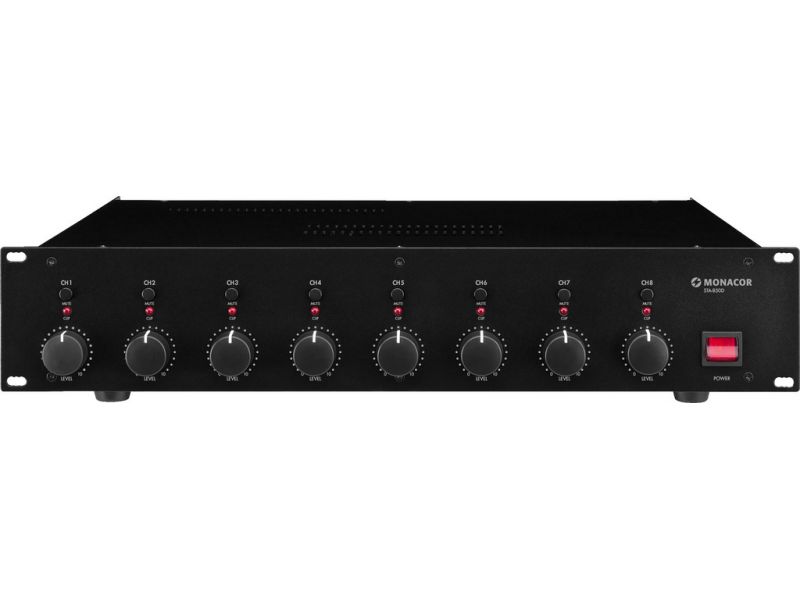

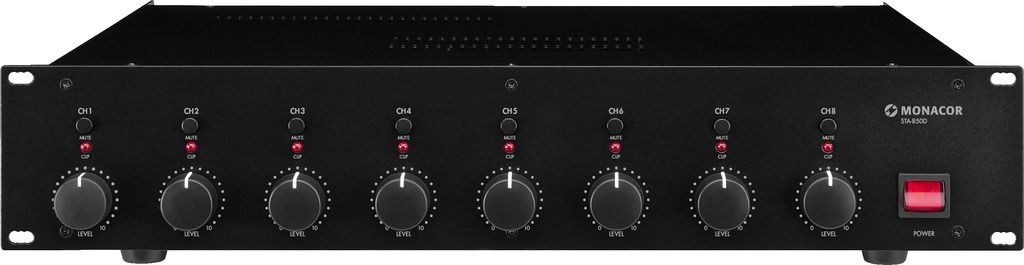

STA-850D

8-channel class D amplifier
  • Silent operation due to fanless cooling concept
  • 8 Ω bridged operation possible
  • Mute function for each channel
  • 8 level controls
  • 1 LED per channel for indicating overload (clip)
  • Protected against short circuit
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

Parametrii

Peak output power 600 W
Power rating 400 W
Power rating at 4 Ω 8 x 50 W
Power rating at 8 Ω 8 x 30 W
Power rating with 8 Ω bridged operation 4 x 100 W
Channels 8
Inputs 1 V/20 kΩ unbal.550 mV/20 kΩ bal.
Frequency range 10-20,000 Hz
Crosstalk attenuation > 45 dB
Power supply ˜ 230 V/50 Hz/600 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 600 VA
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 90 mm
Depth 330 mm
Rack units, RU 2
Weight 10.5 kg

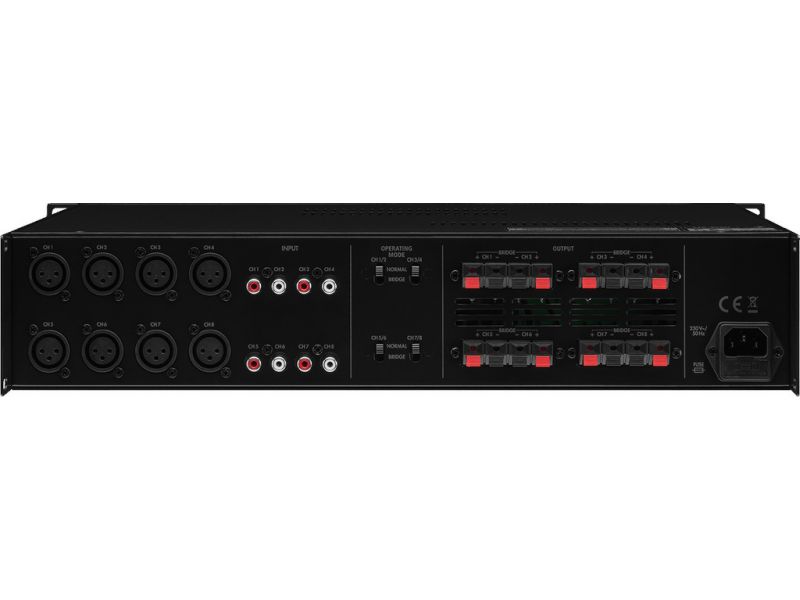

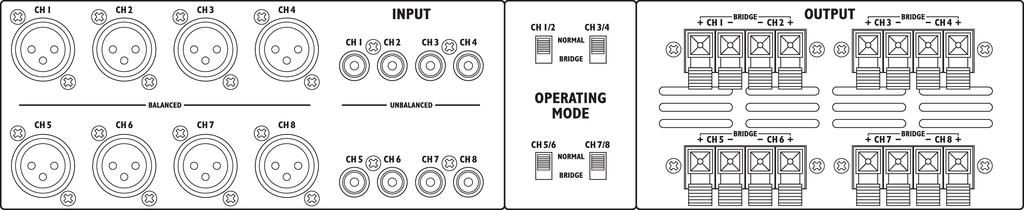

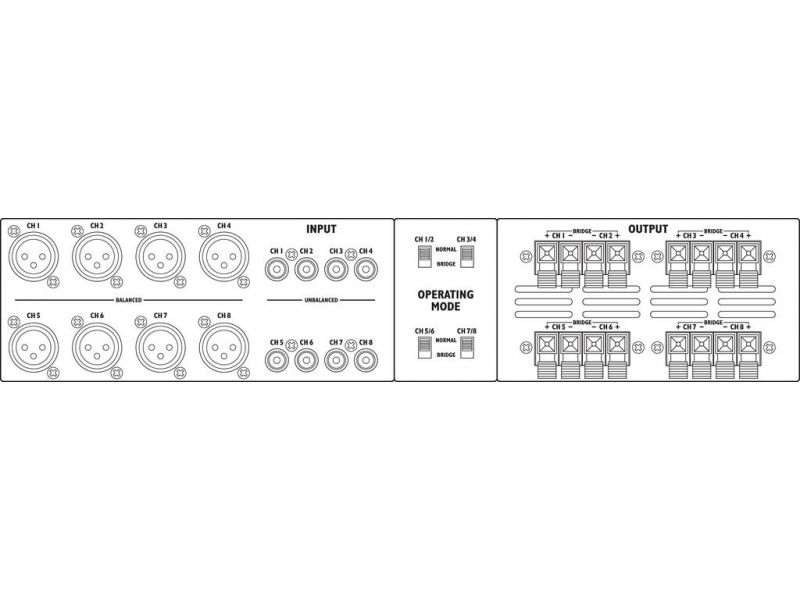

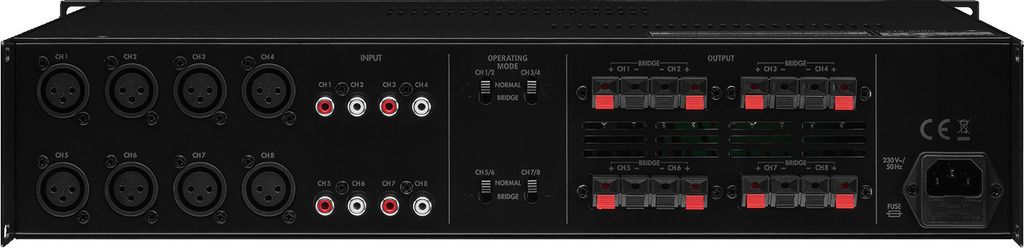

Connections 8 x XLR, bal. 8 x RCA 8 x spring-load. speaker term. L/R
Packaging dimensions (W x H x L) 0.41 x 0.16 x 0.56 m
Gross weight 13.22 kg
Net weight 10.68 kg

Fisiere de descarcat

Fisa produsului STA-850D konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
