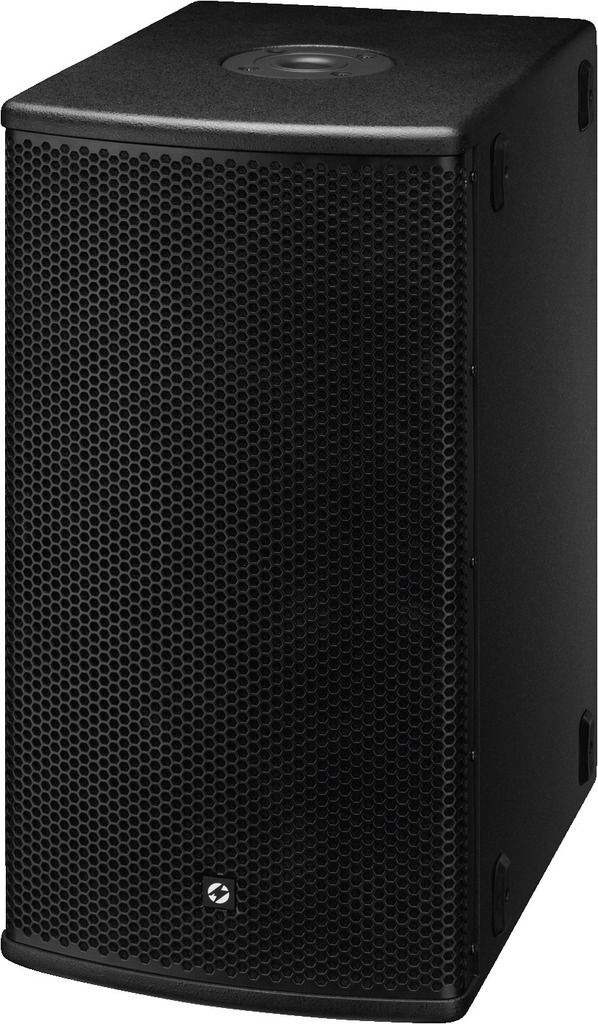

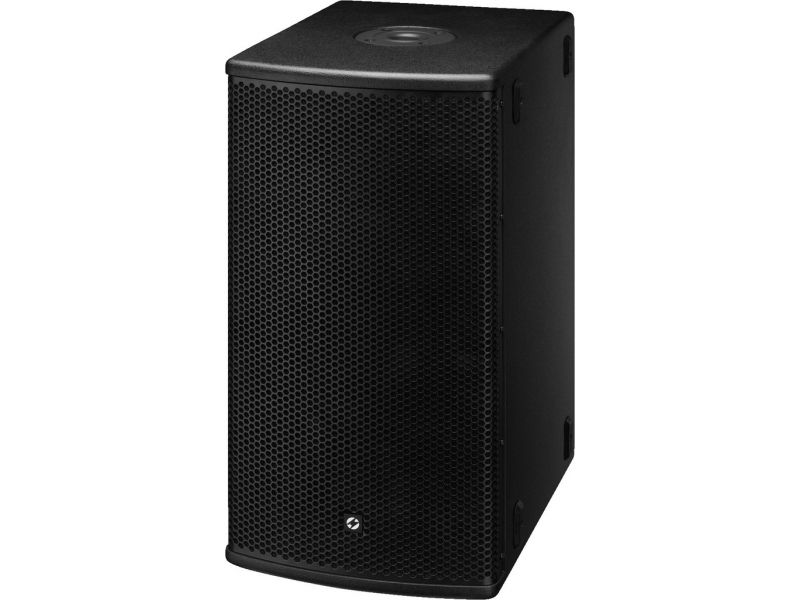

SUB-10

Cod EAN: 4007754272505

This 25 cm (10") passive subwoofer has been developed to deliver a powerful bass reproduction from compact cabinets and features a power rating of 500 W max. The band-pass cabinet with its 10" bass speaker of long excursion generates a dry and deep b...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SUB-10

This 25 cm (10") passive subwoofer
has been developed to deliver a powerful bass reproduction from compact cabinets and features a power rating of 500 W max. The band-pass cabinet with its 10" bass speaker of long excursion generates a dry and deep bass. It can be used as subwoofer support for PA systems in restaurants and bars or shops to ensure a rich and powerful sound. Nevertheless, it can also be used as an additional subwoofer for smaller PA speakers and simply be connected in parallel due to the integrated crossover network (low-pass filter at approx. 200 Hz).
Passive subwoofer, 500 W/8 Ω
  • Band-pass subwoofer with double ventilation
  • 1 x 25 cm (10") top-class woofer
  • Slimline and compact design for upright and horizontal setup
  • High-quality lacquered cabinet made of plywood, front grille with inner lining
  • Integrated crossover network (low-pass) with crossover frequency at 200 Hz
  • 4 x M8 lateral threaded insert as installation aid
  • Speakers connected to the subwoofer in parallel must have a nominal impedance of 8 Ω min.
  • Stand sleeve at the top
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology cable
Total power rating 500 W
Power rating (RMS) 250 W
Impedance 8 Ω
Frequency range 40-200 Hz
System band-pass subwoofer
Bass speaker 1 x 25 cm (10")
Number of speakers 1
Speaker size 25 cm (10")
SPL 92 dB/W/m
Max. rated SPL 116 dB
Radiation angle/beam angle omnidirectional
Housing material multiplex
Colour black
Mounting device threaded inserts
Admiss. ambient temp. 0-40 °C
Dimensions 300 x 610 x 410 mm
Width 300 mm
Height 610 mm
Depth 410 mm
Weight 19.84 kg
Inputs 1 x NEUTRIK SPEAKON, speaker terminals
Packaging dimensions (W x H x L) 0.42 x 0.74 x 0.53 m
Gross weight 23.66 kg
Net weight 19.84 kg

Fisiere de descarcat

Fisa produsului SUB-10 konformitaetserklaerung-ce konformitaetserklaerung-ukca
