TXA-1020MT

Cod EAN: 4007754243659

Mulitfrequency transmitter module, with UHF PLL technology. For retrofitting amplifier systems of the TXA-1020 series or for setting up wireless audio transmission paths. 16 selectable UHF frequencies (863.1-864.9 MHz) Volume control LCD for indica...

Citeste mai mult

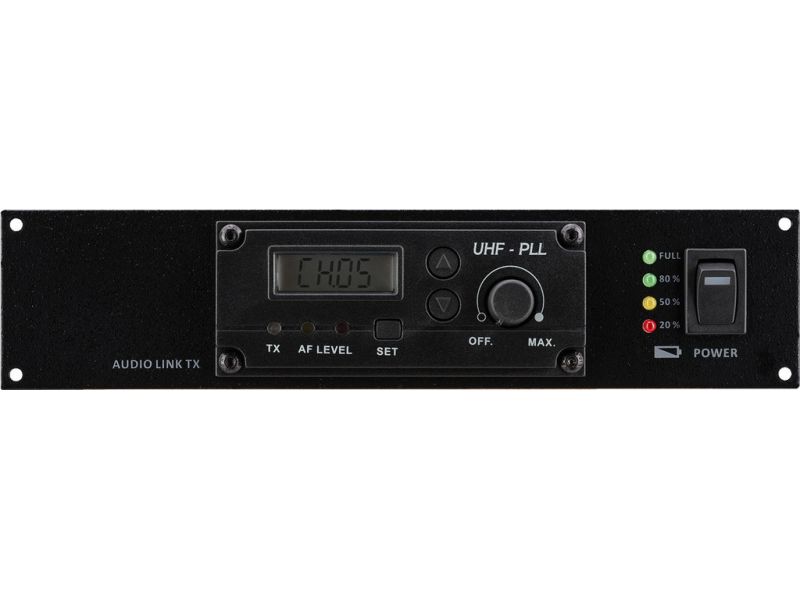

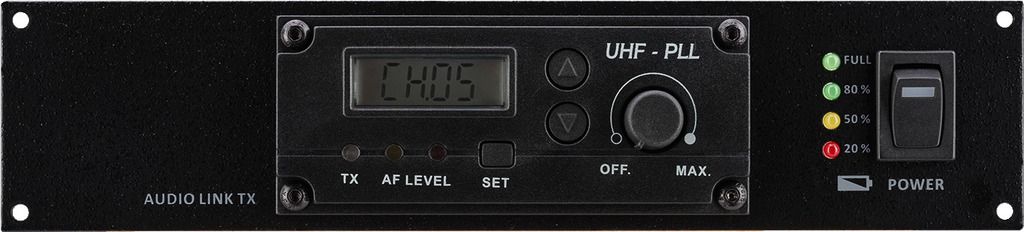

TXA-1020MT

Mulitfrequency transmitter module,
with UHF PLL technology.
For retrofitting amplifier systems of the TXA-1020 series or for setting up wireless audio transmission paths.
  • 16 selectable UHF frequencies (863.1-864.9 MHz)
  • Volume control
  • LCD for indicating selected channel/frequency
  • LEDs for indicating carrier and audio signals

Licence-free in the EU.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description multifrequency transmitter module
Carrier frequency range 863.1-864.9 MHz
Channels 1
Admiss. ambient temp. 0-40 °C
Transmitting power ≤ 10 mW
Operating range approx. 30 m
Power supply transmitter DC 12 V/140 mA
Width transmitter 91 mm
Height transmitter 43 mm
Depth transmitter 103 mm
Weight transmitter 220 g
