TXA-1822MR

Cod EAN: 4007754269598

2-channel multifrequency receiver module, with UHF PLL technology. For retrofitting amplifier systems of the TXA-10xx and TXA-8xx series or for setting up wireless audio transmission paths. 2 x 16 selectable UHF frequencies (863-865 MHz) Volume con...

Citeste mai mult

Intreaba despre produs
Cumpara acum

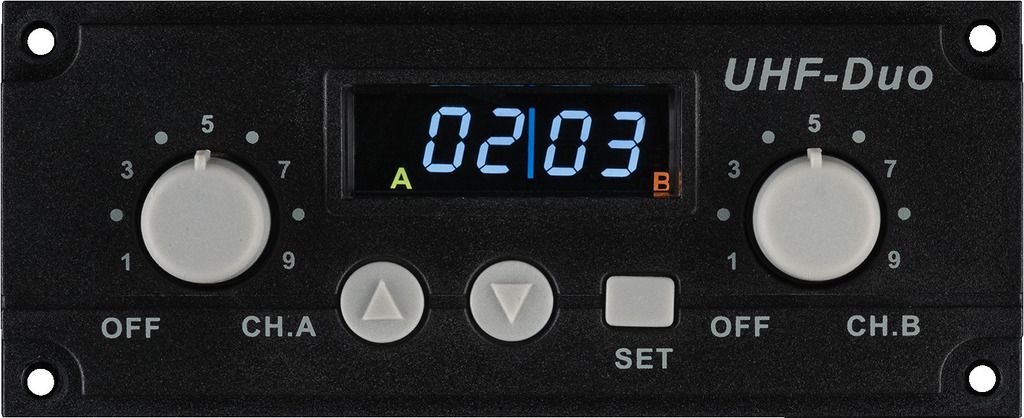

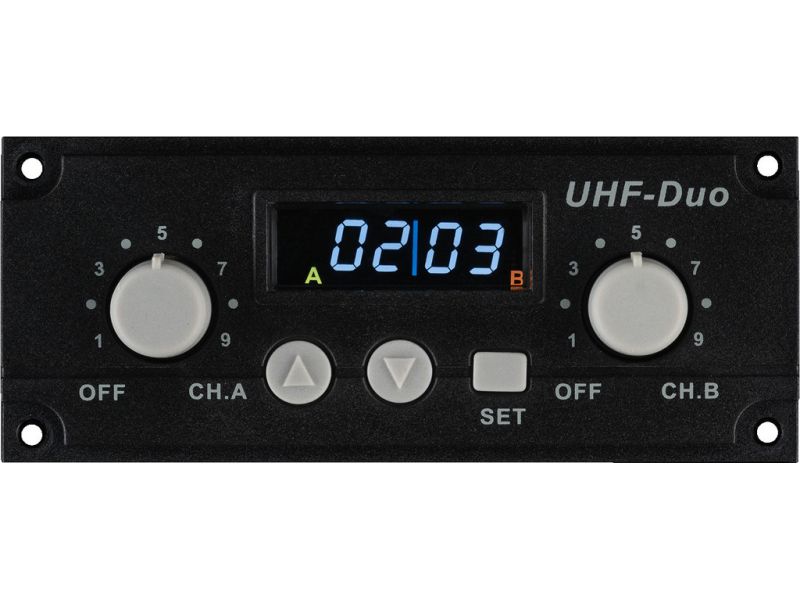

TXA-1822MR

2-channel multifrequency receiver module,
with UHF PLL technology.
For retrofitting amplifier systems of the TXA-10xx and TXA-8xx series or for setting up wireless audio transmission paths.
  • 2 x 16 selectable UHF frequencies (863-865 MHz)
  • Volume control
  • LCD for indicating selected channel and carrier frequency
  • Scan function for free channel
  • Supplied with adapter board for TXA-1020 and TXA-800 series


Licence-free in the EU.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description multifrequency receiver module
Carrier frequency range 863-865 MHz
Channels 2
Admiss. ambient temp. 0-40 °C
Power supply receiver DC 12 V/185 mA
Width receiver 88 mm
Height receiver 37 mm
Depth receiver 103 mm
Weight receiver 92 g

Fisiere de descarcat

Fisa produsului TXA-1822MR konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
