TXA-800HSE

Cod EAN: 4007754199345

Multifrequency pocket transmitter, with UHF PLL technology. Matching portable amplifier systems of the TXA-1000 series, TXA-800 series. 1 headband microphone (omnidir. char.), 1 tie clip microphone (cardioid char.) 16 selectable UHF frequencies (86...

Citeste mai mult

Intreaba despre produs
Cumpara acum

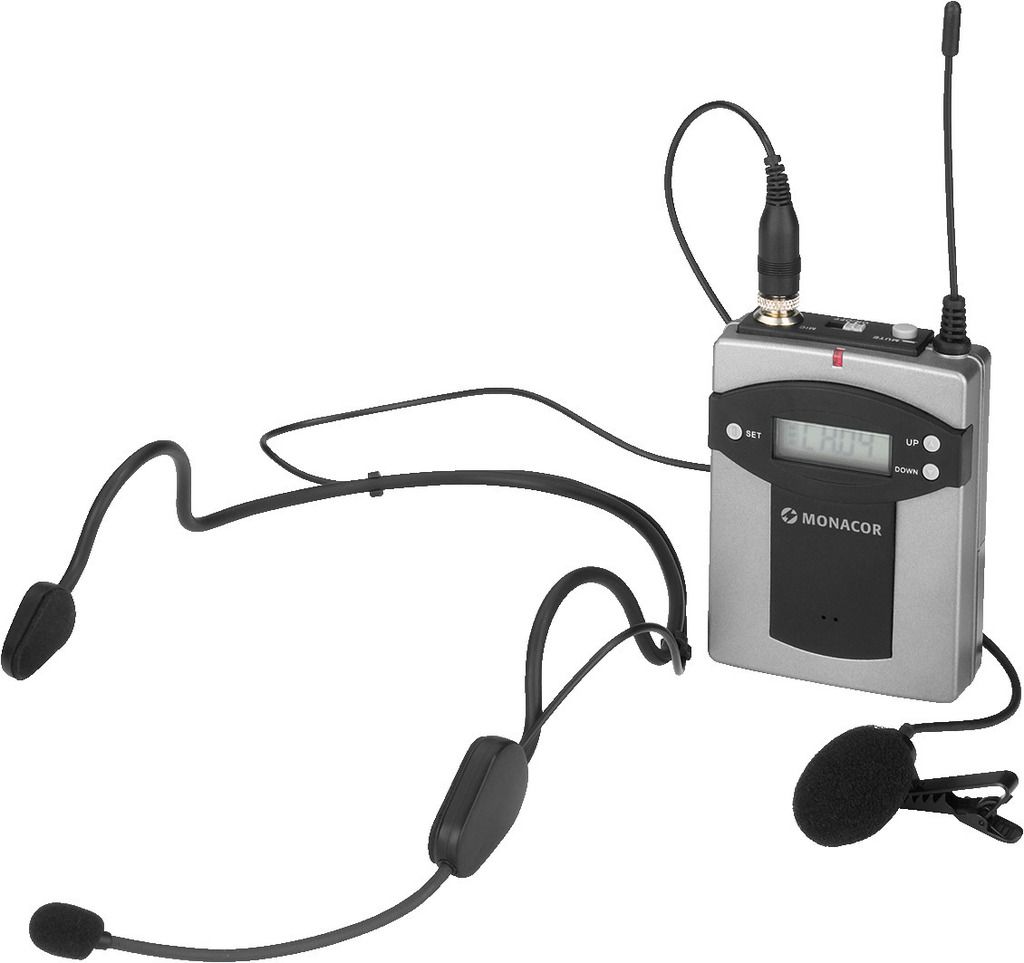

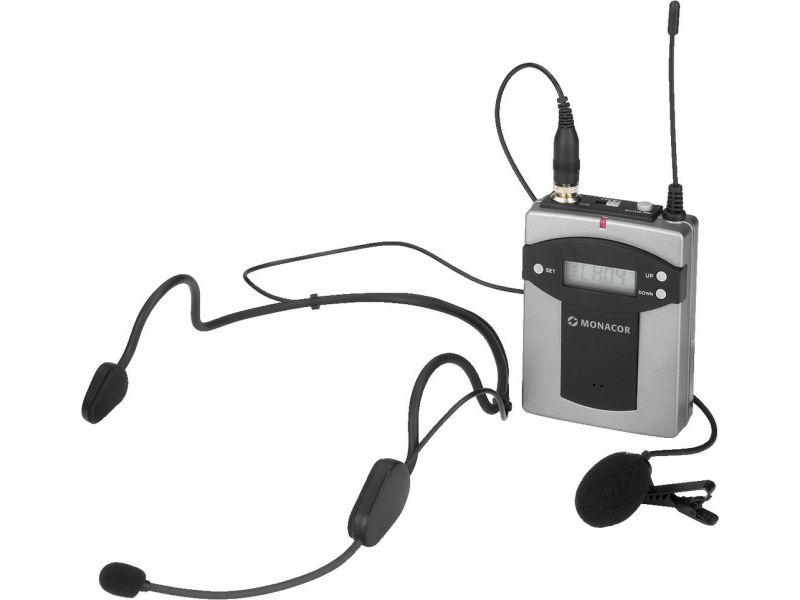

TXA-800HSE

Multifrequency pocket transmitter,
with UHF PLL technology. Matching portable amplifier systems of the TXA-1000 series, TXA-800 series.
  • 1 headband microphone (omnidir. char.), 1 tie clip microphone (cardioid char.)
  • 16 selectable UHF frequencies (863.1-864.9 MHz)
  • Metal housing
  • Microphone connection via 3-pole mini XLR jack
  • Audio line input via 3.5 mm stereo jack
  • Sensitivity to be adjusted in 3 steps
  • Mute function
  • Backlit LCD for indicating channel/frequency and battery status
  • Transmitting power: 10 mW (EIRP)
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Belt clip

Licence-free in the EU.
tastenwelt 02/2008
“The use of the headset is interesting for keyboard players.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Parametrii

Description pocket transmitter
Carrier frequency range 863.1-864.9 MHz
Audio frequency range 70-16,000 Hz
Channels 1
Admiss. ambient temp. 0-40 °C
Transmitting power 10 mW
Operating range 30 m
Power supply transmitter 2 x 1.5 V batt. AA size
Width transmitter 65 mm
Height transmitter 95 mm
Depth transmitter 30 mm
Weight transmitter 110 g
Connections transmitter 1 x 3-pole mini XLR

Fisiere de descarcat

Fisa produsului TXA-800HSE konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
