VRA-100M1000

Cod EAN: 4007754046243

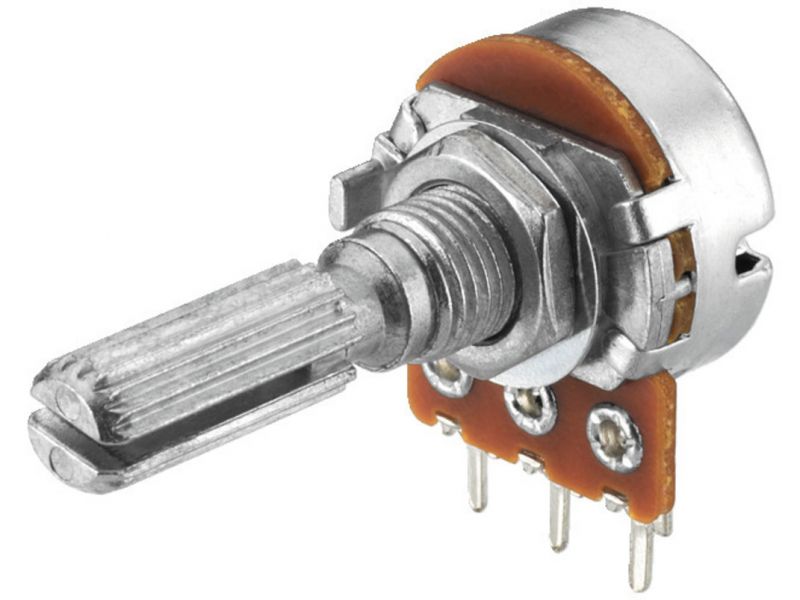

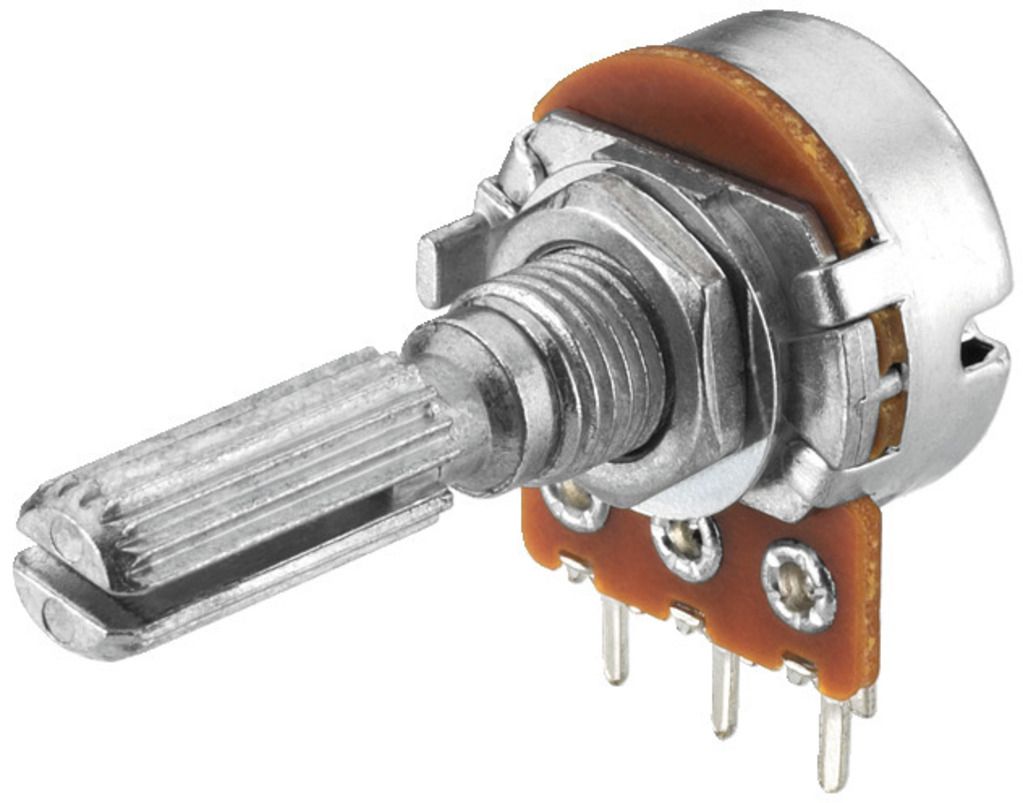

Potentiometer, mono, 1 MΩ Logarithmic Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts

Intreaba despre produs
Cumpara acum


VRA-100M1000

Potentiometer, mono, 1 MΩ
  • Logarithmic
  • Slotted 6 mm shaft
  • For 18-tooth push-on buttons
  • Nut fixing and PCB solder contacts

Parametrii

Resistance 1 MΩ
Characteristic log.
Power rating 0.1 W
Test voltage ˜ 500 V/1 min.
Tracking error ±3 dB, 0/-40 dB
Rotation angle 300° ±5°

Fisiere de descarcat

Fisa produsului VRA-100M1000
