VRB-100M5

Cod EAN: 4007754046083

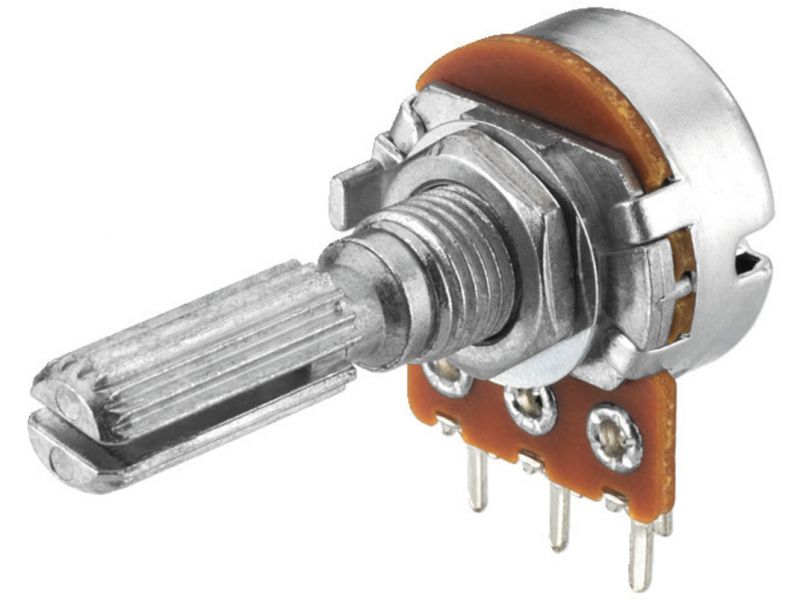

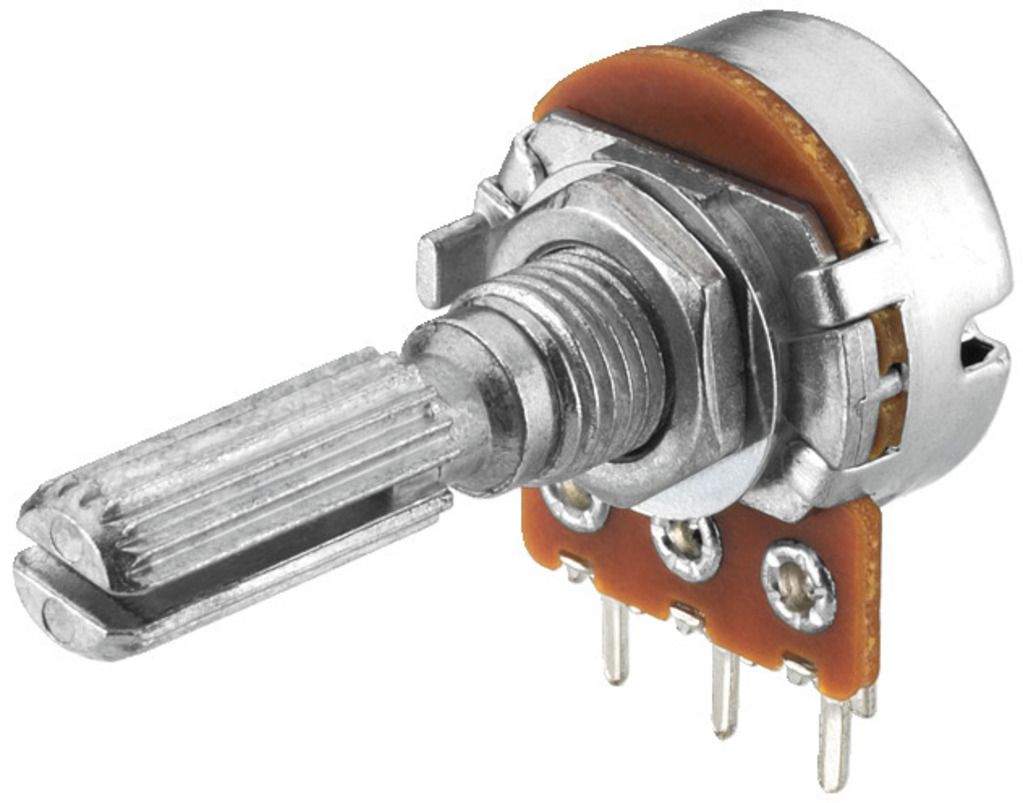

Potentiometer, mono, 5 kΩ Linear Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts



VRB-100M5

Potentiometer, mono, 5 kΩ
  • Linear
  • Slotted 6 mm shaft
  • For 18-tooth push-on buttons
  • Nut fixing and PCB solder contacts

Parametrii

Resistance 5 kΩ
Characteristic linear
Power rating 0.2 W
Test voltage ˜ 500 V/1 min.
Tracking error ±3 dB, 0/-40 dB
Rotation angle 300° ±5°
