WALL-05SET/WS

Cod EAN: 4007754271430

Active 2-way stereo speaker system, 2 x 30 W Set consists of one active and one passive speaker system. Connection of the passive system to the active system via screw terminal strip Active speaker system with integrated 2-channel amplifier Stereo RC...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WALL-05SET/WS

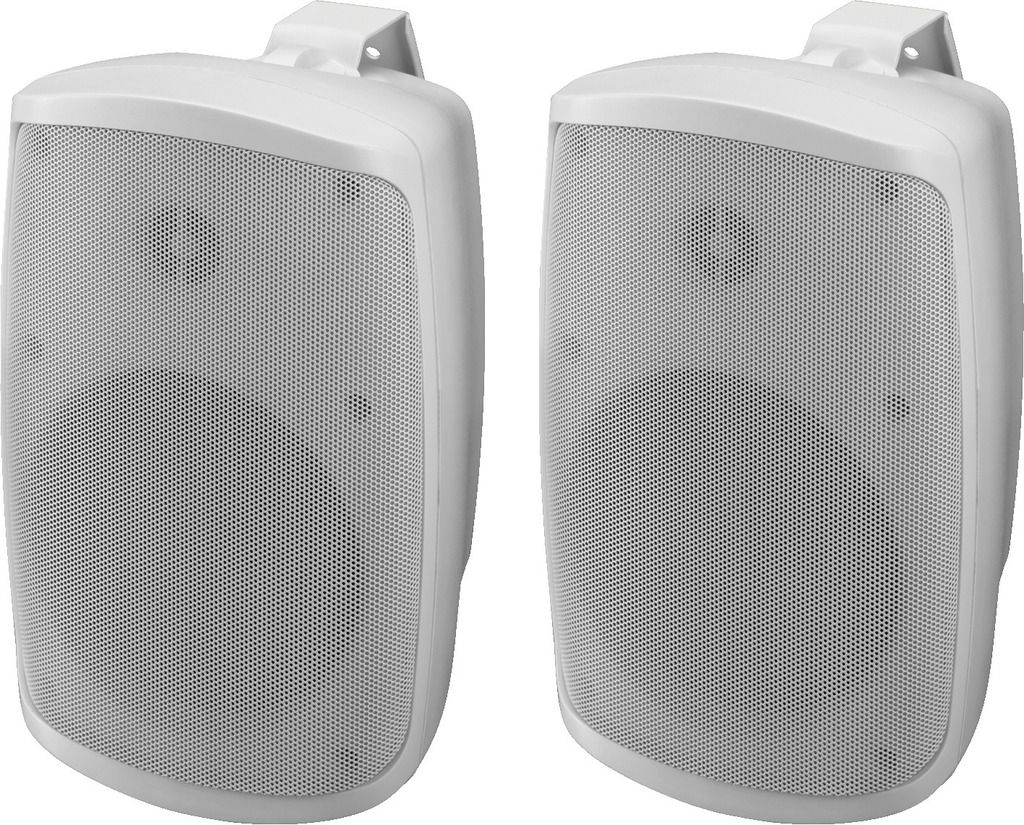

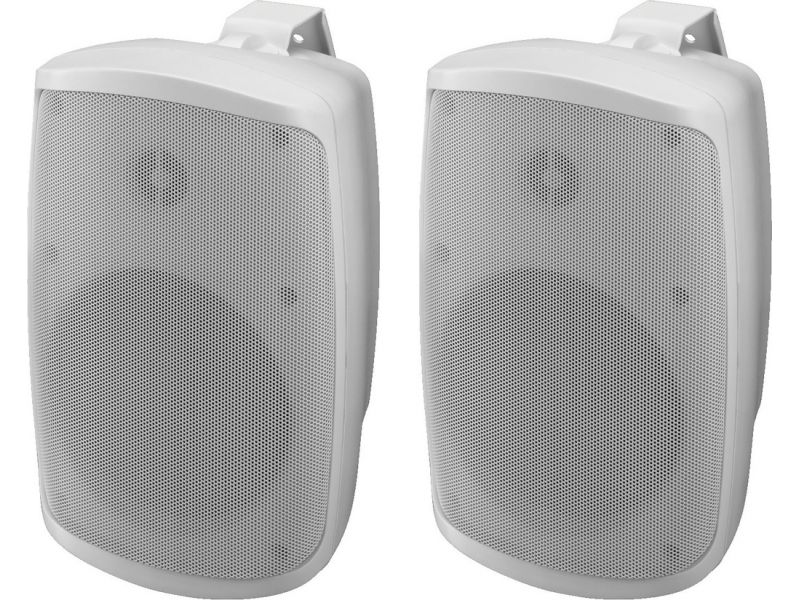

Active 2-way stereo speaker system, 2 x 30 W
  • Set consists of one active and one passive speaker system. Connection of the passive system to the active system via screw terminal strip
  • Active speaker system with integrated 2-channel amplifier

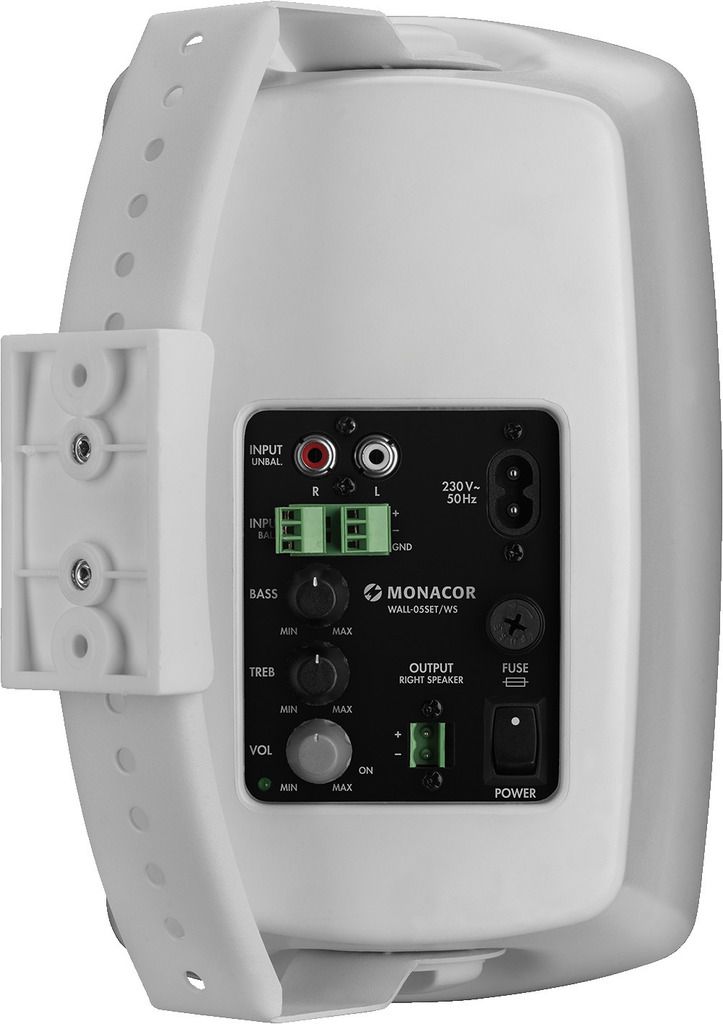

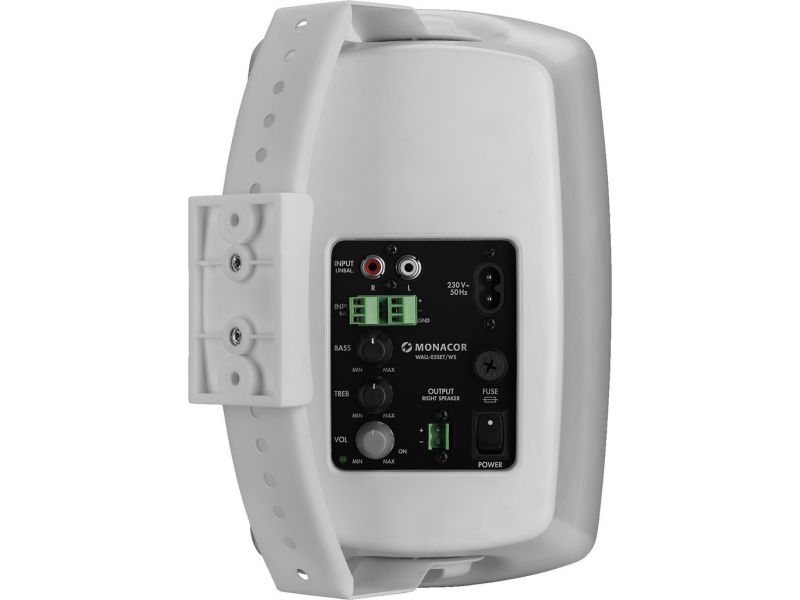

  • Stereo RCA input or balanced input L/R via screw terminal strip
  • Volume control and 2-way tone control
  • Auto standby
  • 13 cm (5") bass speaker system and dome tweeter
  • Stylish white plastic cabinet
  • Mounting bracket for pivoting and tilting
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active/passive
Transmission technology cable
Total output power 2 x 50 W
Power rating (RMS) 2 x 30 W
Frequency range 80-20,000 Hz
Input signal 500 mV/20 kΩ (unbal.) 660 mV/40 kΩ (bal.)
System 2-way
Bass speaker 13 cm (5") bass speaker
Tweeter dome tweeter
Number of speakers 2
Speaker size 13 cm (5")
SPL 89 dB/W/m
Max. rated SPL 104 dB
Radiation angle/beam angle H: 110°/V: 90°
Radiation angle, horizontal 110°
Radiation angle, vertical 90°
Housing material plastic
Colour white
Mounting device mounting bracket
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/100 VA
Dimensions 163 x 252 x 203 mm (with bracket)
Width 163 mm
Height 252 mm
Depth 203 mm
Weight 5.5 kg (pair)
Inputs 1 x RCA L/R (unbal.)1 x terminal L/R (bal.)spring-load. speaker term. (passive speaker system)spring-load. speaker term.
Other features pair
Packaging dimensions (W x H x L) 0.2 x 0.28 x 0.425 m
Gross weight 6.9 kg
Net weight 5.63 kg

Fisiere de descarcat

Fisa produsului WALL-05SET/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
