DMP-102

Cod EAN: 4007754261981

Compact MP3 player insertion module, with USB port and SD/MMC card slot. USB storage media can be connected directly For SD/MMC cards (FAT16/FAT32), not included in the scope of delivery Autostart function Fast forward and reverse Repeat function (...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DMP-102

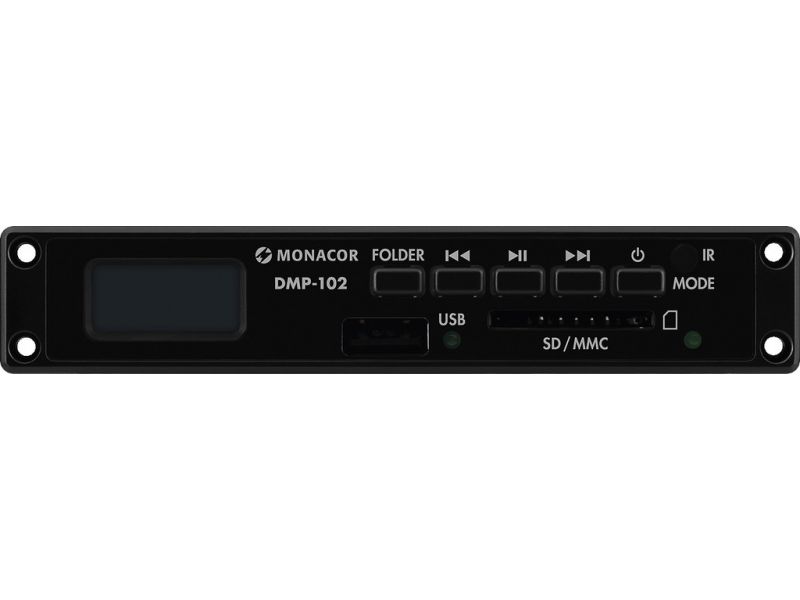

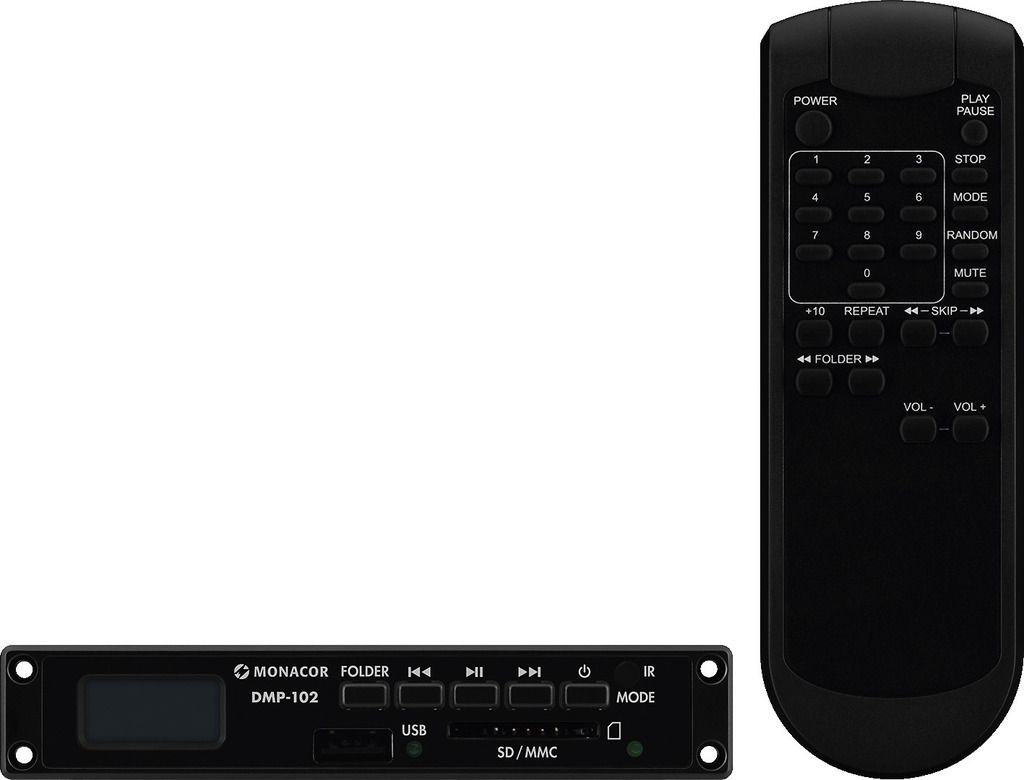

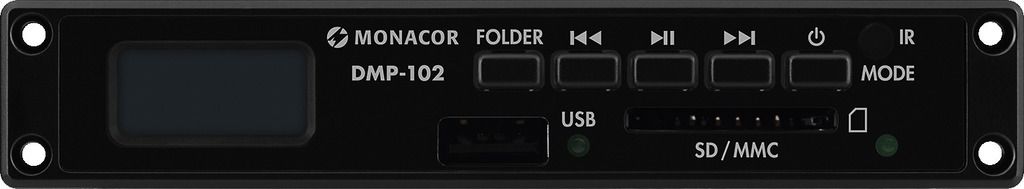

Compact MP3 player insertion module,
with USB port and SD/MMC card slot.
  • USB storage media can be connected directly
  • For SD/MMC cards (FAT16/FAT32), not included in the scope of delivery
  • Autostart function
  • Fast forward and reverse
  • Repeat function (repeat 1, repeat all)
  • Green backlit LCD

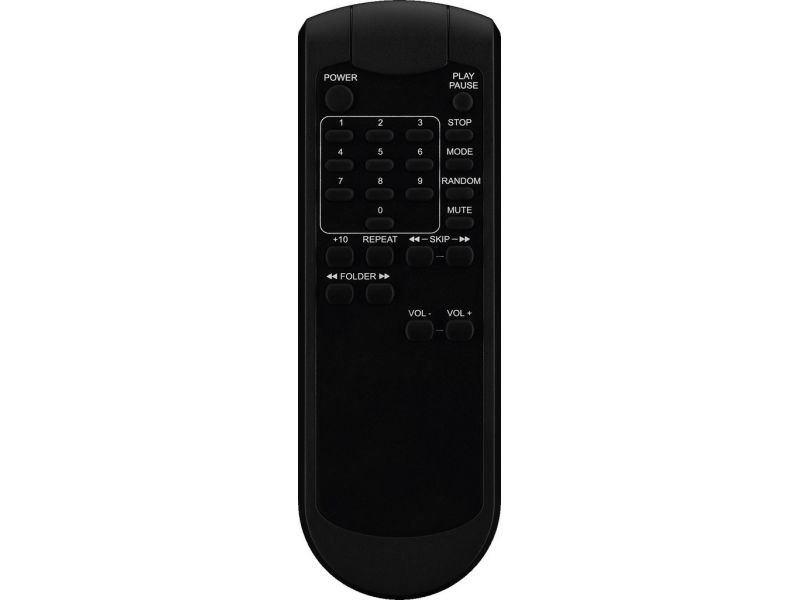

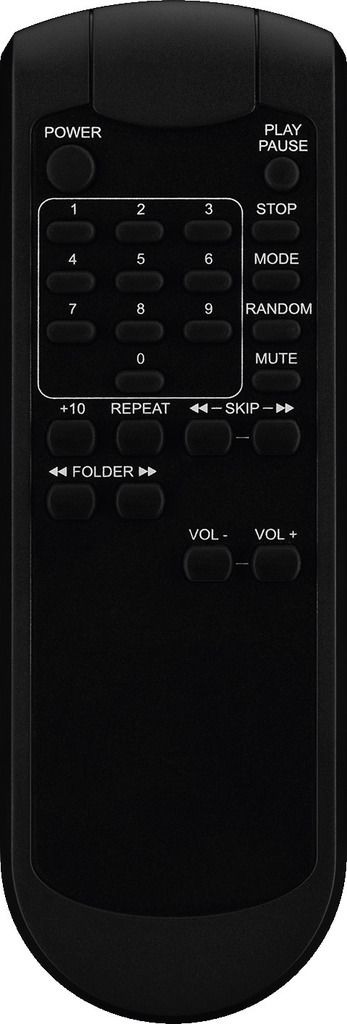

  • Supplied with infrared remote control
  • RCA cable DMP-12CC is available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description MP3 player insertion module
Media MP3, USB, SD, MMC
Frequency range 20-20,000 Hz
THD < 0.2%
Channel separation > 60 dB
S/N ratio > 75 dB
Output, analogue 500 mV
Power supply DC 12 V/150 mA
Operating voltage (possible alternative) DC 12 V
Power supply (possible alternative) DC 150 mA
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 22 x 58 mm
Weight 39 g
Connections 5-pin connector, connection cable
Packaging dimensions (W x H x L) 0.07 x 0.06 x 0.165 m
Gross weight 0.165 kg

Fisiere de descarcat

Fisa produsului DMP-102 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
