EDL-606EN

Cod EAN: 4007754238761

PA ceiling speaker, with EN 54-24 certification. 100 V transmission technology with 3 power taps 6/3/1.5 W Type 165 full range speaker with optimised voice reproduction Plastic cover with low mounting depth For a ceiling thickness from 5 to 22 mm Q...

Citeste mai mult

Intreaba despre produs
Cumpara acum

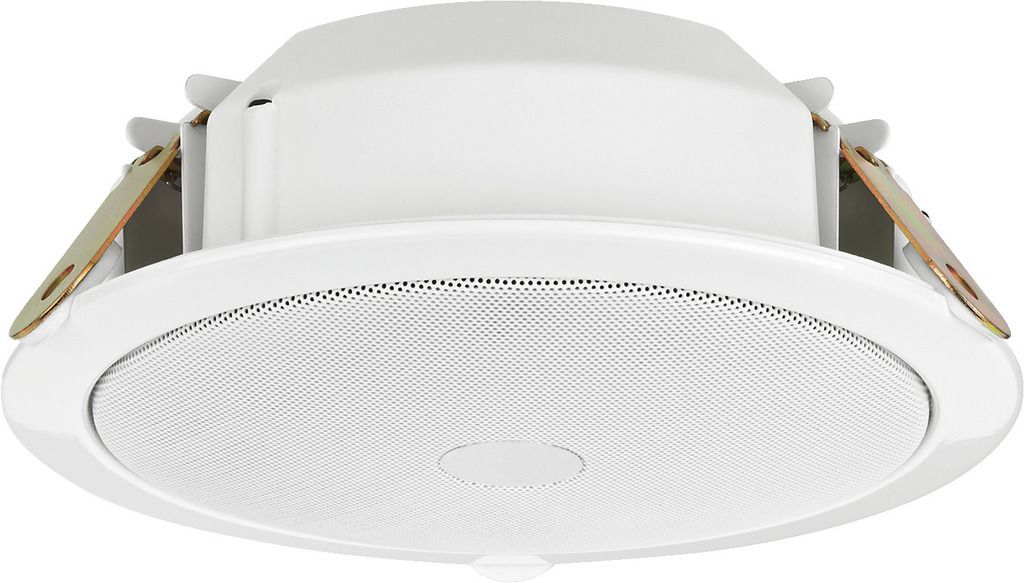

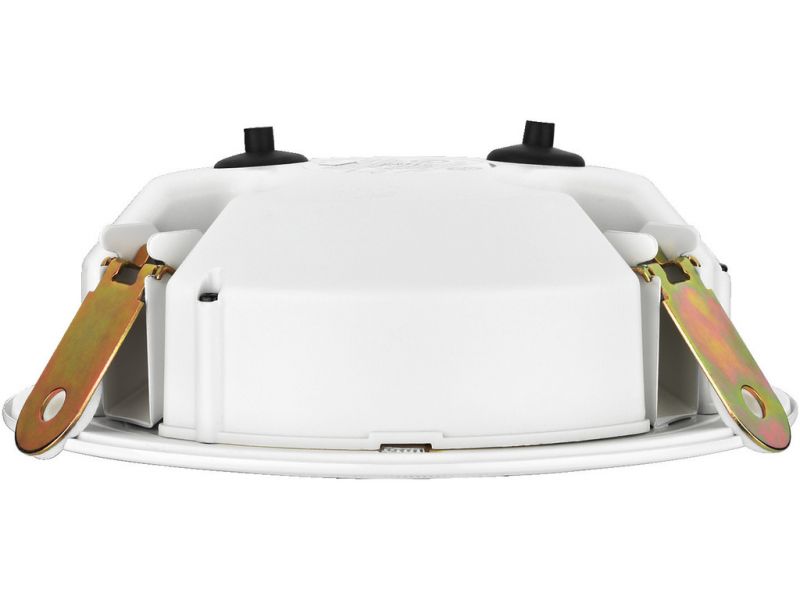

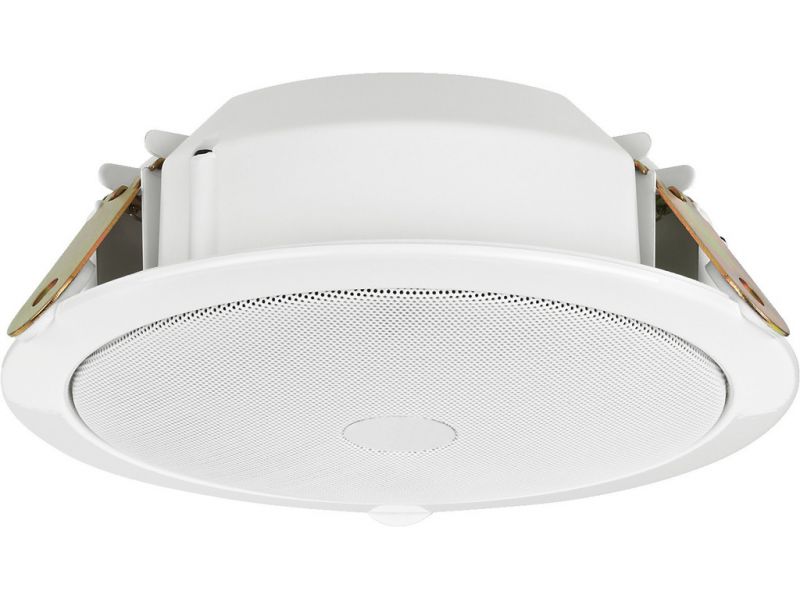

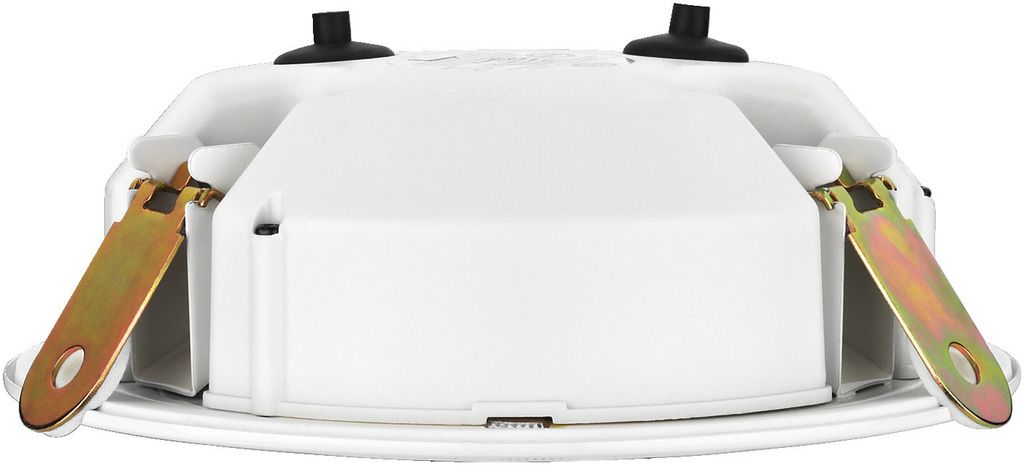

EDL-606EN

PA ceiling speaker,
with EN 54-24 certification.
  • 100 V transmission technology with 3 power taps 6/3/1.5 W
  • Type 165 full range speaker with optimised voice reproduction
  • Plastic cover with low mounting depth
  • For a ceiling thickness from 5 to 22 mm
  • Quick installation
  • Robust metal basket and protective grille
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 120-15,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 93 dB/W/m

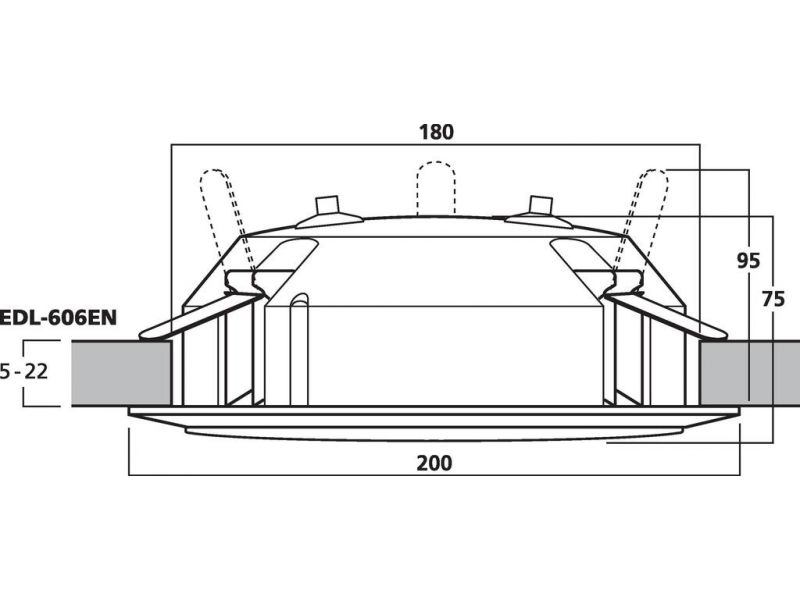

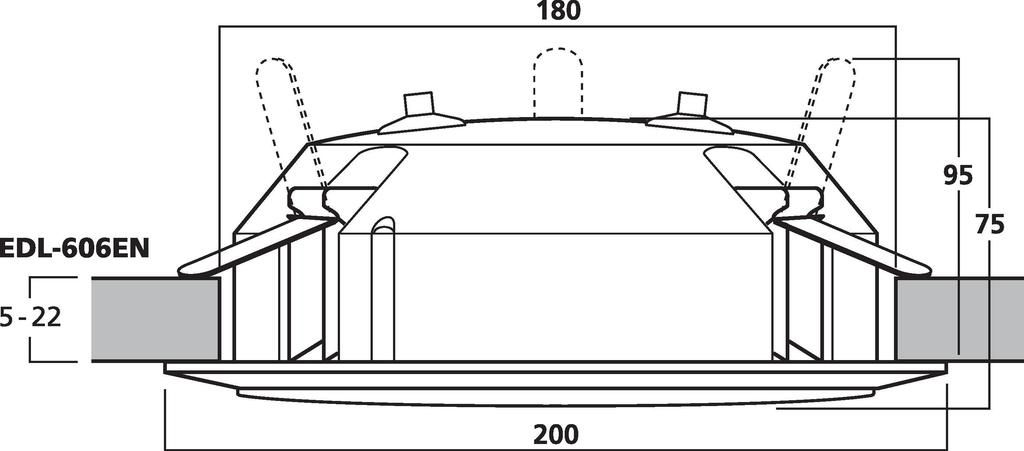

Mounting cutout Ø 180 mm
Mounting depth 60 mm
Dimensions Ø 200 mm x 70 mm
Outside diameter Ø 200 mm
Width Ø 200 mm
Height Ø 200 mm
Depth 70 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 880 g
Packing unit 1
Type of speaker 165
Packaging dimensions (W x H x L) 0.245 x 0.1 x 0.245 m
Gross weight 1.114 kg
Net weight 0.881 kg

Fisiere de descarcat

Fisa produsului EDL-606EN konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
