EX-40/4

Cod EAN: 4007754253726

Audio exciters/resonators, 20 W, 4 Ω (/4) or 8 Ω (/8) Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or...

Citeste mai mult

Intreaba despre produs
Cumpara acum

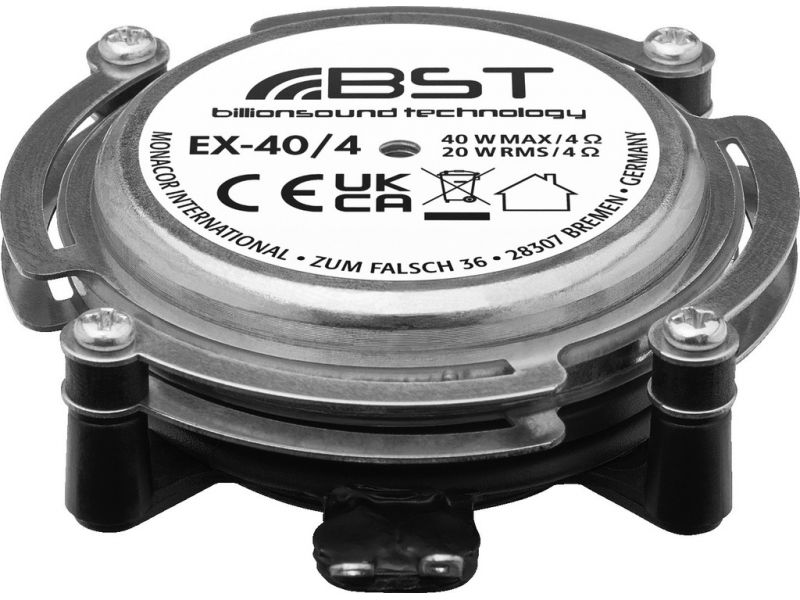

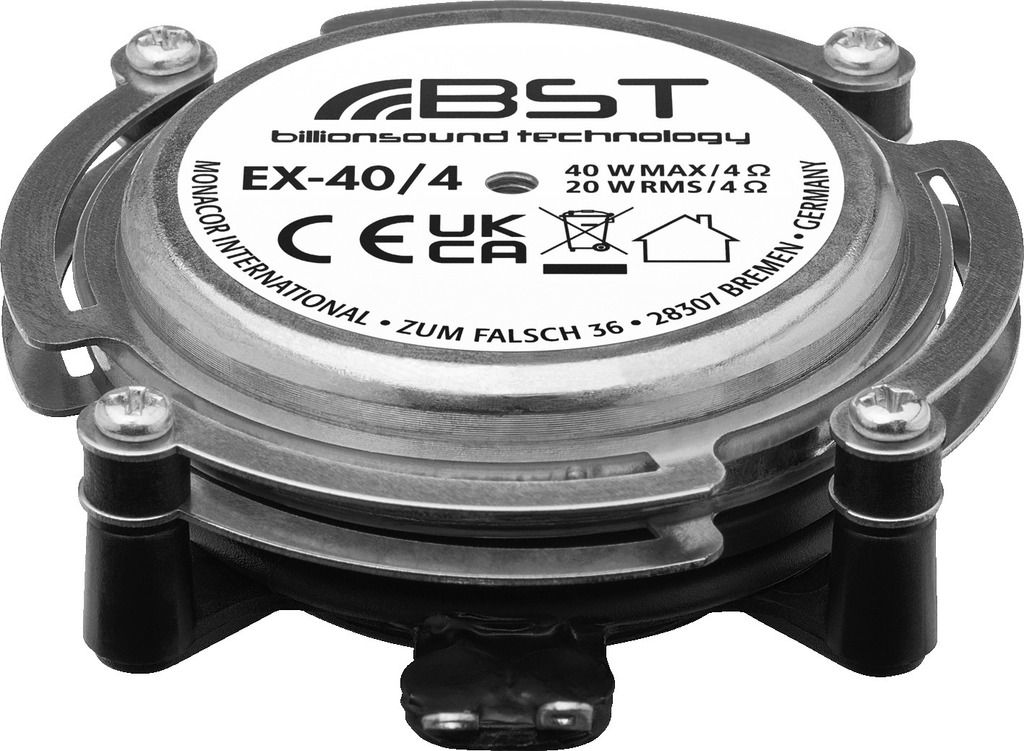

EX-40/4

Audio exciters/resonators, 20 W, 4 Ω (/4) or 8 Ω (/8)
Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces create an impressive sound in the entire surrounding area.
  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • Excellent sound quality
  • High power capability
  • Suitable for unobtrusive PA applications, e.g. at doors, cupboards, shelves, glass panels
  • Supplied with 3M adhesive pad
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable
Frequency range fx-20,000 Hz
Resonant frequency (fs) 300 Hz
Power rating (RMS) 20 W
Peak music power output (MAX) 40 W
Max. rated SPL no data
Voice coil diameter Ø 32 mm
Voice coil former Kapton

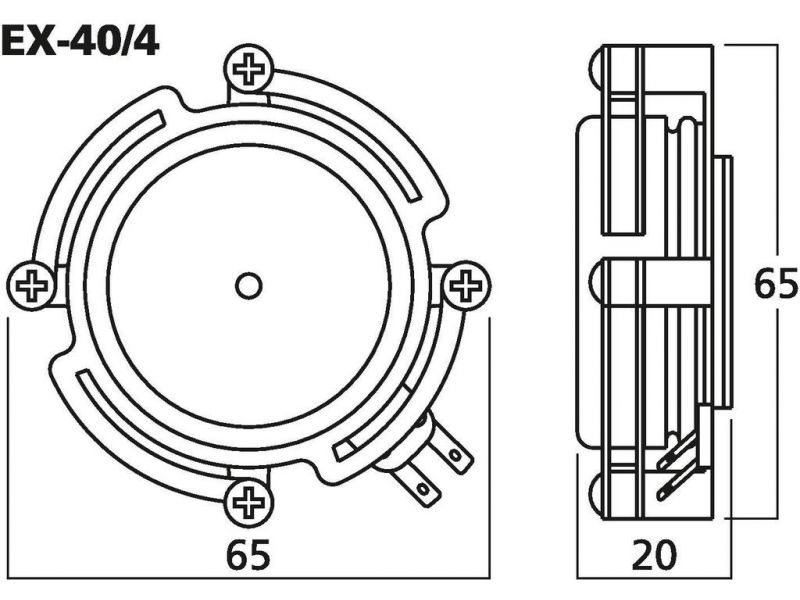

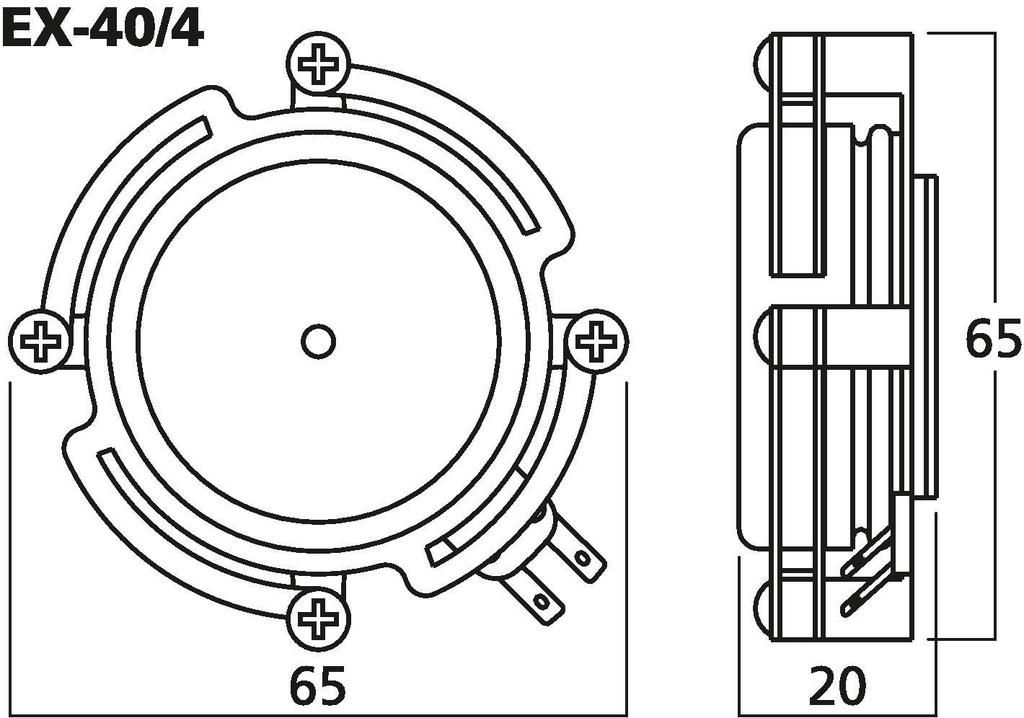

Dimensions Ø 61 mm x 20 mm
Outside diameter Ø 61 mm
Width 61 mm
Height 61 mm
Depth 20 mm
Colour black/silver
Admiss. ambient temp. 0-40 °C
Weight 0.129 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.08 x 0.033 x 0.08 m
Gross weight 0.144 kg
Net weight 0.129 kg

Fisiere de descarcat

Fisa produsului EX-40/4 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
