LSIP-120
Cod EAN 4007754060171
Air core coil, 1.2 mH, Ø 1.2 mm

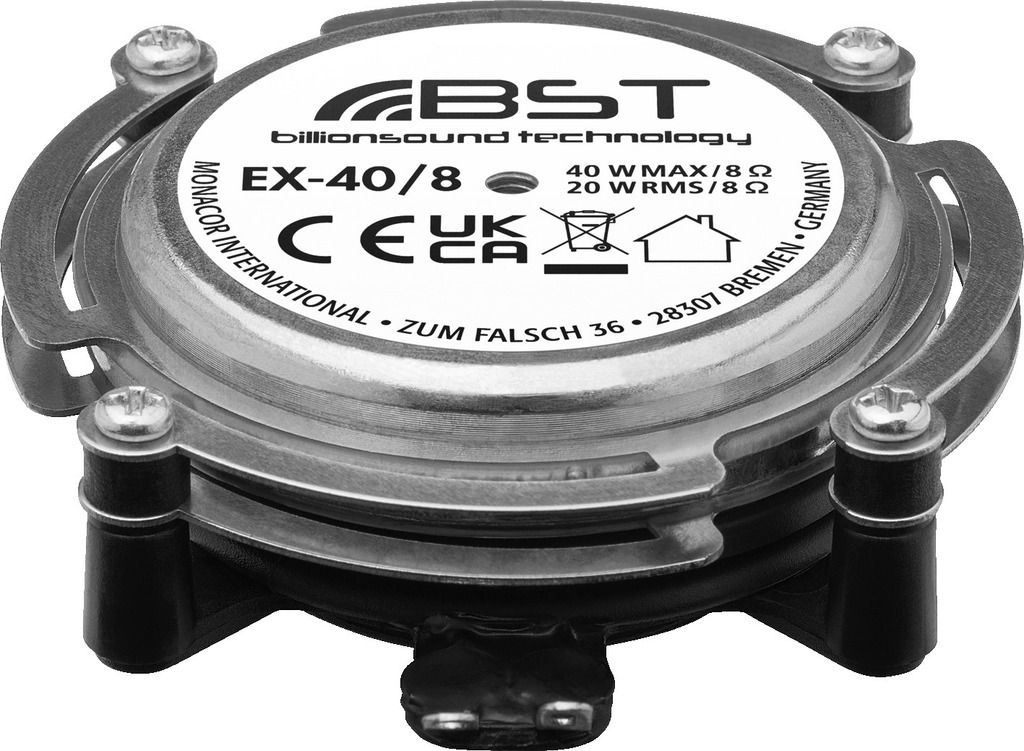

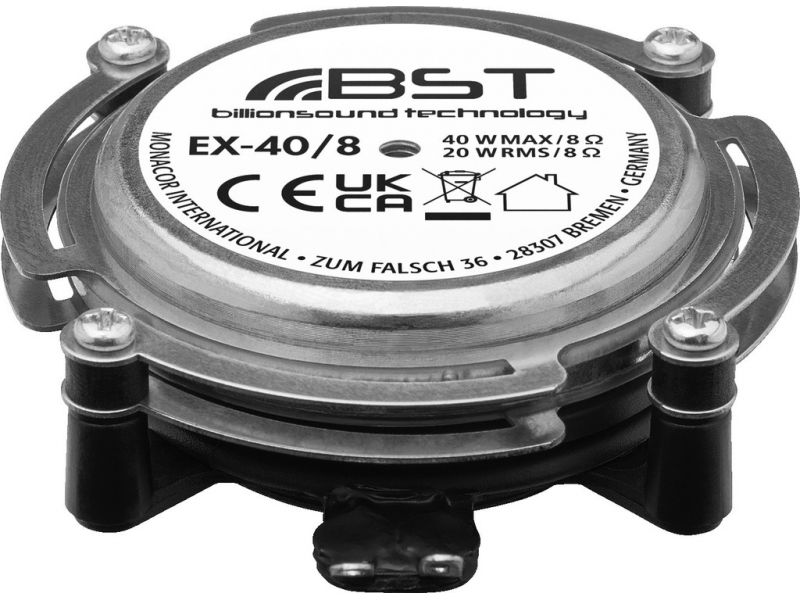

Audio exciters/resonators, 20 W, 8 Ω (/8) Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, closet doors, shelves, desktops, lightweight walls, ceiling panels or many other su...
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | fx-20,000 Hz |
| Resonant frequency (fs) | 300 Hz |
| Power rating (RMS) | 20 W |
| Peak music power output (MAX) | 40 W |
| Max. rated SPL | no data |
| Voice coil diameter | Ø 32 mm |
| Voice coil former | Kapton |

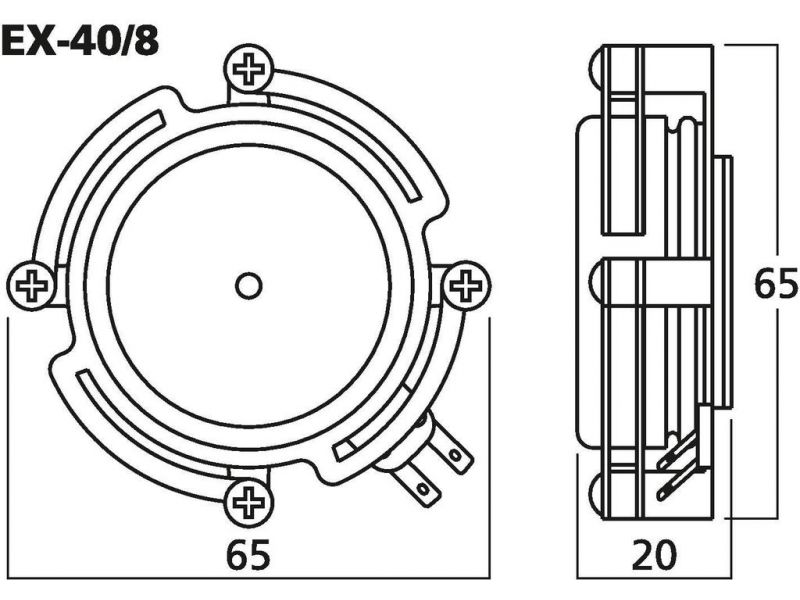

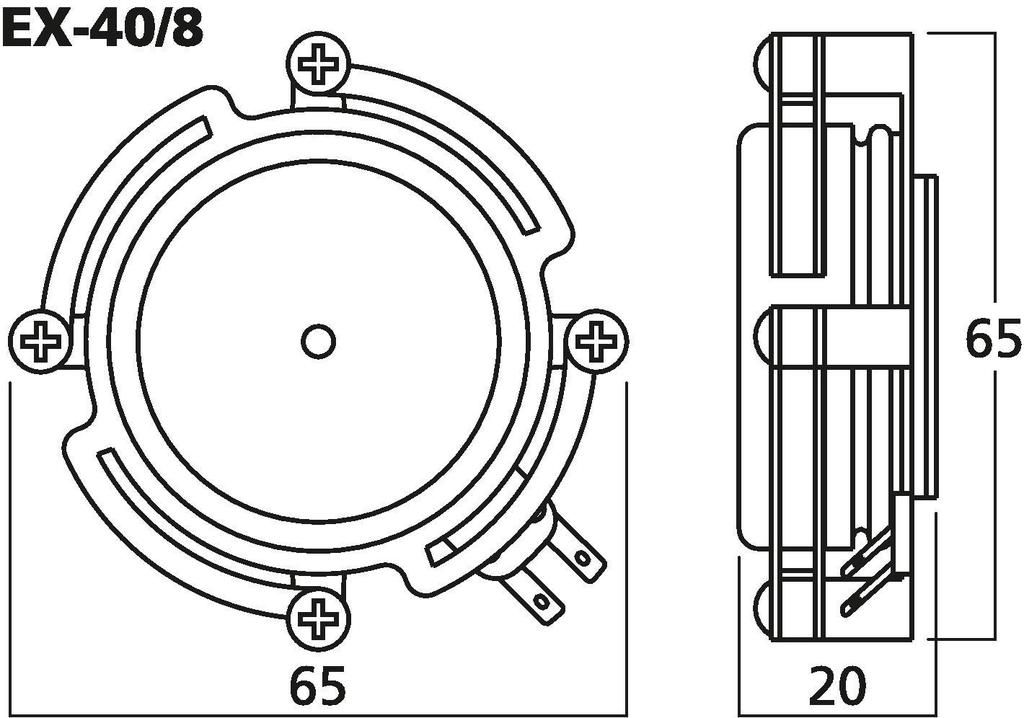

| Dimensions | Ø 61 mm x 20 mm |
| Outside diameter | Ø 61 mm |
| Width | 61 mm |
| Height | 61 mm |
| Depth | 20 mm |
| Colour | black/silver |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.129 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.08 x 0.035 x 0.08 m |
| Gross weight | 0.144 kg |
| Net weight | 0.129 kg |
