LSI-82T

Cod EAN: 4007754066913

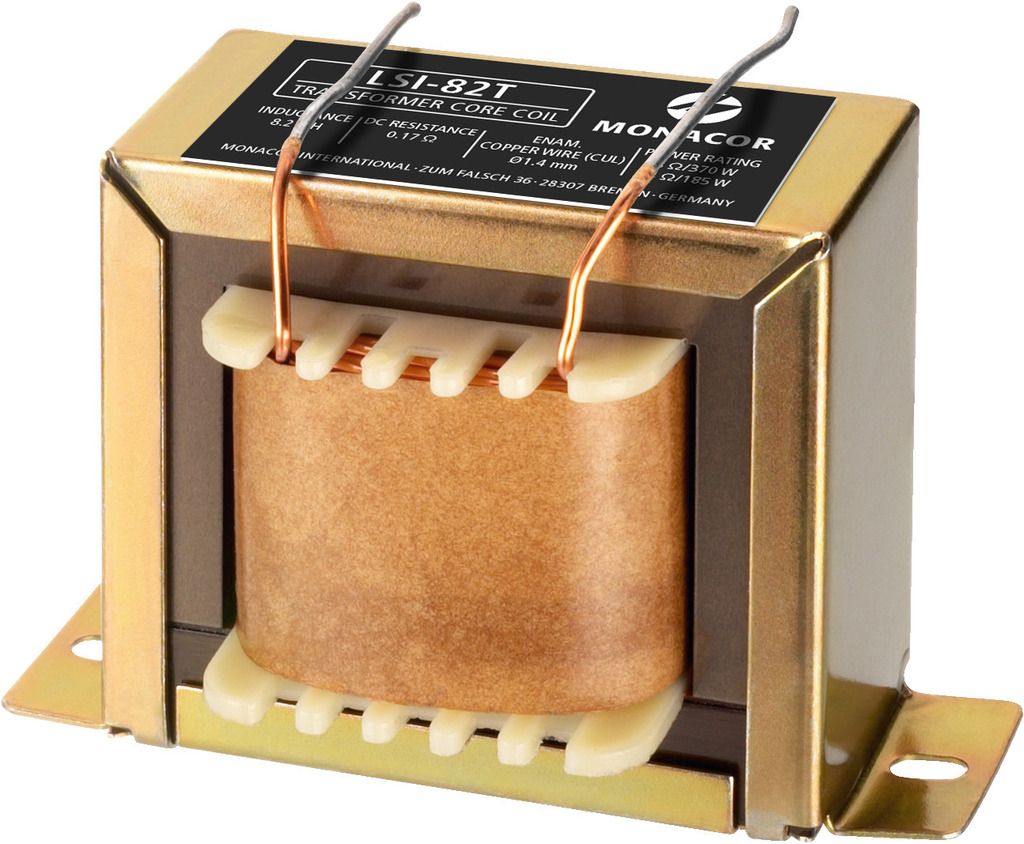

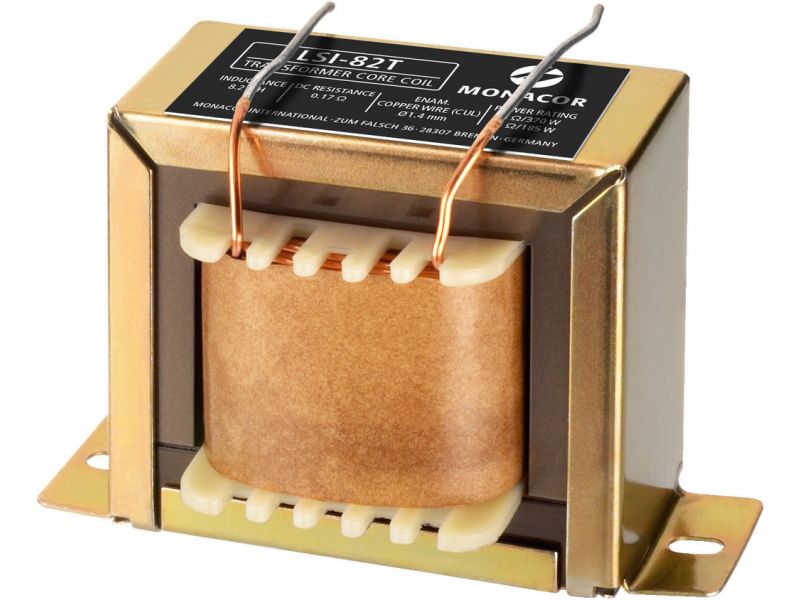

Transformer core coil, 8.2 mH High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.



LSI-82T

Transformer core coil, 8.2 mH
High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

Parametrii

Description transformer core coil
Nominal value 8.2 mH
Power rating 370 W/185 W
Enam. copper wire

(CUL)

Ø 1.4 mm
DC resistance 0.17 Ω
Saturation current

(50 Hz)

6.8 A
Packing unit 1
Dimensions 68 x 58 x 55 mm (EI-66)
Weight 937 g
