PA-5480

Cod EAN: 4007754171112

5-zone mono PA mixing amplifier 1 x 480 W 5 zones, can be controlled individually Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable) Bass, treble a...

Citeste mai mult

Intreaba despre produs
Cumpara acum

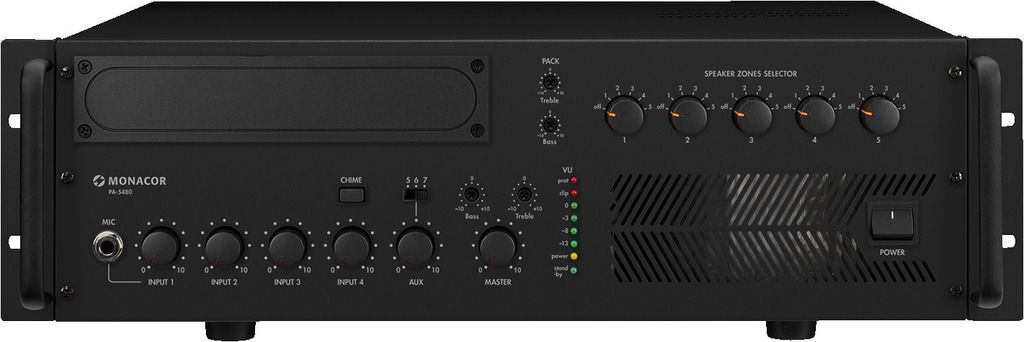

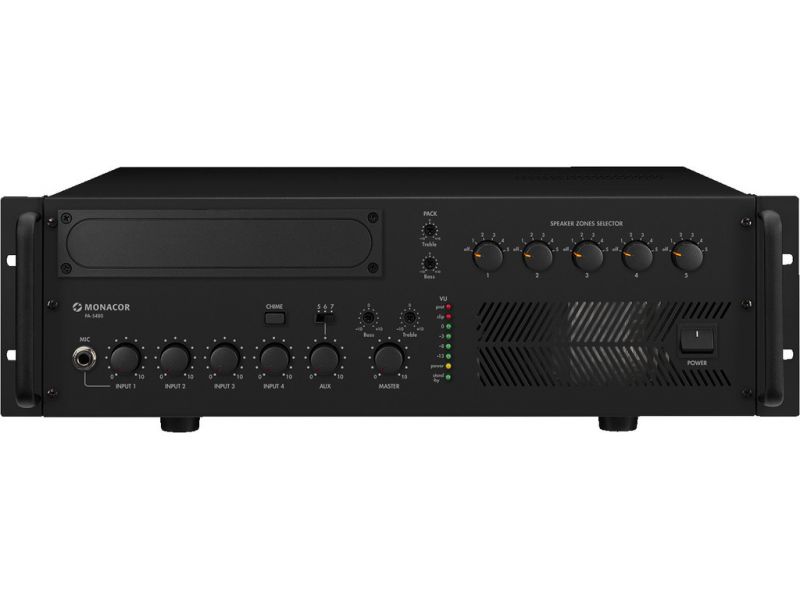

PA-5480

5-zone mono PA mixing amplifier
  • 1 x 480 W
  • 5 zones, can be controlled individually
  • Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, level display via LEDs, regulated fan
  • Insertions for various functions are available at option
  • 18 V phantom power for electret microphones
  • Connection for desktop microphone PA-5000PTT
  • Alarm announcement with insertion PA-1120DMT (available at option)
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Peak output power 680 W
Power rating 480 W
Power rating at 8 Ω 480 W
Power rating at 100 V 480 W
Power rating at 70 V 480 W
Channels 5
Zones 5
Inputs 2.5 mV/2 kΩ (mic 1), 2.5 mV/2 kΩ, 0.3 V/200 kΩ (mic/line 2-4), 0.3 V/5 kΩ (line 5-7), 0.775 V/10 kΩ (preamplifier)
Frequency range 55-16,000 Hz
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 70 dB (mic), > 80 dB (line)
THD < 1%
Phantom power 18 V
Power supply ˜ 230 V/50 Hz/1,500 VA, DC  24 V/40 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,500 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 40 A
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 352 mm
Rack units, RU 3
Weight 17 kg

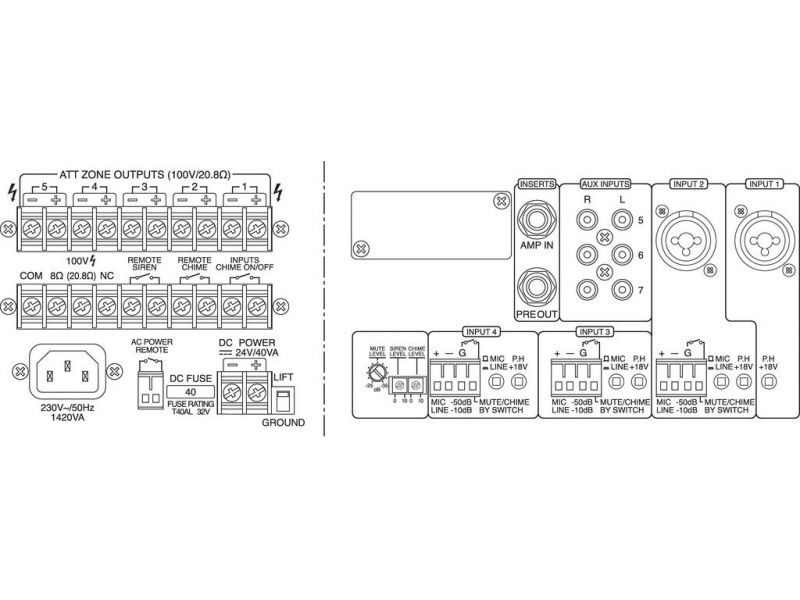

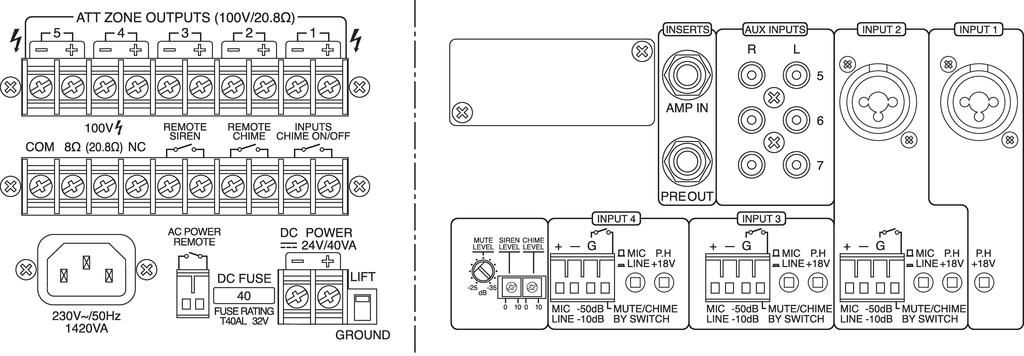

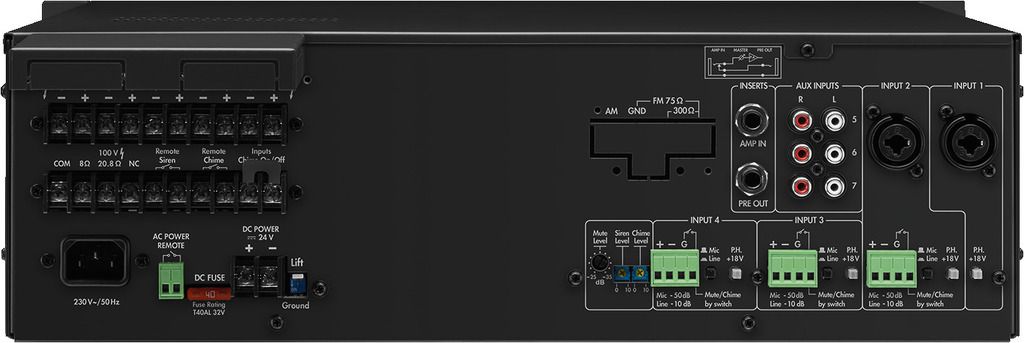

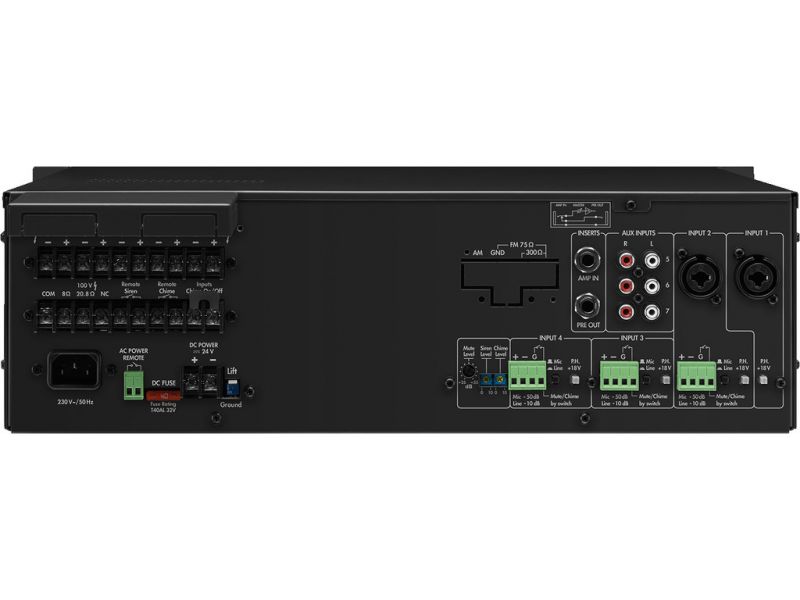

Connections 1 x 6.3 mm jack (mic), 2 x combo 6.3 mm/XLR (mic/line), 3 x RCA L/R (line), 3 x plug-in terminals (line), 1 x 6.3 mm jack (preamplifier input), screw contacts (push-to-talk mic), screw contacts (zone paging mic), 1 x 6.3 mm jack (preamplifier output), screw contacts (chime button), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.55 x 0.22 x 0.48 m
Gross weight 19.76 kg
Net weight 17.62 kg

Fisiere de descarcat

Fisa produsului PA-5480 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare Manual de utilizare pdf-zeichnung
