PA-928D

Cod EAN: 4007754275797

Mono class D PA mixing amplifier 1 x 280 W Class D concept with PASCAL amplifier module Energy-efficient concept due to high efficiency Lightweight design due to compact switch-mode power supply Silent operation due to fanless cooling concept 4 balan...

Citeste mai mult

Intreaba despre produs
Cumpara acum

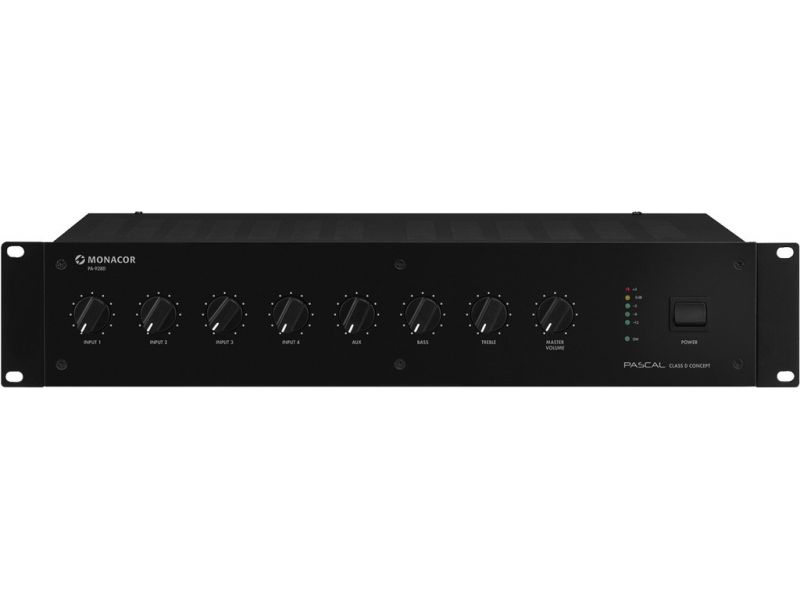

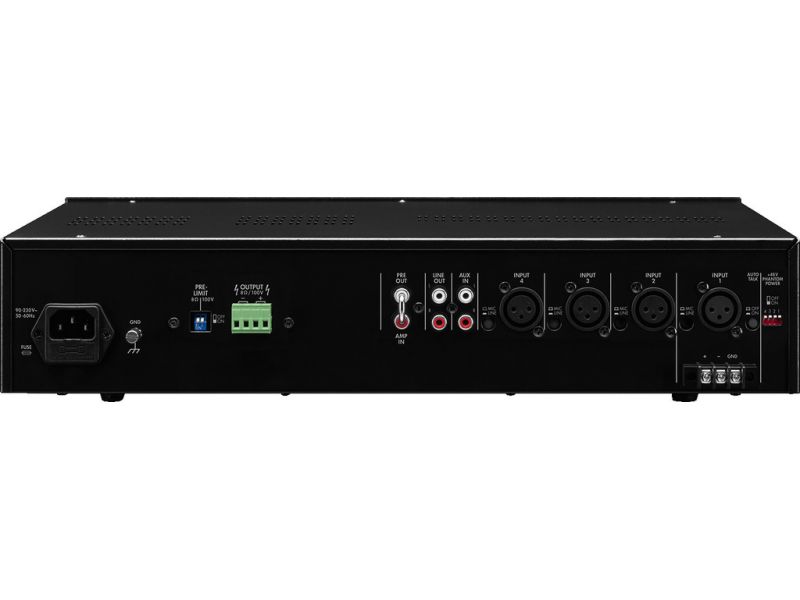

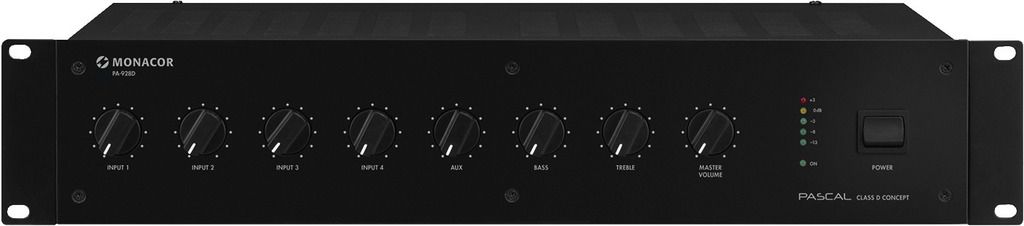

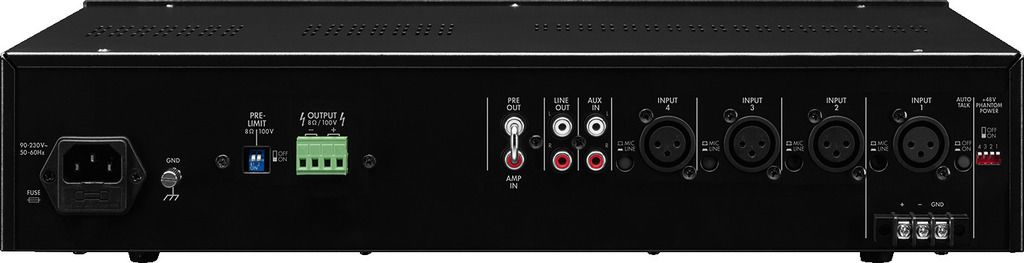

PA-928D

Mono class D PA mixing amplifier
  • 1 x 280 W
  • Class D concept with PASCAL amplifier module
  • Energy-efficient concept due to high efficiency
  • Lightweight design due to compact switch-mode power supply
  • Silent operation due to fanless cooling concept
  • 4 balanced mic/line inputs
  • Mic 1 with priority circuit and automatic talkover
  • Additional connection for desktop microphone via screw terminal
  • 1 aux input
  • Speaker outputs via screw contacts
  • Line output
  • Insert facility, e.g. for effect units, equalizers, feedback controllers
  • Input level control and output level control
  • 2-way tone control for the output
  • 48 V phantom power supply for each microphone input, to be activated individually
  • Limiter switch 8 Ω/100 V
  • Removable mounting brackets

Parametrii

Peak output power 280 W
Power rating 280 W
Power rating at 8 Ω 280 W
Power rating at 100 V 280 W@33 Ω
Output impedance 8 Ω
Channels 5
Inputs 3 mV (mic), 200 mV (line), 140 mV (aux)
Frequency range 20-20,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 80 dB
THD < 0.1%
Phantom power 48 V
Power supply ˜ 90-230 V/50-60 Hz/300 VA
Mains voltage ~ 90-230 V
Mains frequency 50-60 Hz
Power consumption, operation 300 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 88 mm
Depth 275 mm
Rack units, RU 2
Weight 5.2 kg

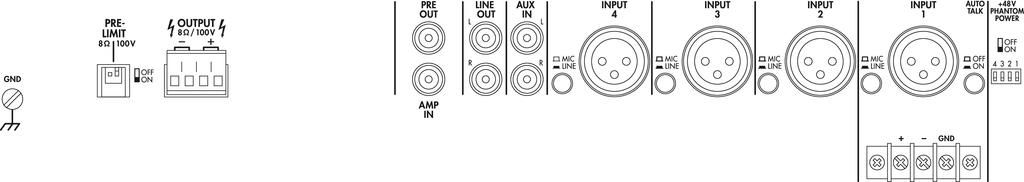

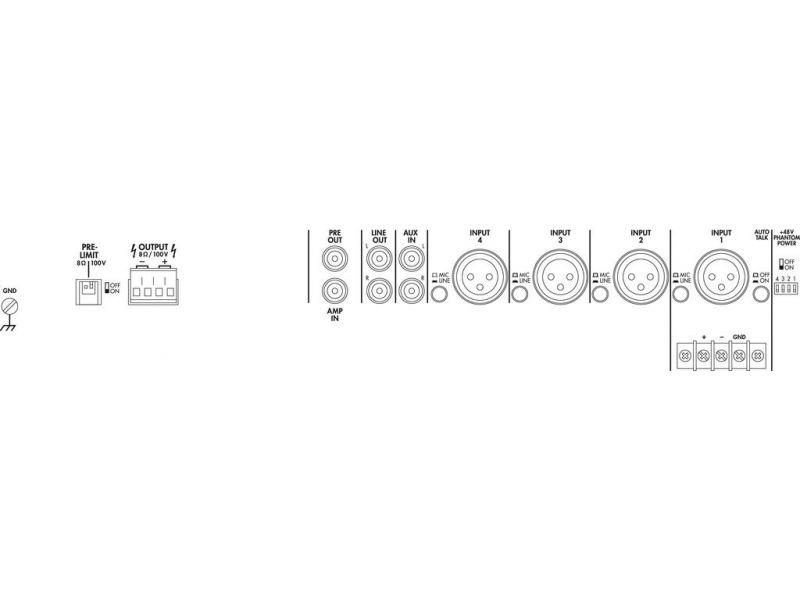

Connections 4 x XLR (mic/line), 1 x RCA L/R (aux), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.5 x 0.13 x 0.35 m
Gross weight 6.14 kg
Net weight 5.19 kg

Fisiere de descarcat

Fisa produsului PA-928D konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
